Summary of Contents for Assa Abloy EMTEK EMPowered Motorized Smart Lock Upgrade Deadbolt

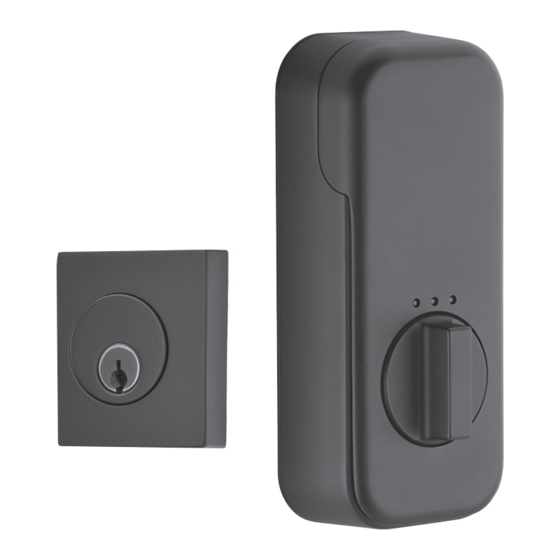

- Page 1 EMPowered™ Motorized Smart Lock Upgrade - Connected by August Deadbolt Download and install Home app...
- Page 2 What’s in the box ITEM NO. DESCRIPTION QTY. ITEM NO. DESCRIPTION QTY. EMPower Unit Deadbolt Screw Guide Deadbolt Trim August Module Deadbolt Extension Collar Battery Cover Deadbolt Cylinder AA Batteries #8 x 3/4” Wood Screws M4-0.7 x 8mm Machine Screws Deadbolt Strike Plate Interior Escutcheon #10-32 x 2-1/8”...
- Page 3 Door Prep 2-3/8" 2-3/4" 1/8” Deep 1" Dia Edge Bore 2 1 4 " 2-1/8" Dia. Bore 1" Door Jamb Prep 1-1/8" 2 3 4 "...
- Page 4 Install Latch Note: Use only the supplied latch for proper functionality.
- Page 5 Install Lock Cylinder Must use screw guide Extension Collar required for thin doors...
- Page 6 Remove Battery Cover Loosen screw on bottom to remove cover.
- Page 7 Install Interior Mounting Plate...
- Page 8 Check Interior Mounting Plate Alignment Center tail piece in mounting plate hole before tightening.
- Page 9 Install Interior Escutcheon Bolt must be in retracted (unlocked) position...
- Page 10 Testing Operation...
- Page 11 Install Batteries Bolt must be in retracted (unlocked) position before installing batteries.
- Page 12 Handing the Lock To hand the lock, press the button until you hear one beep...
- Page 13 Go to the August App to Complete Installation Set Up a Device - EMTEK SMART LOCK SET UP A LOCK SET UP AN EMTEK SET UP MY FIRST DEVICE CONNECTED BY AUGUST SMART LOCK...
- Page 14 Installing DoorSense with Connected by August Locks - Surface Mount Option DoorSense Mounting DoorSense Mounting Cover Screws Housing Tape 1-1/2” 1. Determine mounting location 1-1/2” 3-1/2” 3-1/2”...
- Page 15 Installing DoorSense with Connected by August Locks - Surface Mount Option 2. Attach mounting tape then screw into frame 3. Go to the August app to calibrate your Lock...
- Page 16 Installing DoorSense with Connected by August Locks - Flush Mount Option DoorSense DoorSense Housing 1. Remove magnet from housing and place DoorSense onto the magnet...
- Page 17 Installing DoorSense with Connected by August Locks - Flush Mount Option 2. Drill hole and Insert DoorSense 5/8” Diameter 1/2” Deep 3-1/2” 3-1/2” 3. Go to the August app to calibrate your Lock...
- Page 18 Go to the August App to Complete Installation Set Up a Connect Hub GO TO MENU SET UP A DEVICE SET UP A CONNECT...
- Page 19 Install Cover Secure cover by tightening screw on bottom.
- Page 20 Hardware Troubleshooting Cycle lock in both the locked and unlocked positions. If problems are found: Symptom Suggested Action Door is binding • Check that door and frame are properly aligned and door is free swinging. • Check hinges: They should not be loose or have excessive wear on knuckles.
- Page 21 Programming Troubleshooting Symptom Suggested Action Lock does not respond • Check batteries are installed and oriented correctly - door is open and (polarity) in the battery case. accessible. • Check batteries are in good condition; replace batteries* if discharged. Lock does not respond •...
- Page 22 Resetting Lock to Factory Default When lock is reset to factory defaults, all programming features are reset to original default settings (see below). 1. Remove battery cover and batteries. 2. Remove the interior escutcheon to access the reset button. 3. The reset button (see image) is located beside the PCB cable connector.
- Page 23 Compliance FCC INTERFERENCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 24 IN4-EMPWRADPT REV 19A 11-05-19 Copyright © 2019, EMTEK Products, Inc. an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of EMTEK Products, Inc. is prohibited. WARNING: This product can expose you to chemicals including lead, which is known to the state of California to...
