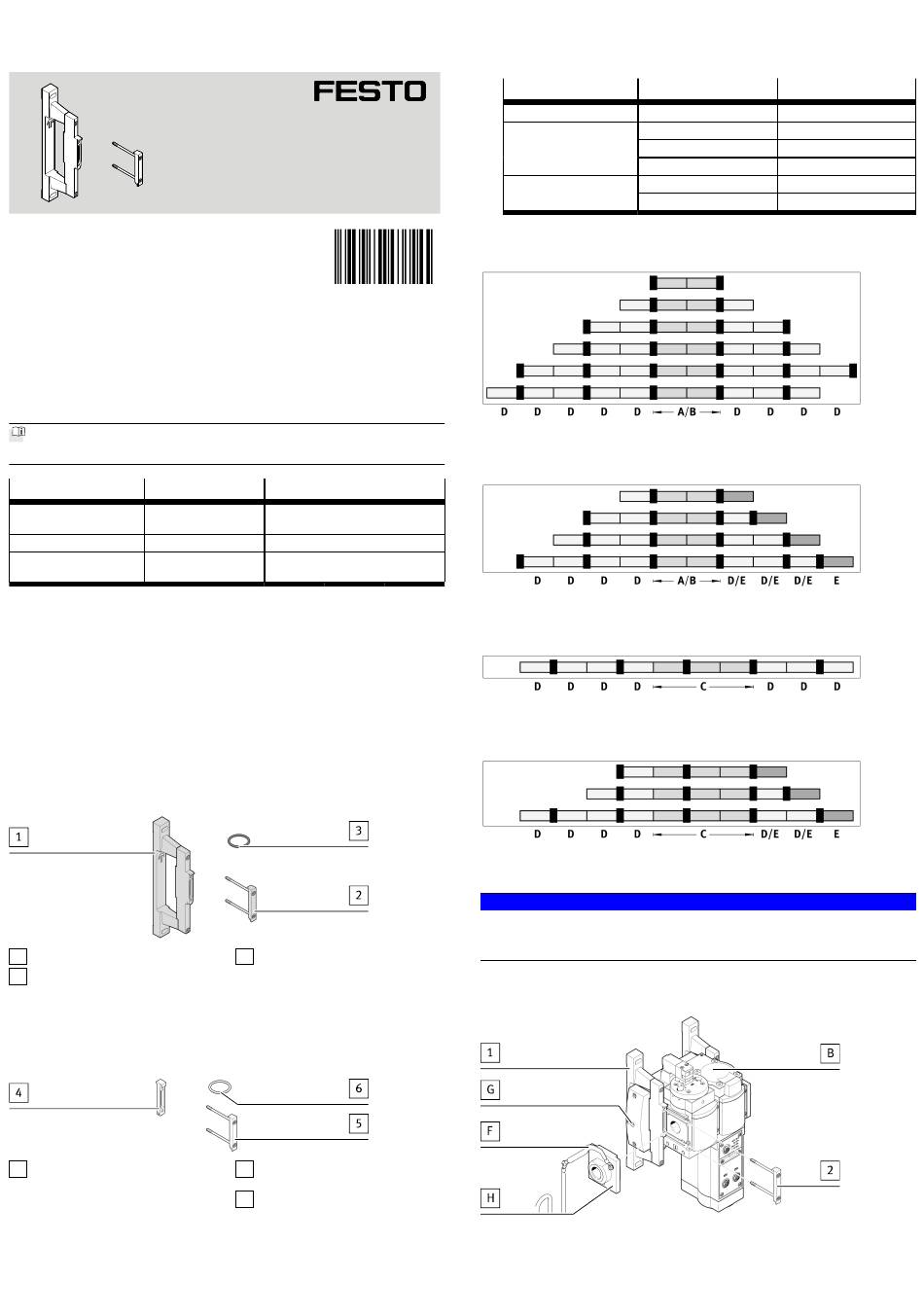

Festo MS6-WPG Instructions & Assembly

MS6-WPG
Wall mounting-Set
Instructions | Assembly
8105041
2019-01b
[8105043]
Translation of the original instructions
1 Applicable documents
All available documents for the product è www.festo.com/pk.
Document Product
Instructions MSE6-C2M
Instructions MSE6-D2M
Description MSE6-E2M
Tab. 1
2 Safety
2.1 Safety instructions
– Only assemble the product on components that are in a condition to be safely
operated.
2.2 Intended use
Wall mounting of maintenance device modules and service unit
3 Product range overview
3.1 Scope of delivery
Wall mounting kit MS6-WPG:
1 Wall mounting (1x)
2 Module connector (1x)
Fig. 1
3.2 Not in scope of delivery
Module connector MS6-MV-EX:
4 Module connector (1x)
(rear)
Fig. 2
Festo AG & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
8105041
Contents
Operating, Control and Condition Monit-
oring Module
Operating, Energy Efficiency Module
Assembly, Installation, Commissioning,
Energy Efficiency Module
3 O-ring (1x)
5 Module connector (1x)
(front)
6 O-ring (1x)
4 Mounting
4.1 Mounting positions
• Depending on the configuration, mount the wall mounting kit between the fol-
lowing service units and the service device modules.
Product Type
Wall mounting kit MS6-WPG
Service unit MSE6-D2M
MSE6-E2M
MSE6-C2M...(-M)
Service device module MS6-...
MS6-SV-D
Tab. 2
4.1.1 Positions with service unit [A]/[B] and modules [D]
Fig. 3
4.1.2 Positions with service unit [A]/[B] and modules [D]/[E]
Fig. 4
4.1.3 Positions with service unit [C] and modules [D]
Fig. 5
4.1.4 Positions with service unit [C] and modules [D]/[E]
Fig. 6
4.2 Assembly
NOTICE!
Incorrect electromagnetic compatibility if incorrect module connectors are moun-
ted.
• Use only module connector MS6-MV-EX.
Mounting with example of MSE6-E2M [B]:
Fig. 7
1. Remove earth cable [F] from earth terminal [G].
2. Remove module connector 2 from the wall mounting 1.
3. Remove sub-base [H] from the service unit [B].
Mounting position
black box
[A]
[B]
[C]
[D]
[E]
