4.6 Status
On the Status page, you can view the most current information about
your Router which will be continuously refreshed per 10 seconds,
such as Host Name, Domain, PPPoE Login, LAN/WAN and DDNS
Status. Different configuration may bring you to different data,
compared in FIGURE 3-16 and FIGURE 4-17.
Note :
If you want to change the configuration, go to the Setup page. For detailed
instructions, see Setup.
If you have enabled the PPPoE Login, the Status page will display
as illustrated in FIGURE 4-16:

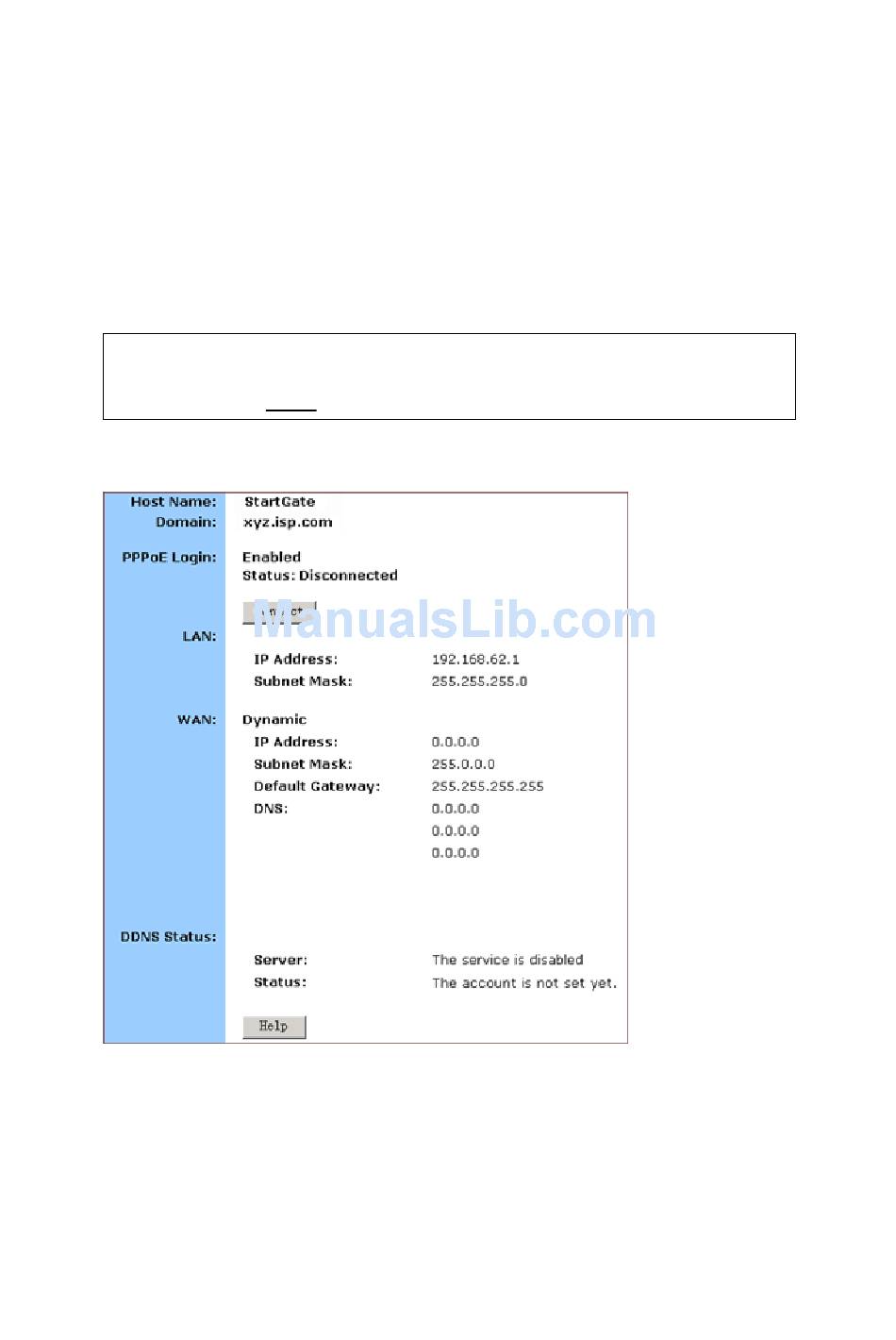

FIGURE 4-16: Status Page with PPPoE Login Enabled
If you have chosen the Dynamic IP and disabled PPPoE Login, the
Status page will display as illustrated in FIGURE 4-17:
33
