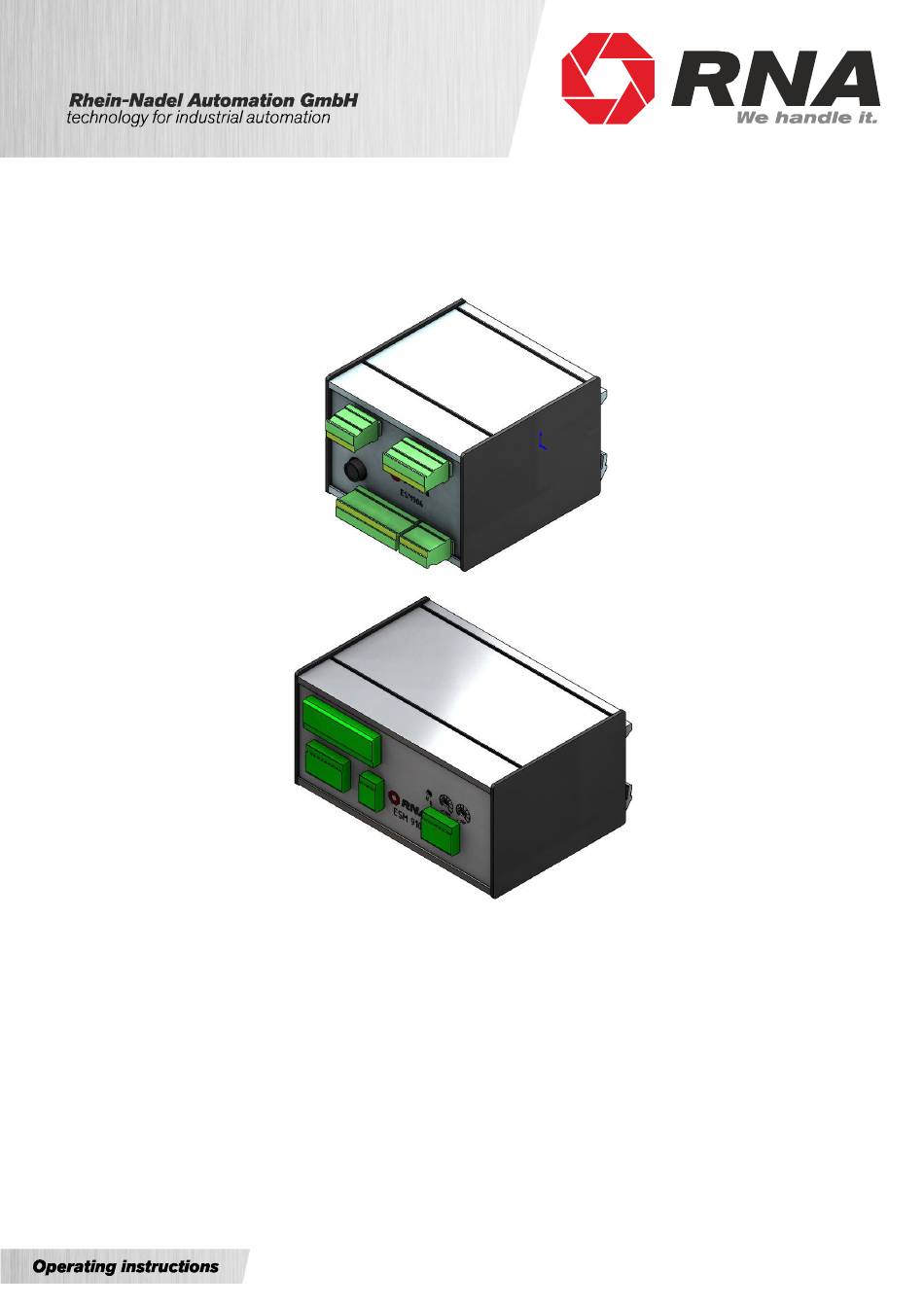

- Page 1 Operating Instructions Control Units of Modular Design ESM 906 ESM 910...
-
Page 2: Table Of Contents
Table of Contents About this document ......................4 Safety directives ........................4 2.1. Design of safety directives ....................4 2.2. Fundamental safety directives ..................4 2.3. Personnel ......................... 4 2.4. Intended use ........................5 2.5. Residual hazards ......................5 2.6. Device .......................... - Page 3 Declaration of Conformity According to the Low-Voltage Directive 2014/35/EU and Electromagnetic Compatibility Directive 2014/30/EU We hereby declare that the product meets the following requirements: Low-Voltage Directive 2014/35/EU Electromagnetic Compatibility Directive 2014/30/EU Applied harmonised standards: DIN EN 60204 T1 EN 61439-1 Remarks: Rhein-Nadel-Automation ---------------------------------...
-
Page 4: About This Document
1. About this document Attention Read this document carefully and observe the safety directives before commencing any work. Document description: This document provides assistance in choosing your product. You will also find information on mechanical and electrical installation, operation, product extensions and accessories. Non-observance may cause trouble with the product or the environment, reduce the product lifetime or lead to other damage. -
Page 5: Intended Use
Use of the product in living areas may lead to EMC disturbance. The user is responsible for tak- ing interference suppression measures. • They are optimised for operation of RNA bowl feeders and linear feeders. Observe the limits in- dicated in the technical specification. Attention! •... -
Page 6: Degree Of Protection - Protection Of Persons And Equipment
When the enable signal is present as well, ‘ACTIVE’ status is valid. The ESM 906 module is provided with a 10 A high-speed miniature fuse (5x20 mm) which is accessible through the front panel. This fuse is intended for short-circuit protection of the internal semiconductor only. -
Page 7: Type Information And Technical Data
5.1. Modes of operation RNA vibratory drive systems employ mechanical spring vibrators which are set to a vibrating frequency near the mains frequency or near double mains frequency depending on weight and/or size. This is why two modes of operation are possible:... - Page 8 The vibratory drive operates at mains frequency (50 resp. 60 Hz). Mode 2: Symmetric full-wave mode: The vibrating drive operates at double the mains frequency (100 resp. 120Hz). For the user’s convenience, the magnets of the RNA drives are colour-coded: Mode 1: Mode 2: black...
-
Page 9: Connection Diagram
6. Connection diagram 230V, 50/60Hz supply connection (110 V, 50/60 Hz) Status messages External setpoint Drive max. 6A Potentiometer Floating (setpoint selection) START contact 24V start signal Vibratory feeder 230V, 50/60Hz supply connection (110 V, 50/60 Hz) External setpoint Drive max. -
Page 10: Dimensioned Drawing
7. Dimensioned drawing Width Height Depth ESM906 Width Height Depth ESM910 Rhein-Nadel Automation GmbH 03/25 VT-BA-ESM906-910-EN_2025.docx... - Page 11 08970 Sant Joan Despi (Barcelona) Phone +49 9621-917096-0 Spain info@fsa-amberg.de Phone +34 93-377-7300 www.fsa-amberg.com info@vibrant-rna.com www.vibrant-rna.com Further manufacturing sites of the RNA Group Lüdenscheid site Rhein-Nadel Automation GmbH Nottebohmstraße 57 D-58511 Lüdenscheid Phone +49 2351-41744 werk.luedenscheid@rna.de Ergolding site Rhein-Nadel Automation GmbH Ahornstraße 122...
