- Page 1 Operating instructions Control units for oscillating drives ESG 1000 Rhein-Nadel Automation GmbH Rhein - Nadel Automation GmbH 19.09.2012 VT-BA Typ ESG 1000 GB...
- Page 2 Herewith we declare that the product complies with the following provisions: Low voltage directive 2014/35/EU EMC directive 2014/30/EU applied harmonized standards: DIN EN 60204 T1 EN 61439-1 remarks: Rhein-Nadel-Automation -------------------------------- Managing Director Jack Grevenstein Rhein - Nadel Automation GmbH 14.04.2014 VT-BA Typ ESG 1000 GB...

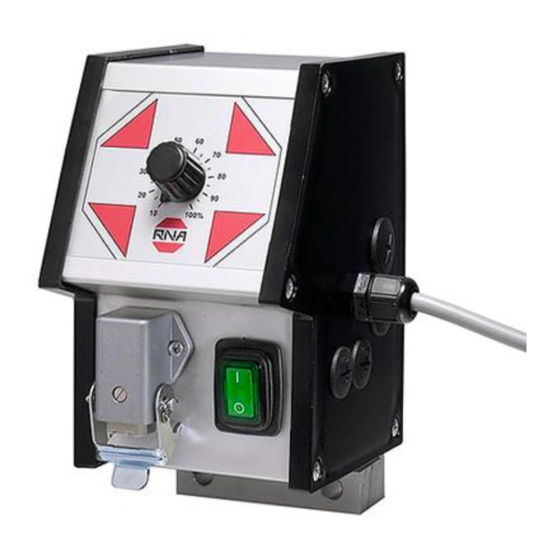

- Page 3 1.1 Functional description The compact design of the control unit can supply all RNA-control units up to a load current of 6 ampere. It is intended for individual installation directly at the oscillating drive and completely pluggable. The correcting range for the potenti-...
- Page 4 Explanations on the term OPERATING MODE RNA - Oscillating drives are mechanical spring vibrators, which, according to weight and/or size, are adjusted to an os- cillating frequency near the mains frequency. Two operating modes are possible: 1.
- Page 5 The measuring device must be designed for real effective measurement. (True-RMS), other measuring devices indicate random values. The load plug must be plugged in, as otherwise the measurement possibly Rhein - Nadel Automation GmbH 14.04.2014 VT-BA Typ ESG 1000 GB...
- Page 6 At the trimmer SOFT START the run-up time can be adjusted. As the case must be opened for this change as well, the safety notes mentioned above should be ober- served. Rhein - Nadel Automation GmbH 14.04.2014 VT-BA Typ ESG 1000 GB...
- Page 7 10 and 30 volt direct current in correct polarity. The input is protected against faulty polarity. The use of an optocoupler in the control unit makes the input potential-free and allows the installation with unscreened cables of nearly any length. Here too high-energy interferences should be avoided Rhein - Nadel Automation GmbH 14.04.2014 VT-BA Typ ESG 1000 GB...
- Page 8 Scale Drawing Connecting Diagram Rhein - Nadel Automation GmbH 14.04.2014 VT-BA Typ ESG 1000 GB...
- Page 9 Internet: www.rna-uk.com E-mail: rna@rna-uk.com Vibrant S.A. Pol. Ind. Famades C/Energia Parc 27 E - 08940 Cornella Llobregat (Barcelona) Tel (+34) 093/377-7300 Fax (+34) 093/377-6752 Internet : www.vibrant-rna.com E-mail: info@vibrant-rna.com Rhein - Nadel Automation GmbH 14.04.2014 VT-BA Typ ESG 1000 GB...
