Fine Manual Calibration
1. Setting nozzle height.
2. Setting compensation values.
Open: Menu - 3D Print - Platform Calibrate
1. Protocol for setting nozzle height:
1
Initialize printer
Put a print paper on the platform.
2
Open the calibration interface and
press the UP key, note the current
height value, stop the platform at
about 190.
3

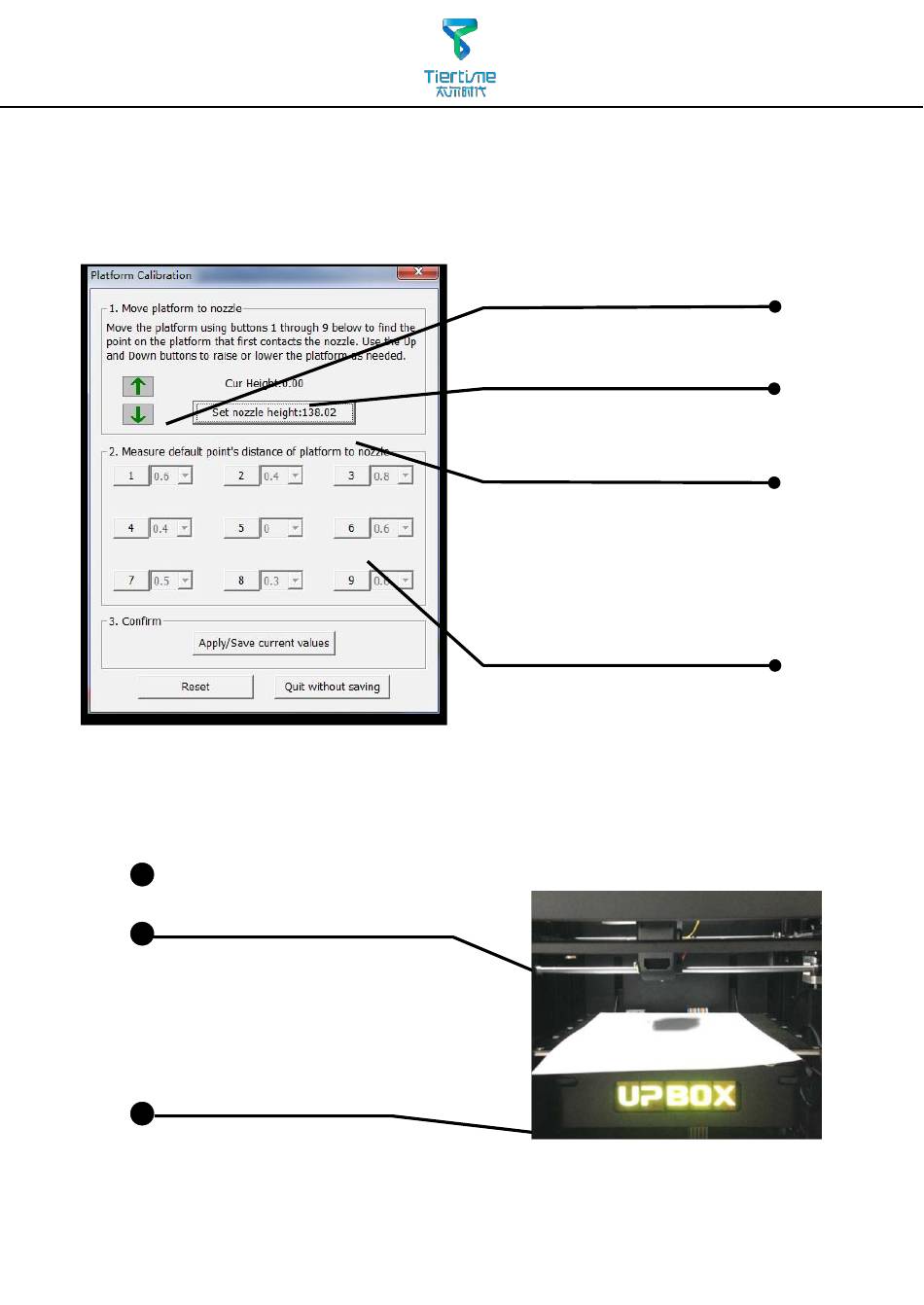

A. M o vi ng P la tfo r m UP/ DO WN :
click/hold the button, platform
will move
B. D i s p l ay t h e c u r re nt p l at for m
height.
C. Setting nozzle height: click this
will set the cur r en t pla tf or m
height as the nozzle height.
D. 9 c a l i b r a t i o n p o i n t b u t t o n s ,
represent 9 positions on platform,
af ter click ing them the nozzle
will move to the corresponding
positions. The drop down menu
beside the button is for setting
leveling compensation values.
29
accordingly.
