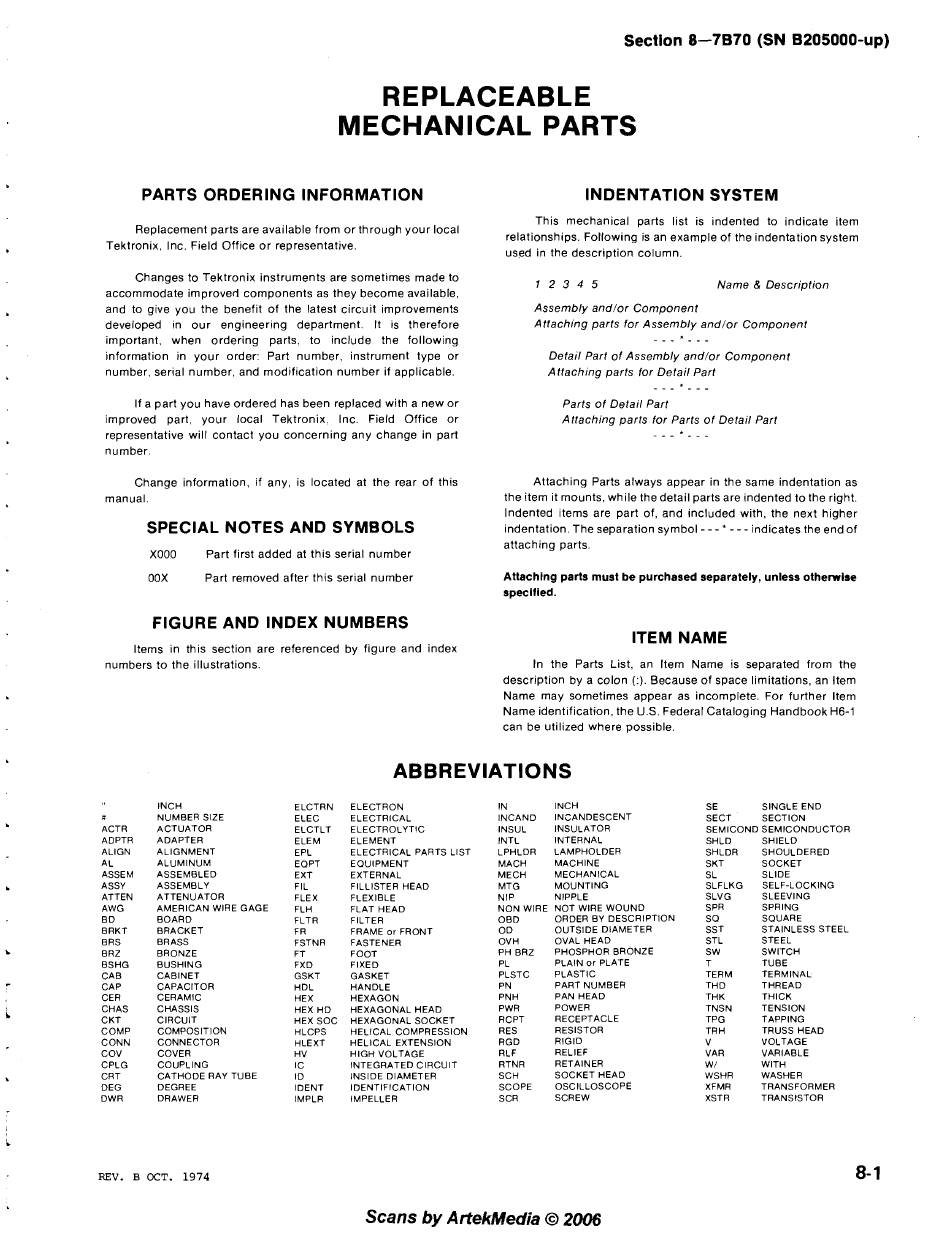

Tektronix 7B70 Time Base Instruction Manual page 93

Section 8-7870 (SN B205000-up)
REPLACEABLE
MECHANICAL PARTS
PARTS ORDERING INFORMATION
Replacement parts are available from or through your local
Tektronix. Inc. Field Office or representative.
Changes to Tektronix instruments are sometimes made to
accommodate improved components as they become available,
and to give you the benefit of the latest circuit improvements
developed in our engineering department. It is therefore
important, when ordering parts, to include the following
information in your order: Part number, instrument type or
number, serial number, and modification number if applicable.
If a part you have ordered has been replaced with a new or
improved part, your local Tektronix. Inc. Field Office or
representative will contact you concerning any change in part
number.
Change information, if any, is located at the rear of this
manual.
SPECIAL NOTES AND SYMBOLS
XOOO Part first added at this serial number
OOX Part removed after this serial number
FIGURE AND INDEX NUMBERS
Items in this section are referenced by figure and index
numbers to the illustrations.
#
ACTR
ADPTR
ALIGN
AL
ASSEM
ASSY
ATTEN
AWG
BD
BRKT
BRS
BRZ
BSHG
CAB
CAP
CER
CHAS
CKT
COMP
CONN
cov
CPLG
CRT
DEG
DWR
INCH
NUMBER SIZE
ACTUATOR
ADAPTER
ALIGNMENT
ALUMINUM
ASSEMBLED
ASSEMBLY
ATTENUATOR
AMERICAN WlRE GAGE
BOARD
BRACKET
BRASS
BRONZE
BUSHING
CABINET
CAPACITOR
CERAMIC
CHASSIS
CIRCUIT
COMPOSITION
CONNECTOR
COVER
COUPLING
CATHODE RAY TUBE
DEGREE
DRAWER
ELCTRN
ELEC
ELCTLT
ELEM
EPL
EOPT
EXT
FIL
FLEX
FLH
FLTR
FR
FSTNR
FT
FXD
GSKT
HDL
HEX
HEX HD
HEX SOC
HLCPS
HLEXT
HV
IC
ID
IDENT
IMPLR
INDENTATION SYSTEM
This mechanical parts list is indented to indicate item
relationships. Following is an example of the indentation system
used in the description column.
1 2 3 4 5 Name & Description
Assembly andlor Component
Attaching parts for Assembly andlor Component
. _ _ * _ _ _
Detail Part of Assembly andlor Component
Attaching parts for Detail Part
- - -
- - -
Parts of Detail Part
Attaching parts for Parts of Detail Part
- - -
- . -
Attaching Parts always appear in the same indentation as
the item it mounts, while the detail parts are indented to the right.
Indented items are part of, and included with, the next higher
indentation. The separation symbol
- - - - - -
indicates the end of
attaching parts.
Attaching parts must be purchased separately, unless otherwise
specified.
ITEM NAME
In the Parts List, an Item Name is separated from the
description by a colon (:). Because of space limitations, an ltem
Name may sometimes appear as incomplete. For further ltem
Name identification, the U.S. Federal Cataloging Handbook H6-1
can be utilized where possible.
ABBREVIATIONS
ELECTRON
ELECTRICAL
ELECTROLYTIC
ELEMENT
ELECTRICAL PARTS LIST
EQUIPMENT
EXTERNAL
FlLLlSTER HEAD
FLEXIBLE
FLAT HEAD
FILTER
FRAME or FRONT
FASTENER
FOOT
FIXED
GASKET
HANDLE
HEXAGON
HEXAGONAL HEAD
HEXAGONAL SOCKET
HELICAL COMPRESSION
HELICAL EXTENSION
HIGH VOLTAGE
INTEGRATED CIRCUIT
INSIDE DIAMETER
IDENTIFICATION
IMPELLER
IN INCH
INCAND INZANDESCENT
INSUL INSULATOR
INTL INTERNAL
LPHLDR LAMPHOLDER
MACH MACHINE
MECH MECHANICAL
MTG MOUNTING
NIP NIPPLE
NON WlRE NOT WlRE WOUND
OBD ORDER BY DESCRIPTION
OD
OUTSIDE DIAMETER
OVH OVAL HEAD
p H BRZ PHOSPHOR BRONZE
PL PLAIN
or
PLATE
PLSTC PLASTIC
PN
PART NLIMBER
PNH PAN HEAD
PWR POWER
RCPT RECEPTACLE
RES RESISTOR
RGD RIGID
RLF RELIEF
RTNR RETAINER
SCH SOCKET HEAD
SCOPE OSCILLOSCOPE
SCR SCREW
SE SINGLE END
SECT SECTION
SEMICOND SEMICONDUCTOR
SHLD SHIELD
SHLDR SHOULDERED
SKT SOCKET
SL SLIDE
SLFLKG SELF-LOCKING
SLVG SLEEVING
SPR SPRING
SO SQUARE
SST STAINLESS STEEL
STL STEEL
SW SWITCH
T TUBE
TERM TERMINAL
THD THREAD
THK THICK
TNSN TENSION
TPG TAPPING
TRH TRUSS HEAD
V VOLTAGE
VAR VARIABLE
W I WITH
WSHR WASHER
XFMR TRANSFORMER
XSTR TRANSISTOR
REV. B OCT.
1974
