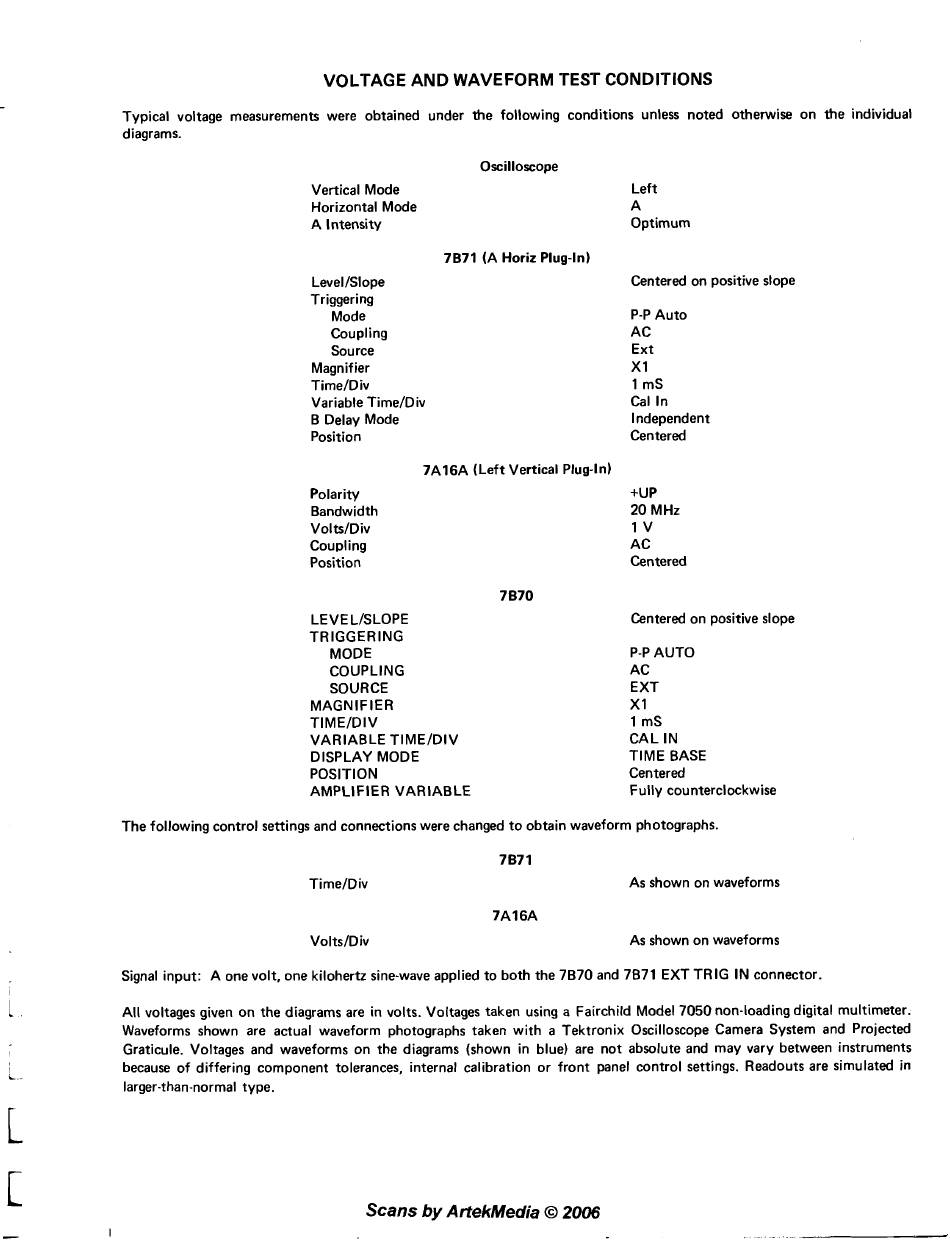

Tektronix 7B70 Time Base Instruction Manual page 83

VOLTAGE AND WAVEFORM TEST CONDITIONS
Typical voltage measurements were obtained under the following conditions unless noted otherwise on the individual
diagrams.
Oscilloscope
Vertical Mode
Horizontal Mode
A l ntensity
Levellslope
Triggering
Mode
Coupling
Source
Magnifier
TimeIDiv
Variable TimeIDiv
B Delay Mode
Position
7 ~ 1 6 ~ (Left Vertical Plug-In)
Polarity
Bandwidth
VoltsIDiv
Coupling
Position
7871 (A Horiz Plug-In)
LEVE LISLOPE
TRIGGERING
MODE
COUPLING
SOURCE
MAGNIFIER
TIMEIDIV
VARIABLE TIMEIDIV
DISPLAY MODE
POSITION
AMPLIFIER VARIABLE
Left
A
Optimum
Centered on positive slope
P-P Auto
AC
Ext
X I
1 mS
Cal In
Independent
Centered
+UP
20 MHz
1
v
AC
Centered
Centered on positive slope
P-P AUTO
AC
EXT
X I
1 mS
CAL IN
TIME BASE
Centered
Fully counterclockwise
The following control settings and connections were changed t o obtain waveform photographs.
7B71
As shown on waveforms
VoltsIDiv As shown on waveforms
Signal input: A one volt, one kilohertz sine-wave applied to both the 7B70 and 7871 EXT TRIG IN connector.
All voltages given on the diagrams are in volts. Voltages taken using
a
Fairchild Model 7050 non-loading digital multimeter.
Waveforms shown are actual waveform photographs taken with a Tektronix Oscilloscope Camera System and Projected
Graticule. Voltages and waveforms on the diagrams (shown in blue) are not absolute and may vary between instruments
because of differing component tolerances, internal calibration or front panel control settings. Readouts are simulated in
larger-than-normal type.
