Page 2 User Manual 73A-455 MIL-STD-1553A/B Bus Simulator Module 070-9136-02 This document applies for firmware version 1.00 and above. Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 3 Copyright Tektronix, Inc. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes that in all previously published material. Specifications and price change privileges reserved. Printed in the U.S.A. Tektronix, Inc., P.O. Box 1000, Wilsonville, OR 97070–1000 TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.
Page 4 Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.
Page 5 8444 AB Heerenveen The Netherlands declare under sole responsibility that the 73A-455 and all options meets the intent of Directive 89/336/EEC for Electromagnetic Compatibility. Compliance was demonstrated to the following specifications as listed in the Official Journal of the European Communities:...
Page 6 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 7 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 8 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 9 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 10: General Safety Summary
Do Not Operate in To avoid injury or fire hazard, do not operate this product in an explosive Explosive Atmosphere atmosphere. 73A-455 VX4469A ARINC 629 Communication Module User Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 11: Product Damage Precautions
WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. 73A-455 VX4469A ARINC 629 Communication Module User Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 12 The following symbols may appear on the product: Double DANGER Protective Ground ATTENTION Insulated High Voltage (Earth) Terminal Refer to Manual 73A-455 VX4469A ARINC 629 Communication Module User Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 13: Service Safety Summary
(if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components. To avoid electric shock, do not touch exposed connections. 73A-455 VX4469A ARINC 629 Communication Module User Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 14 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 15 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 16 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 17 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 18 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 19 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 20 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 21 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 22 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 23 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 24 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 25 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 26 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 27 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 28 VXI Bus Radiated Emissions: VXI Bus Conducted Emissions: Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 29 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 30 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 31 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 32 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 33 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 34 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 35 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 36 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 37 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 38 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 39 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 40 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 41 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 42 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 43 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 44 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 45 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 46 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 47 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 48 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 49 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 50 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 51 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 52 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 53 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 54 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 55 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 56 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 57 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 58 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 59 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 60 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 61 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 62 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 63 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 64 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 65 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 66 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 67 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 68 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 69 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 70 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 71 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 72 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 73 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 74 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 75 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 76 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 77 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 78 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 79 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 80 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 81 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 82 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 83 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 84 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 85 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 86 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 87 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 88 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 89 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 90 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 91 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 92 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 93 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 94 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 95 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 96 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 97 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 98 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 99 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 100 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 101 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 102 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 103 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 104 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 105 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 106 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 107 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 108 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 109 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 110 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 111 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 112: General Information And Conventions
Programming of the 73A-455 assumes no particular interface. Refer to Programming Examples in Basic for a list of the ASC commands that need to be sent to the 73A-455. Form the commands properly for the interface that you use. This procedure checks one of two channels of the 73A-455, then instructs you to repeat the procedure for the other channel.
Page 113: Required Equipment
Digitizing oscilloscope with at least 500 MHz bandwidth, a sample frequency of 1 GHz, and a minimum of 2 channel A platform to send commands to the 73A-455 and receive data back from the 73A-455. A cable to connect the direct coupled output of the 73A-455 from Direct A to Direct B.
Page 114: Performance Verification Check
1. Connect channel 1 of the oscilloscope to S4 pin 39 (position identification output Bus A). NOTE. Program the Bus A side of the 73A-455 module using the logical address. 2. Send the following commands to Bus A: FC <cr/lf>...
Page 115 VT820,35<cr/lf> T*<cr/lf> 8. Verify that the 73A-455 Bus B CTRL, PATT, and COMM lights are on. 9. Measure the time on channel 1 between the falling edge of one pulse to the falling edge of the next pulse. Refer to Figure 455-8 to verify a measurement of 70 s 70 ns.
Page 116 VT820,35<cr/lf> T*<cr/lf> 2. Measure the peak-to-peak amplitude. Verify that the reading is 8.20 V 300 mV. Refer to Figure 455-9. 3. Send the following command to the 73A-455 to make the transmitter quit and reset: K<cr/lf> 73A-455 APPENDIX E Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 117 2. Measure the peak-to-peak amplitude of the 1553 message on channel 2. Refer to Figure 455-10 to verify that the measurement is 200 mV 300 mV. APPENDIX E 73A-455 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 118 3. Send the following command to the 73A-455 to make the transmitter quit and reset: K<cr/lf> Amplitude test 200 mV 300 mV Figure 455-10: Amplitude Test, Millivolts Peak-to-Peak Amplitude Test for Bus B. Follow the steps below to check the amplitude for Bus B.
Page 119 3. Measure the peak-to-peak amplitude of the 1553 message on channel 2. Verify that the reading is 8.20 V 300 mV. Refer to Figure 455-9. 4. Send the following command to the 73A-455 to make the transmitter quit and reset: K<cr/lf> 5. Send the following commands to Bus B: FC <cr/lf>...
Page 120 T*<cr/lf> 2. Measure from the beginning of the sync to midsync. Verify that the reading is 1 s 70 ns. Refer to Figure 455-12. 73A-455 APPENDIX E Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 121 500 ns early Figure 455-12: Midsync Transition 500 ns Early Invalid Parity Error. Follow the steps below to generate an invalid parity error: 1. Send the following command to the 73A-455 to make the transmitter quit and reset: K<cr/lf> 2. Send the following commands to Bus A: FC <cr/lf>...
Page 122 Manchester Error. Follow the steps below to generate a Manchester error: NOTE. A Manchester error is when the bus is held high or low for a complete bus cycle ( 1 s). 1. Send the following command to the 73A-455 to make the transmitter quit and reset: K<cr/lf>...
Page 123 3. Compare Figure 455-14 (no Manchester error) to Figure 455-15 (with a Manchester error) to insure that there is a Manachester error. N0 Error Mode 2 Figure 455-14: No Manchester Error APPENDIX E 73A-455 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 124 Figure 455-15: Manchester Error. Sync Transition 500 ns Late. Follow the steps below to generate a sync transition error reading: 1. Send the following command to the 73A-455 to make the transmitter quit and reset: K<cr/lf> 2. Send the following commands to Bus A: FC <cr/lf>...
Page 125 Figure 455-16: Midsync Transition 500 ns Late 17-bit Word Error. Follow the steps below to add one bit to the 16 bit word. Refer to Figure 455-17. 1. Send the following command to the 73A-455 to make the transmitter quit and reset: K<cr/lf>...
Page 126 Figure 455-17: 17 bit Word 15-bit Word Error. Follow the steps below to subtract one bit from the 16 bit word. Refer to Figure 455-18. 1. Send the following command to the 73A-455 to make the transmitter quit and reset: K<cr/lf>...
Page 127 Dropped Bit Error. Follow the steps below to hold the reference level at 0.0 V for the bit transition time. Release the reference level for the next transition. Refer to Figure 455-19. 1. Send the following command to the 73A-455 to make the transmitter quit and reset: K<cr/lf>...
Page 128 Dropped Bit on Position 16. Follow the steps below to check the ability of the 73A-455 to place a dropped bit on bit position 16. Refer to Figure 455-20. 1. Send the following command to the 73A-455 to make the transmitter quit and reset: K<cr/lf>...
Page 129 Dropped Bit on Position 1. Follow the steps below to check the ability to place a dropped bit on bit position 1. Refer to Figure 455-21. 1. Send the following command to the 73A-455 to make the transmitter quit and reset: K<cr/lf>...
Page 130 Valid Midbit Transition Time. Follow the steps below to check for a valid midbit transition of 150 ns 70 ns. 1. Send the following command to the 73A-455 to make the transmitter quit and reset: K<cr/lf> 2. Send the following commands to Bus: K <cr/lf>...
Page 131 Refer to Figure 455-22 for a valid midbit transition. Refer to Figure 455-23 for the invalid midbit transition. No Errors Mode 1 Valid bit transition Time Figure 455-22: Valid Midbit Transition Time APPENDIX E 73A-455 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 132 Transition Error 150 ns late Figure 455-23: Invalid Midbit Transition 4. Send the following command to the 73A-455 to make the transmitter quit and reset: K<cr/lf> This completes the transmitter testing for channel A of the 73A-455. Repeat the transmitter testing for channel B of the 73A-455.
Page 133 1. Remove the channel 1 and channel 2 oscilloscope probes from the bus resistor. 2. Connect the bus cable between Direct A and Direct B connectors of the 73A-455. 3. Send the following commands to channel B Remote Terminal (RT): K<cr/lf>...
Page 134 13. Send the following commands to the BC: Q<cr/lf> A1,1,H<cr/lf> 14. Read back the following word from the BC: 0B0000 The last four bytes should match the above word. 73A-455 APPENDIX E Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 135 00EEEE 0B0000 The first two bytes of each word may differ, but the last four bytes must match each of the above listed words. APPENDIX E 73A-455 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 136 The first two bytes of each word may differ, but the last four bytes must match each of the above listed words. 29. Send the following commands to the RT: Q<cr/LF> A20,1,H<cr/lf> 73A-455 APPENDIX E Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 137 The first two bytes of each word may differ, but the last four bytes must match each of the above listed words. This completes the Receiver Amplitude Test. APPENDIX E 73A-455 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 138 VT620,35<cr/lf> VR200<cr/lf> T1<cr/lf> 3. Wait approximately 100 s before sending out any other commands. 4. Send the following commands to the BC: Q<cr/lf> A1,1,H<cr/lf> 73A-455 APPENDIX E Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 139 9. Send the following commands to channel A: T1<cr/lf> 10. Wait approximately 100 s before sending out any other commands. 11. Send the following commands to the BC: Q<cr/lf> A1,1,H<cr/lf> APPENDIX E 73A-455 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 140 16. Send the following commands to channel A: T1<cr/lf> 17. Wait approximately 100 s before sending out any other commands. 18. Send the following commands to the BC: Q<cr/lf> A1,1,H<cr/lf> 73A-455 APPENDIX E Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 141 23. Send the following commands to channel A: T1<cr/lf> 24. Wait approximately 100 s before sending out any other commands. 25. Send the following commands to the BC: Q<cr/lf> A1,1,H<cr/lf> APPENDIX E 73A-455 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 142 30. Send the following commands to channel A: T1<cr/lf> 31. Wait approximately 100 s before sending out any other commands. 32. Send the following commands to the BC: Q<cr/lf> A1,1,H<cr/lf> 73A-455 APPENDIX E Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 143 37. Send the following commands to channel A: T1<cr/lf> 38. Wait approximately 100 s before sending out any other commands. 39. Send the following commands to the BC: Q<cr/lf> A1,1,H<cr/lf> APPENDIX E 73A-455 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 144 44. Send the following commands to channel A: T1<cr/lf> 45. Wait approximately 100 s before sending out any other commands. 46. Send the following commands to the BC: Q<cr/lf> A1,1,H<cr/lf> 73A-455 APPENDIX E Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 145 51. Send the following commands to channel A: G4<cr/lf> T1<cr/lf> 52. Wait approximately 100 s before sending out any other commands. 53. Send the following commands to the BC: Q<cr/lf> A1,1,H<cr/lf> APPENDIX E 73A-455 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 146 G5<cr/lf> D1,1,H,10A420;<cr/lf> T1<cr/lf> 59. Wait approximately 100 s before sending out any other commands. 60. Send the following commands to the BC: Q<cr/lf> A1,1,HF<cr/lf> 73A-455 APPENDIX E Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 147 Each word must match the above listed word. 64. Repeat the Receiver Error Detection Test on page 120, reversing the function of the 73A-455 by making channel A the RT and channel B the BC. The receiver tests are complete if all tests are successful.
Page 148 Follow the steps below to verify the performance of the memory and CPU: 1. Send the following command to channel A: TEST<cr/lf> 2. Wait until all of the lights on channel A of the 73A-455 module have quit blinking. 3. Verify the 73A-455 displays the following message: OK, Vx.x...
Page 149 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 150 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 151 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

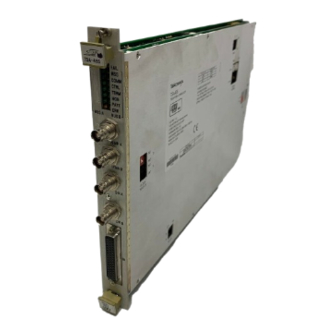

Tektronix 73A-455 User Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Tektronix 73A-455

Summary of Contents for Tektronix 73A-455

Page 10: General Safety Summary

Page 11: Product Damage Precautions

Page 13: Service Safety Summary

Page 112: General Information And Conventions

Page 113: Required Equipment

Page 114: Performance Verification Check
