Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-833-9200
tek.com/keithley

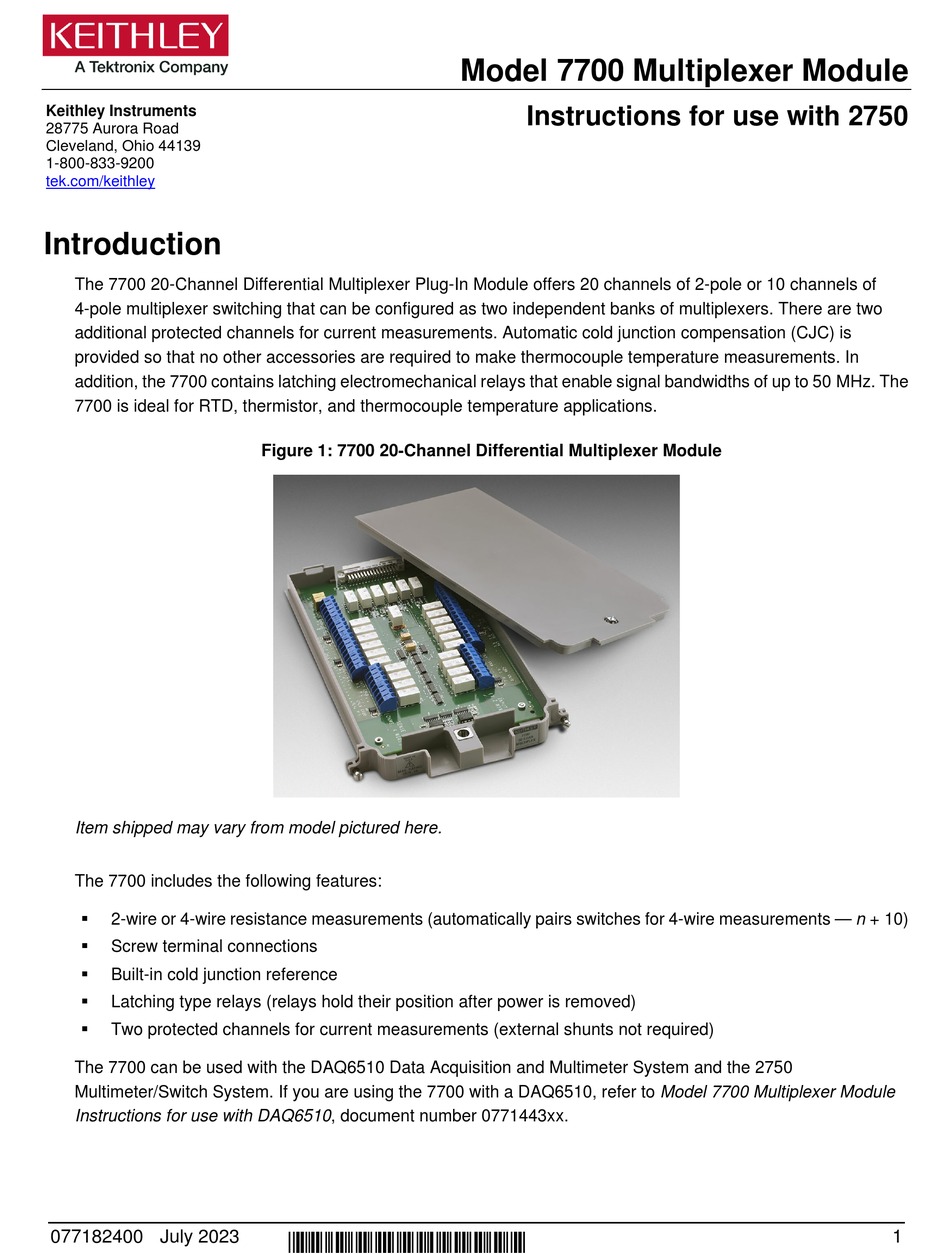

Introduction
The 7700 20-Channel Differential Multiplexer Plug-In Module offers 20 channels of 2-pole or 10 channels of
4-pole multiplexer switching that can be configured as two independent banks of multiplexers. There are two
additional protected channels for current measurements. Automatic cold junction compensation (CJC) is
provided so that no other accessories are required to make thermocouple temperature measurements. In
addition, the 7700 contains latching electromechanical relays that enable signal bandwidths of up to 50 MHz. The
7700 is ideal for RTD, thermistor, and thermocouple temperature applications.
Item shipped may vary from model pictured here.
The 7700 includes the following features:
2-wire or 4-wire resistance measurements (automatically pairs switches for 4-wire measurements — n + 10)
Screw terminal connections
Built-in cold junction reference
Latching type relays (relays hold their position after power is removed)
Two protected channels for current measurements (external shunts not required)
The 7700 can be used with the DAQ6510 Data Acquisition and Multimeter System and the 2750
Multimeter/Switch System. If you are using the 7700 with a DAQ6510, refer to Model 7700 Multiplexer Module
Instructions for use with DAQ6510, document number 0771443xx.
077182400 July 2023
Figure 1: 7700 20-Channel Differential Multiplexer Module
*P077182400*
Model 7700 Multiplexer Module
Instructions for use with 2750
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KEITHLEY 7700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tektronix KEITHLEY 7700

  • Page 1 Model 7700 Multiplexer Module Keithley Instruments Instructions for use with 2750 28775 Aurora Road Cleveland, Ohio 44139 1-800-833-9200 tek.com/keithley Introduction The 7700 20-Channel Differential Multiplexer Plug-In Module offers 20 channels of 2-pole or 10 channels of 4-pole multiplexer switching that can be configured as two independent banks of multiplexers. There are two additional protected channels for current measurements.
  • Page 2: Switching Module Capabilities

    Model 7700 Multiplexer Module Instructions for use with 2750 Switching module capabilities Channels 1 through 20: The 7700 can multiplex one of 20 2-pole signals, or one of 10 4-pole signals into the input of the 2750. Channels 21 and 22: The 7700 can multiplex one of two 2-pole current signals into the input of the 2750. When you use system channel operation, only one channel or channel pair can be closed at the same time.
  • Page 3 Model 7700 Multiplexer Module Instructions for use with 2750 Schematic The simplified schematic of the 7700 is shown in the following figure. Figure 2: 7700 simplified schematic 077182400 July 2023...
  • Page 4 Model 7700 Multiplexer Module Instructions for use with 2750 Channels 1 through 20 are used for all measurements except current. Channels 21 and 22 are used for current only. There are two backplane relays (channels 24 and 25) that connect the input channels to the backplane of the instrument.
  • Page 5 Model 7700 Multiplexer Module Instructions for use with 2750 To prevent electric shock that could result in serious injury or death, comply with these safety precautions:  Before making or breaking any connections to the switching card, make sure the instrument is turned off and power is removed from all external circuitry.
  • Page 6: Wiring Procedure

    Model 7700 Multiplexer Module Instructions for use with 2750 Wiring procedure Use the following procedure to wire the 7700 module. Make all connections using the correct wire size (up to 20 AWG). All wiring must be rated for the maximum voltage in the system. For example, if 1000 V is applied to the front terminals of the instrument, the switching module wiring must be rated for 1000 V.
  • Page 7 Model 7700 Multiplexer Module Instructions for use with 2750 3. Use a small flat-blade screwdriver to loosen the terminal screws and install the wires as needed. Figure 4: 7700 screw terminal channel designations 077182400 July 2023...
  • Page 8: Typical Wiring Connections

    Model 7700 Multiplexer Module Instructions for use with 2750 4. Route wire along the wire path and secure with cable tie as shown in the following figure. Make sure to add supplementary insulation around the harness for voltages above 42 V .
  • Page 9 Model 7700 Multiplexer Module Instructions for use with 2750 Figure 6: Thermocouple connections Figure 7: Two-wire resistance and thermistor connections Figure 8: Four-wire resistance and RTD connections 077182400 July 2023...
  • Page 10: Connection Log

    Model 7700 Multiplexer Module Instructions for use with 2750 Figure 9: DC or AC voltage connections Figure 10: AC or DC current connections Connection log You can use the following table to record your connection information. 077182400 July 2023...
  • Page 11 Model 7700 Multiplexer Module Instructions for use with 2750 Connection log for the 7700 Channel Color Description AMPS COM INPUT SENSE CH10 CH11 CH12 CH13 CH14 CH15 CH16 CH17 CH18 CH19 CH20 AMPS21 AMPS22 077182400 July 2023...
  • Page 12: Installation

    Model 7700 Multiplexer Module Instructions for use with 2750 Installation For information on installing the switching module into the 2750, refer to the Model 2750 User's Manual, 2750-900-0xx available at tek.com/keithley. Operation To prevent overheating or damage to the 7700 switching module relays, never exceed the following maximum signal levels between any two inputs or chassis: ...
  • Page 13: Safety Precautions

    Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
  • Page 14 For safety, instruments and accessories must be used in accordance with the operating instructions. If the instruments or accessories are used in a manner not specified in the operating instructions, the protection provided by the equipment may be impaired. Do not exceed the maximum signal levels of the instruments and accessories. Maximum signal levels are defined in the specifications and operating information and shown on the instrument panels, test fixture panels, and switching cards.
