Tektronix 7B70 Time Base Instruction Manual page 4

7B70 (SN B205000 and Up)

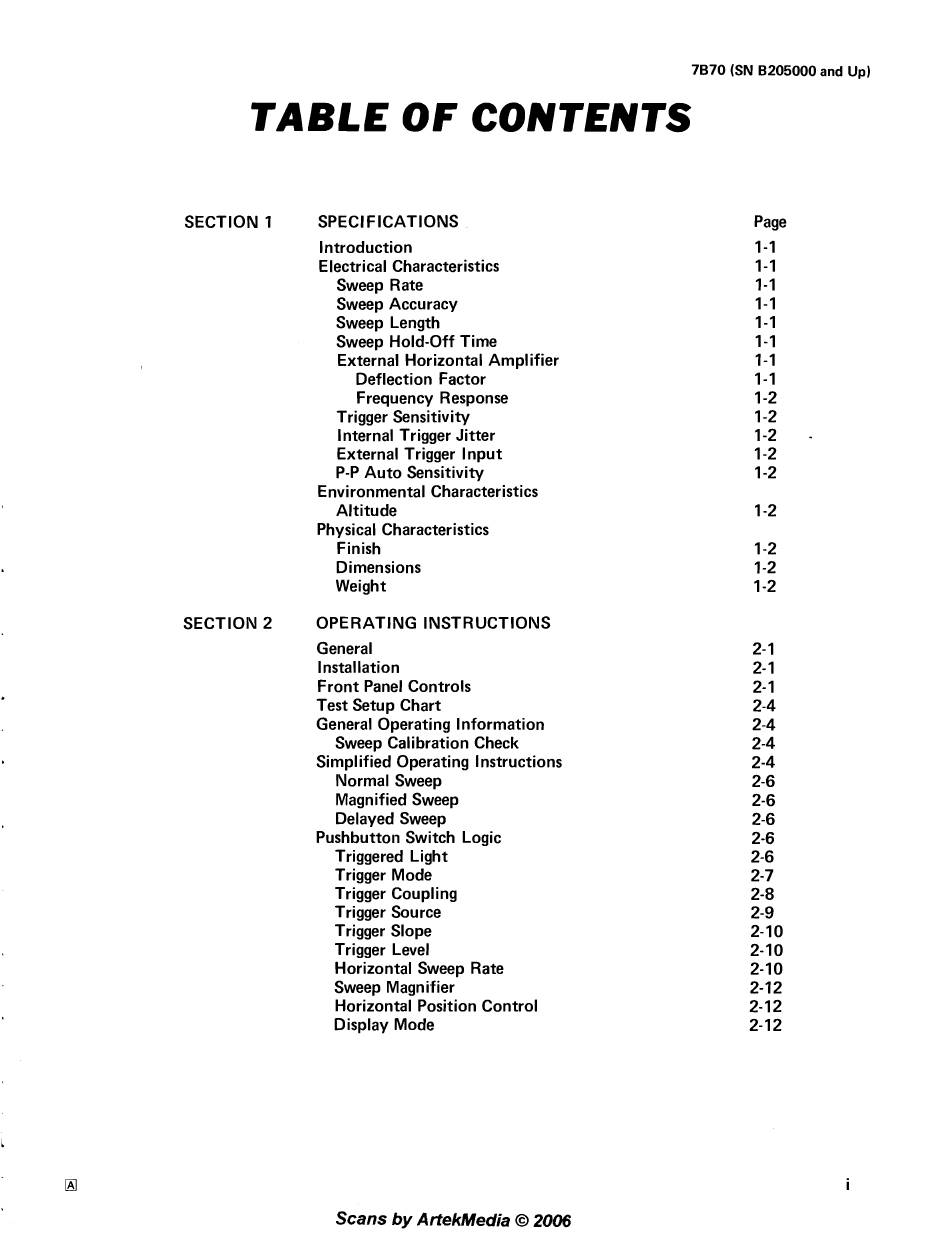

TABLE OF CONTENTS
SECTION 1 SPECIFICATIONS
Introduction
Electrical Characteristics
Sweep Rate
Sweep Accuracy
Sweep Length
Sweep Hold-Off Time
External Horizontal Amplifier
Deflection Factor
Frequency Response
Trigger Sensitivity
Internal Trigger Jitter
External Trigger l n p u t
P-P A u t o Sensitivity
Environmental Characteristics
Altitude
Physical Characteristics
Finish
Dimensions
Weight
SECTlOlV 2 OPERATING INSTRUCTIOIVS
General
Installation
F r o n t Panel Controls
Test Setup Chart
General Operating Information
Sweep Calibration Check
Simplified Operating l nstructions
IVormal Sweep
Magnified Sweep
Delayed Sweep
Pushbuttoll Switch Logic
Triggered Light
Trigger Mode
Trigger Coupling
Trigger Source
Trigger Slope
Trigger Level
Horizontal Sweep Rate
Sweep Magnifier
Horizontal Position Control
Display Mode
Page
Scans by Afiekhfedia O 2006
