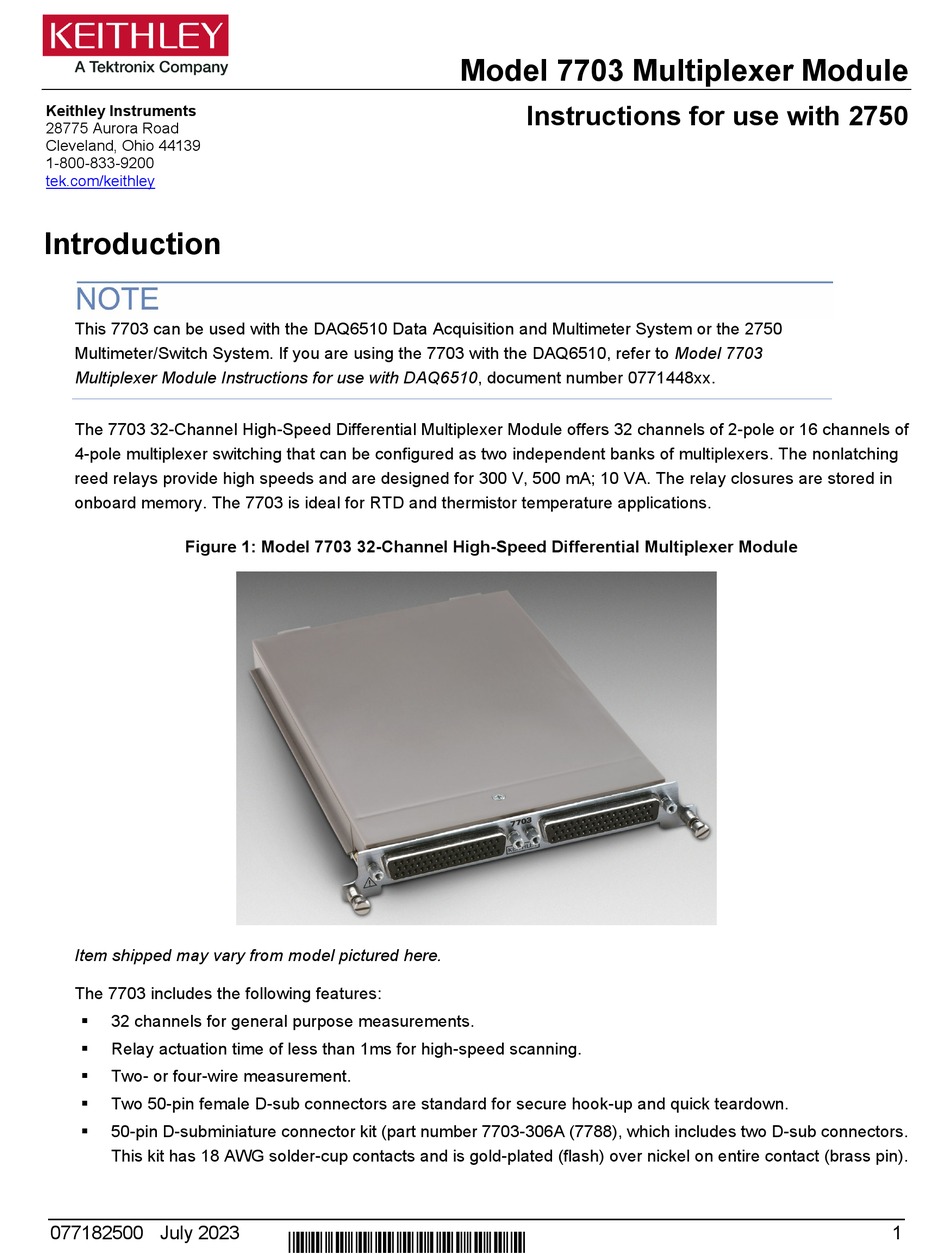

Introduction
This 7703 can be used with the DAQ6510 Data Acquisition and Multimeter System or the 2750
Multimeter/Switch System. If you are using the 7703 with the DAQ6510, refer to Model 7703
Multiplexer Module Instructions for use with DAQ6510, document number 0771448xx.
The 7703 32-Channel High-Speed Differential Multiplexer Module offers 32 channels of 2-pole or 16 channels of
4-pole multiplexer switching that can be configured as two independent banks of multiplexers. The nonlatching
reed relays provide high speeds and are designed for 300 V, 500 mA; 10 VA. The relay closures are stored in
onboard memory. The 7703 is ideal for RTD and thermistor temperature applications.

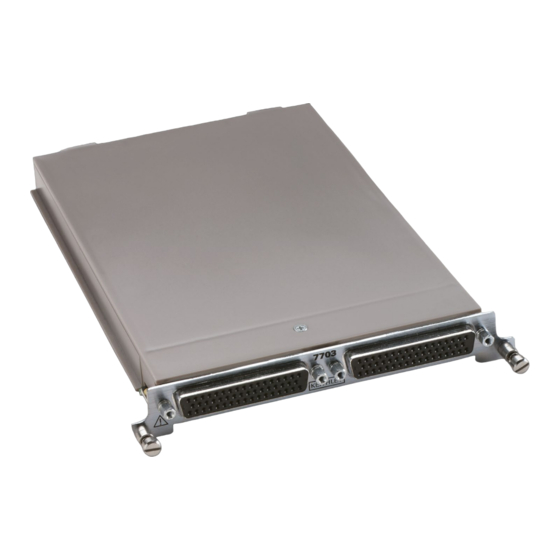

Figure 1: Model 7703 32-Channel High-Speed Differential Multiplexer Module
Item shipped may vary from model pictured here.
The 7703 includes the following features:
32 channels for general purpose measurements.
Relay actuation time of less than 1ms for high-speed scanning.
Two- or four-wire measurement.
Two 50-pin female D-sub connectors are standard for secure hook-up and quick teardown.
50-pin D-subminiature connector kit (part number 7703-306A (7788), which includes two D-sub connectors.
This kit has 18 AWG solder-cup contacts and is gold-plated (flash) over nickel on entire contact (brass pin).
077182500 July 2023
Model 7703 Multiplexer Module
*P077182500*
Instructions for use with 2750
1
