Quick Start Guide

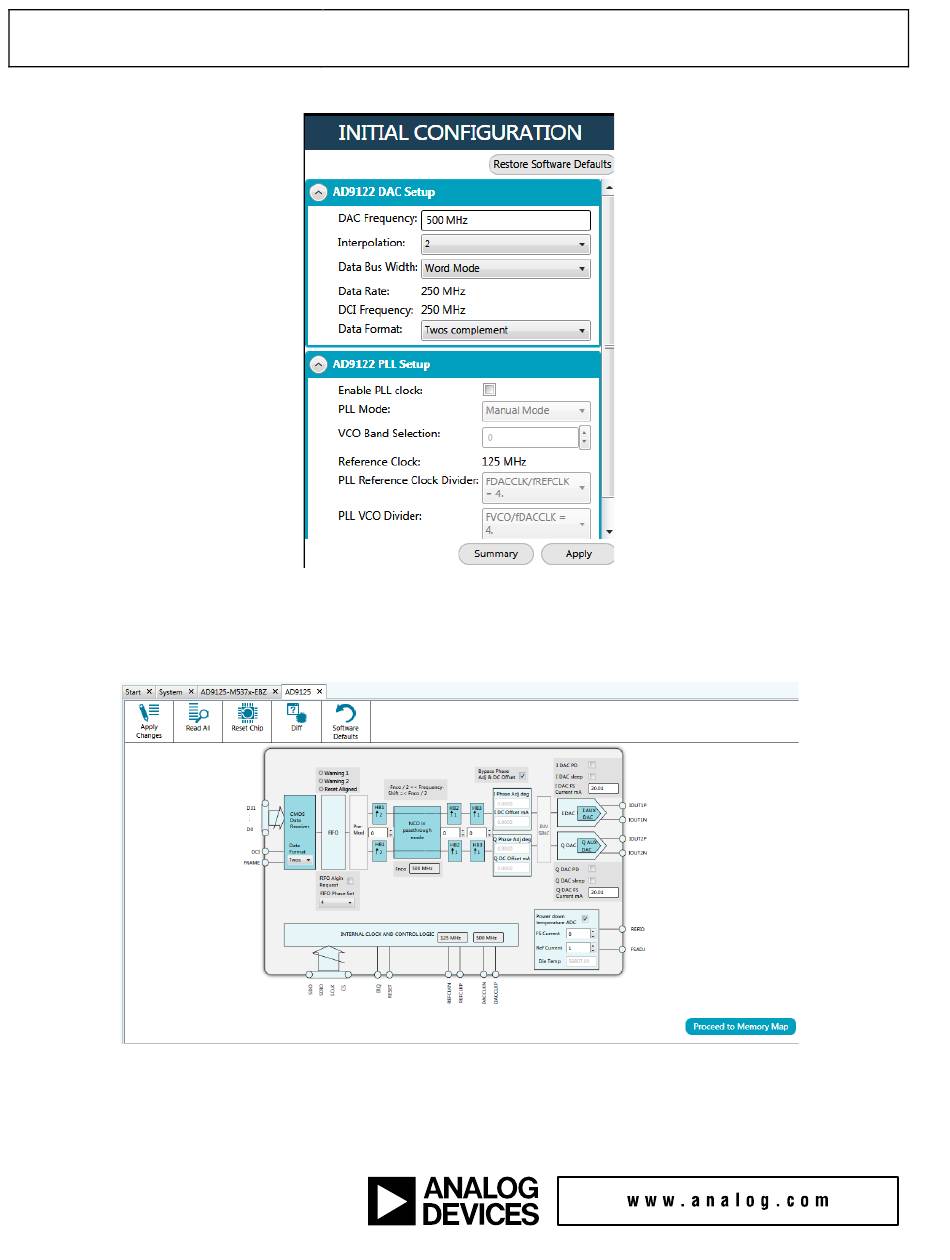

Double click on the dark blue AD9125 on the board diagram. Ensure that the settings of the AD9125 match with Figure 7 and click "Apply
Changes. "
Open the DPG Downloader software. The 'DCO frequency' shown should be 250MHz. (Due to the resolution of the DPG frequency
counter, the measured frequency could be a little off). In the 'evaluation board' drop down menu, the selection should be shown as ' A D9125' .
This selection is automatically done when you plug the USB cable into the evaluation board.
