Quick Start Guide
The raw macro file will be saved using ACE syntax, which is not easily readable. To remedy this, the ACE software download includes the
Macro to Hex Conversion Tool. The user can choose to include or exclude register write, reads, and/or comments in the conversion. The
file pathways for the source and save paths should be the same, except that one should be an .acemacro file and the other should be a .txt
file. The "Convert" button converts and opens the converted text file, which is easier to read. The conversion tool can also convert back to
an .acemacro file if desired.

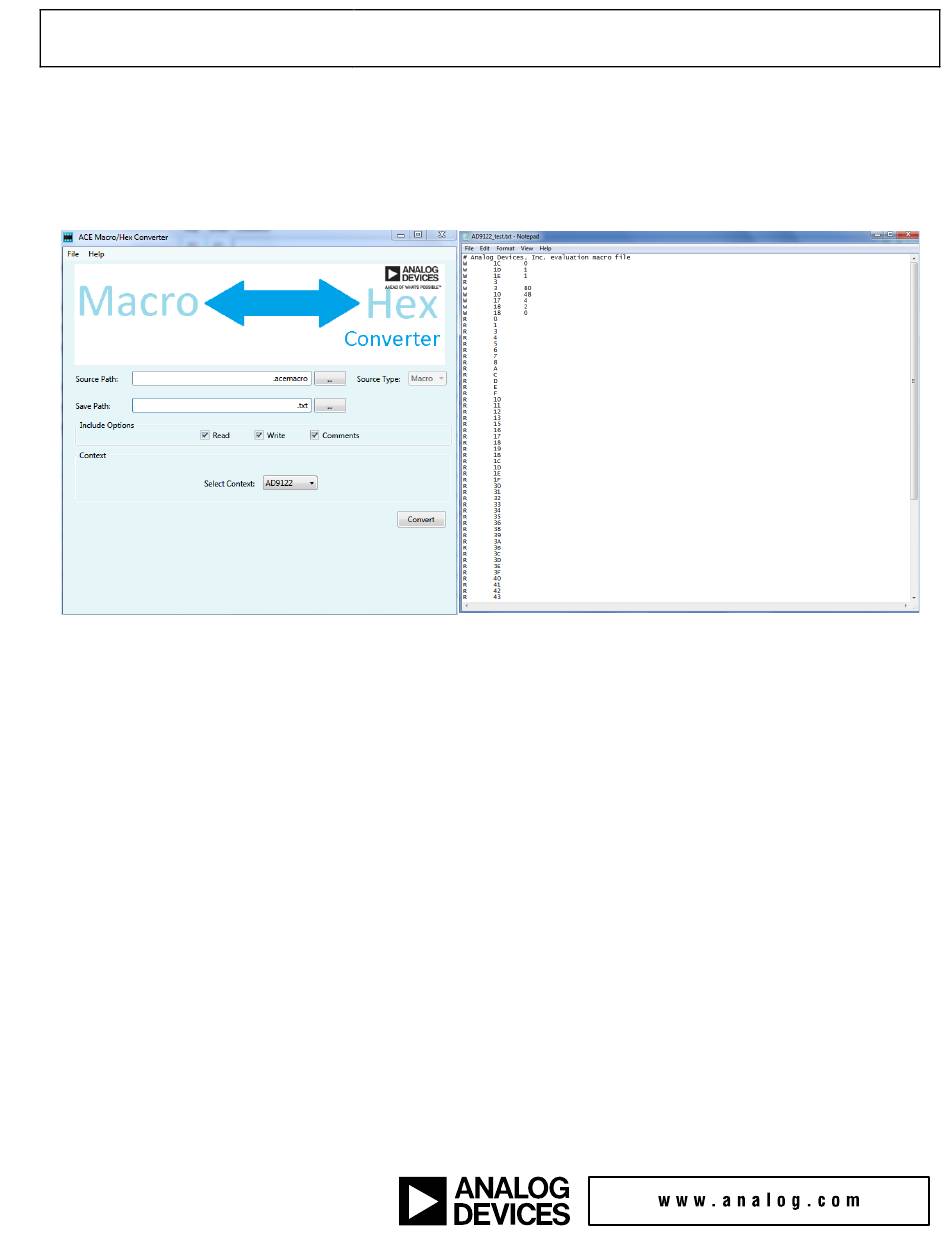

Figure 78: Conversion set-up for macro to hex
For more information about ACE and its features, visit https://wiki.analog.com/resources/tools-software/ace.
