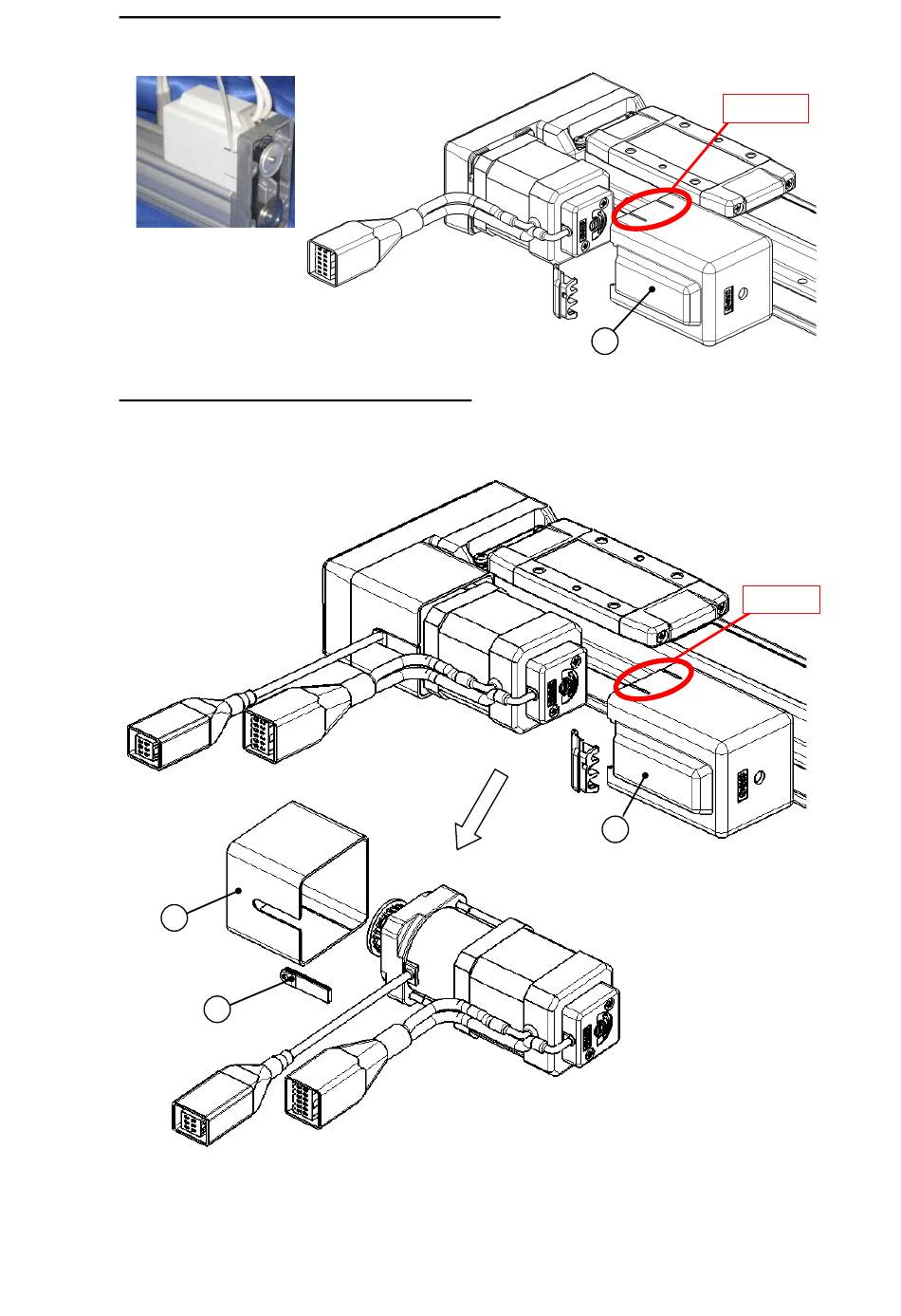

Parallel motor mounting type (without lock)
(6) Insert something flat such as a cable tie behind the fingers of the motor cover to
lift the fingers.
Parallel motor mounting type (with lock)
(6) Lift the fingers of the motor cover to remove the cover. Referring to the removal
procedure of 6-2-2, remove the motor. And then, remove the motor cover with lock(8)
holding the grommet(7).
8
7
6
6
- 8 -
Finger
Finger
