Crestron CCS-UC-200 Quick Start Manual

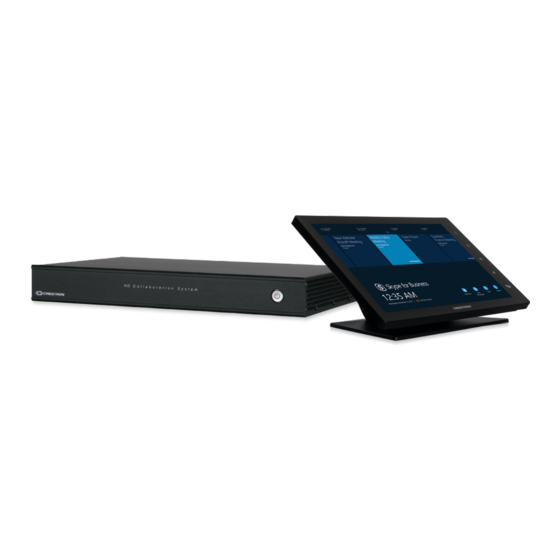

CCS-UC-200 KIT
Crestron RL 2 advanced group-collaboration solution for conference rooms and huddle spaces combines Crestron
®
Microsoft ® Skype ® for Business software. Skype for Business offers an enterprise-ready unified communications platform capable of
delivering presence, instant messaging, voice, and video across the network or Internet using computers and mobile devices. Crestron
RL 2 extends the Skype for Business experience to the conference room so that groups can communicate and collaborate in real time
from multiple locations. Crestron RL 2 combines the intuitive room control solutions of Crestron with the unified communication and
collaboration features of Skype for Business.
1
Preparation
Verify Contents
Before starting the installation, check the system's package contents. Included items are listed in the following table. Retain all
documents and parts supplied for the installation process.
DESCRIPTION
CODEC
TOUCH SCREEN, COLOR, 10"
RACK MOUNT KIT
UNDER TABLE KIT

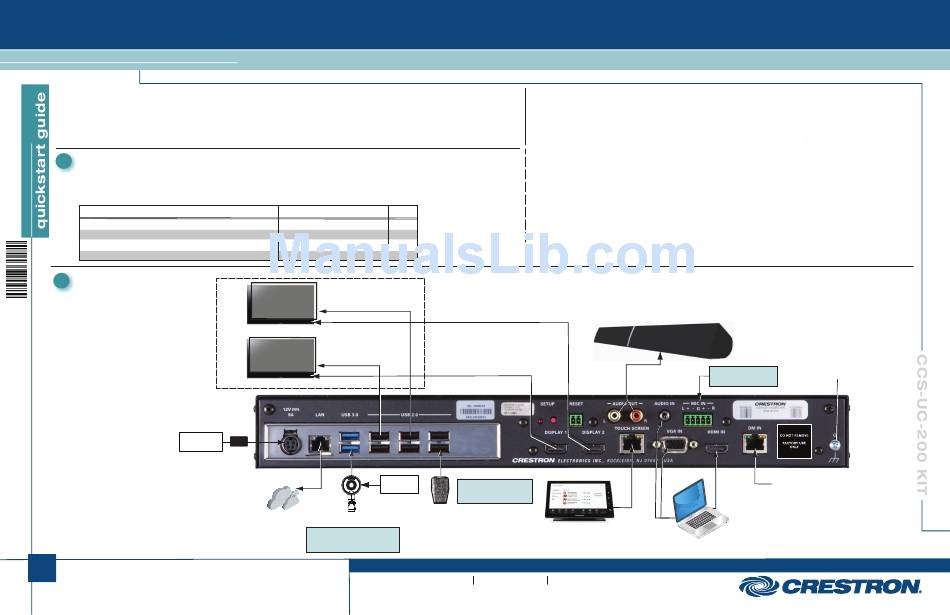

2 Hookup (Typical)
Connecting cables are not supplied.
100-240 V - 1.25 A
50/60 Hz
Input Power
1
For regulatory compliance information, refer to Doc. 7598.
QUICKSTART DOC. 7776B (2043673) 03.16
Crestron RL 2 Integrator Kit
®
PART NUMBER QTY
CCS-UC-CODEC-200
TS-1051-C-B-S
CCS-BRKT-200-RMK
CCS-BRKT-200-UTK
Overlay 2 Touch Screen Displays
Not Supplied
Display
2
Overlay USB 2
HDMI ® IN
Overlay 1
Display
1
Overlay USB 1
HDMI IN
12 Vdc
Corporate
Included
Network
AC Adapter
N
L A
USB Camera
Not Supplied
NOTE: Use the USB 3.0 port only
for the USB camera. Do not connect
other devices to the USB 3.0 port.
www.crestron.com
Specifications subject to
change without notice.
Tools Required
hardware with
®
A #1 or #2 Phillips screwdriver is required for installation.
Codec Mounting and Placement Options
The codec may be placed on a flat surface, mounted into a rack, or mounted under a table using the
following supplied items:
• The codec may be placed on a shelf or other flat surface using the four supplied rubber feet.
• The supplied CCS-BRKT-200-RMK Rack Mount Kit provides a 2U rack mounting option.
• The supplied CCS-BRKT-200-UTK Under Table Kit provides an under-table mounting option.
1
1
1
1
TS-1051-C-B-S
NOTE: Non-USB mics may
be connected to the MIC IN
connector.
USB Mic
(If not using mic
included with camera)
Not Supplied
888.273.7876 201.767.3400
Sound Bar
Sound Bar Not Supplied
Audio to Sound Bar NOTE: Analog mic input
with phantom power
AUDIO VGA HDMI
®
DM
from from from
with
Laptop Laptop Laptop
Audio
User Supplied
Laptop
Sound Bar
Not Supplied
Ground
(Connect to
Building Steel)
.
®
