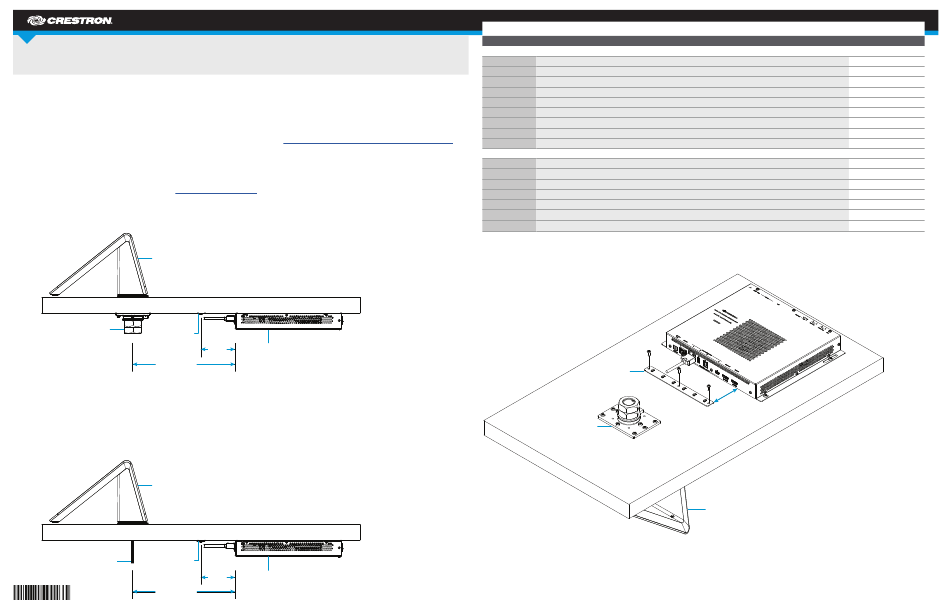

Crestron CCS-UC-300 Do Manual

DO GUIDE
CCS-UC-300
Crestron SR Next Generation Room System for Skype
®
DO Install the Device

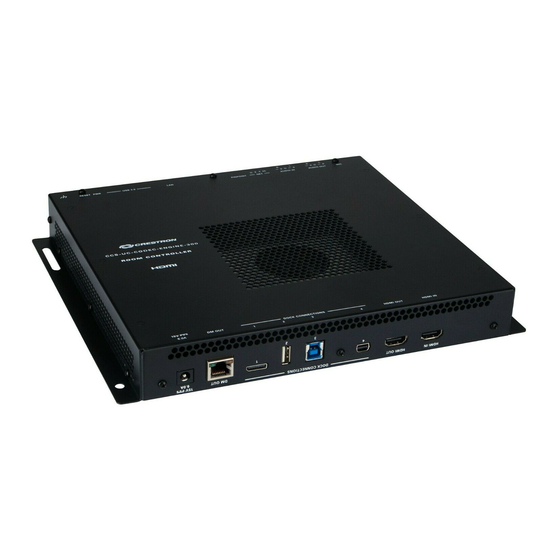

The CCS-UC-300 consists of an enclosure (CCS-UC-CODEC-TS-300) that is secured to a mounting surface such as a table, and an "engine"
(CCS-UC-CODEC-ENGINE) that mounts under the mounting surface. Crestron strongly recommends using the included TS-SMK to install and secure the
enclosure to the mounting surface.
Install the Microsoft Surface Pro 4 Computer in the Enclosure
®
Install the Microsoft Surface Pro 4 tablet in the enclosure as shown in the installation video at https://vimeo.com/crestron/review/215565790/b4c0cf3795.
Position the Enclosure and Engine on a Table
The enclosure can be secured to a surface with the included TS-SMK swivel mount kit (recommended), or placed on a surface.
• Secure the enclosure to the surface with the TS-SMK.
1. Refer to the TS-SMK DO Guide (Doc. 7966) at www.crestron.com/manuals
2. Position and secure the engine to the underside of the mounting surface using four mounting screws (not included). Refer to the following image
when positioning the engine.
NOTE: The engine should be positioned so the DOCK CONNECTIONS ports are no further than 9 inches (228 mm) from the center of the TS-SMK.
Enclosure
TS-SMK Cable
retention plate
9.00 in max
(228 mm)
• Place the enclosure on the surface.
1. Place the enclosure on a mounting surface, within 9 inches (228 mm) of the engine's planned location under the mounting surface as shown in the
following diagram.
2. Drill a 1-1/16-inch (27 mm) hole and feed the cables from the enclosure through the hole.
3. Position and secure the engine to the underside of the mounting surface using four mounting screws (not included). Refer to the following image
when positioning the engine.
NOTE: The engine should be positioned so the DOCK CONNECTIONS ports are no further than 9 inches (228 mm) from the center of the hole
drilled in step 2.
Enclosure
Cable bundle Cable
retention plate
from enclosure
9.00 in max
(228 mm)
for Business
®
for instructions on installing the TS-SMK.
3.00 in Engine
(76 mm)
3.00 in Engine
(76 mm)
DO Check the Box
QUANTITY PRODUCT
CCS-UC-CODEC-ENGINE Only
1 Cable, HDMI, 6' (1.83 m)
1 Cable, HDMI, 20' (6.10 m)
1 Cable, RJ-45 Male - RJ-45 Male, 12' (3.66 m)
1 Power Cord, 6' 7" (2 m)
1 Power Pack, 15 Vdc 6 A, 100-240 Vac
1 Retention Bracket, Cable
1 Retention Plate, Cable
1 Swivel Mount Kit, TS-SMK
6 Tie Wrap
CCS-UC-CODEC-TS-300 Only
1 Cover, Plastic, Cable Exit
2 Foot, Rubber
4 Screw, 0-42 x 1/8", Pan Head, Phillips, PLASTITE
4 Screw, 2-28 x 1/4", Pan Head, Phillips, Thread Forming
10 Screw, 4-20 x 1/4", Pan Head, Phillips, Thread Forming
3 Tie Wrap
1 Tool, Screwdriver
Install the Cable Retention Plate
Install the cable retention plate to the underside of the mounting surface as shown in the following diagram. The cable retention plate should be located
approximately 3 inches (76 mm) from the DOCK CONNECTIONS ports.
Cable retention plate
TS-SMK
COLOR PART NUMBER
2048186
2048185
2033988
2001134
2048306
2048360
2048359
6508254
2047935
2047952
2048005
® 2048142
Black 2007117
2007134
2047935
4526579
3.00 in
(76 mm)
Enclosure
