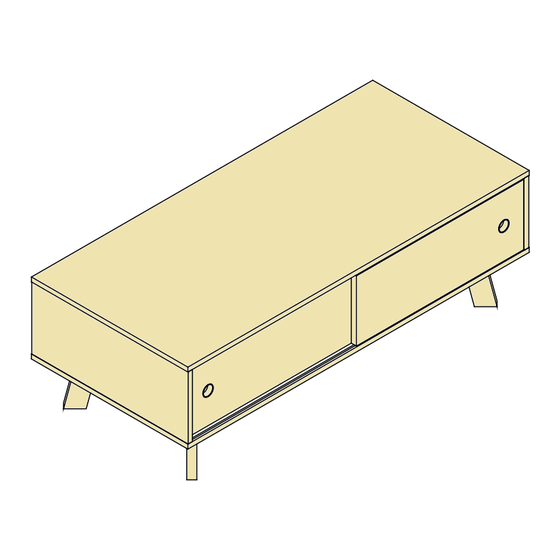

Kirra Coffee Table

Assembly Instructions

Thank you for your purchase.

Please follow the instructions below for correct assembly.

screw

dowel

x12

screw

x64

x20

Hardware Supplied

Phillips & Flathead screwdrivers required.

For quicker assembly, we recommend the

use of a power drill on a low-speed setting.

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558

bolt

locking

nut x6

wheel

WARNING:

Any furniture that is not anchored to a wall has the potential to

tip over in certain circumstances, i.e. if a child attempts to climb up on the

furniture or in the event of an earthquake. Accordingly, we recommend that

all furniture is anchored to a wall. We supply a free safety wall anchor with

all furniture sold and we recommend these are used to prevent your product

tipping. The fixing device provided should fit most wall types, but please

note that different wall materials may require different fixing devices from

those supplied.

Need help?

Do you have a question about the Kirra Coffee Table and is the answer not in the manual?

Page 1 Hardware Supplied Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
Page 2 Insert 6x bolts (C) into panel [1]. Tighten with a screwdriver. Attach panels [3] and [4] to panel [1] with 6x dowels (A) and secure with 6x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
Page 3 Attach panel [2] to the unit with 6x dowels (A) and secure Attach the legs [5] and [8] to panel [2] as shown using 20x screw (F) .Tighten with 6x screws (B). Tighten with a screwdriver. with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
Page 4 Press the clip down on the back of the door to 32x screws (E). Tighten with a screwdriver. assemble the door. Push the clip back up to lock into place. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
