Installation - Wall Mount - 3xLogic VISIX S-Series Installation Manual

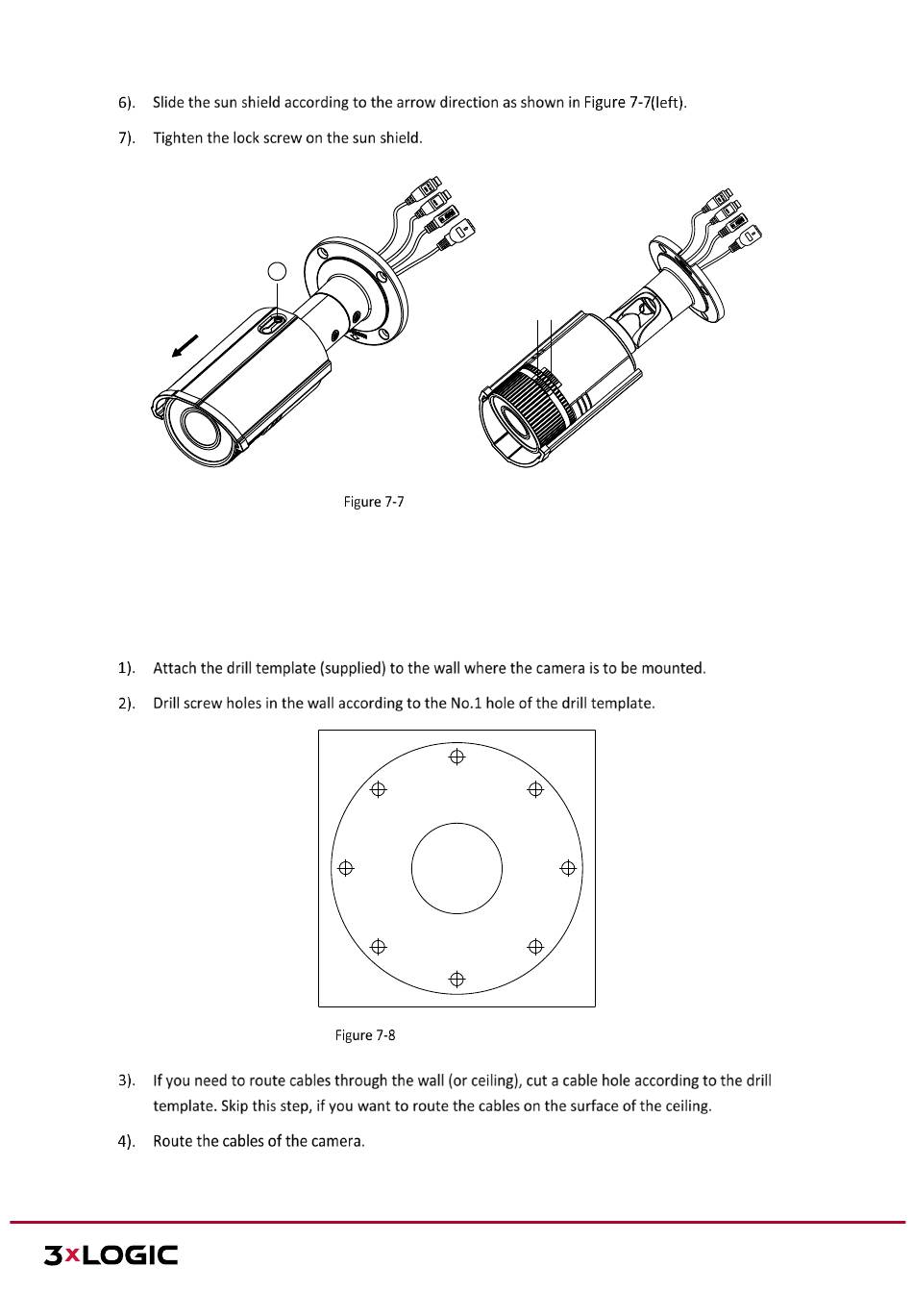

NOTE: For water-proofing, please align the rotating label on the front cover with that on the camera when you
rotate the front cover clockwise. Refer to Figure 7-7 , above (right).
INSTALLATION — WALL MOUNT
Steps:
12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC
Installation Manual v3.1 | VISIX S-Series Network Camera
1
Assemble the Camera
Ceiling Mounting
1
2
1:Screw Hole for
Bracket
1
Drilling Holes in the Wall
Rotating Label
2
1
2
2:Screw Hole for
Mounting Base
1
2
