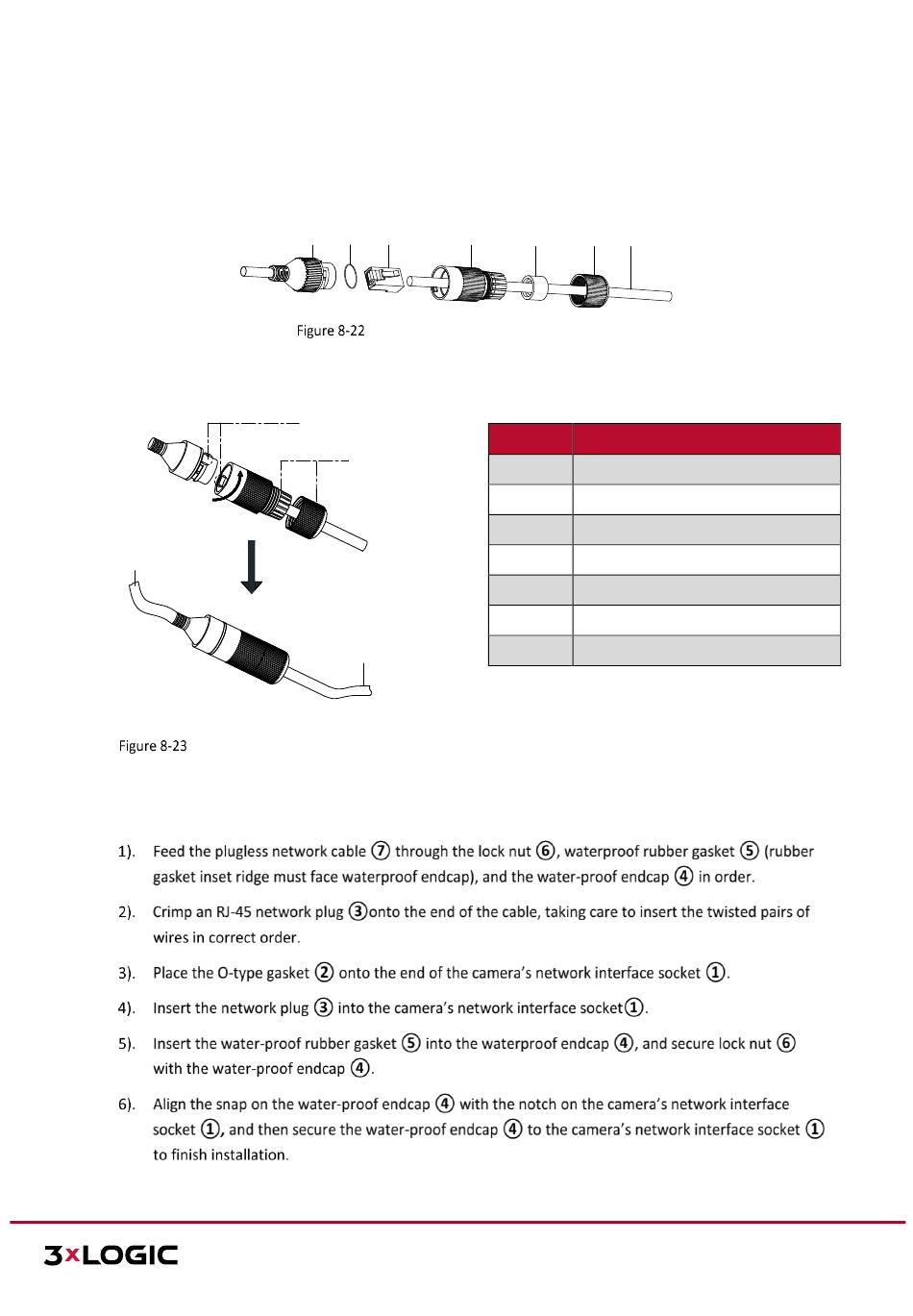

8.2 Waterproof Network Cable Jacket (Optional)

If the camera is installed outdoor, you can adapt the water-proof accessory for the network cable after the
camera is secured on the installation surface.

ACCESSORY COMPONENTS

Align the snap and notch.
Camera
Waterproof Accessory Installation
INSTALLATION — WATERPROOF ACCESSORY
Steps:
12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC
Installation Manual v3.1 | VISIX S-Series Network Camera
① ②
③
Waterproof Accessory Components
i. Insert into .
⑤ ④
ii. Secure with .
⑥ ④
Switch/Router
④
⑤
⑥ ⑦
Number Components
1 Camera's Network Interface Socket
2 O-Type Gasket
3 Network Plug
4 Waterproof Endcap
5 Waterproof Rubber Gasket
6 Lock Nut
Network Cable from Router/Switch
7
