Eaton Cooper Power Series Installation, Operation And Maintenance Instructions
Pad-mounted switchgear sf6-insulated, vacuum break switch
Hide thumbs
Also See for Cooper Power Series:
- Installation, operation and maintenance manual (189 pages) ,
- Installation, operation and maintenance instructions (128 pages) ,
- Installation and operation instructions manual (52 pages)
Subscribe to Our Youtube Channel
Related Manuals for Eaton Cooper Power Series
Summary of Contents for Eaton Cooper Power Series

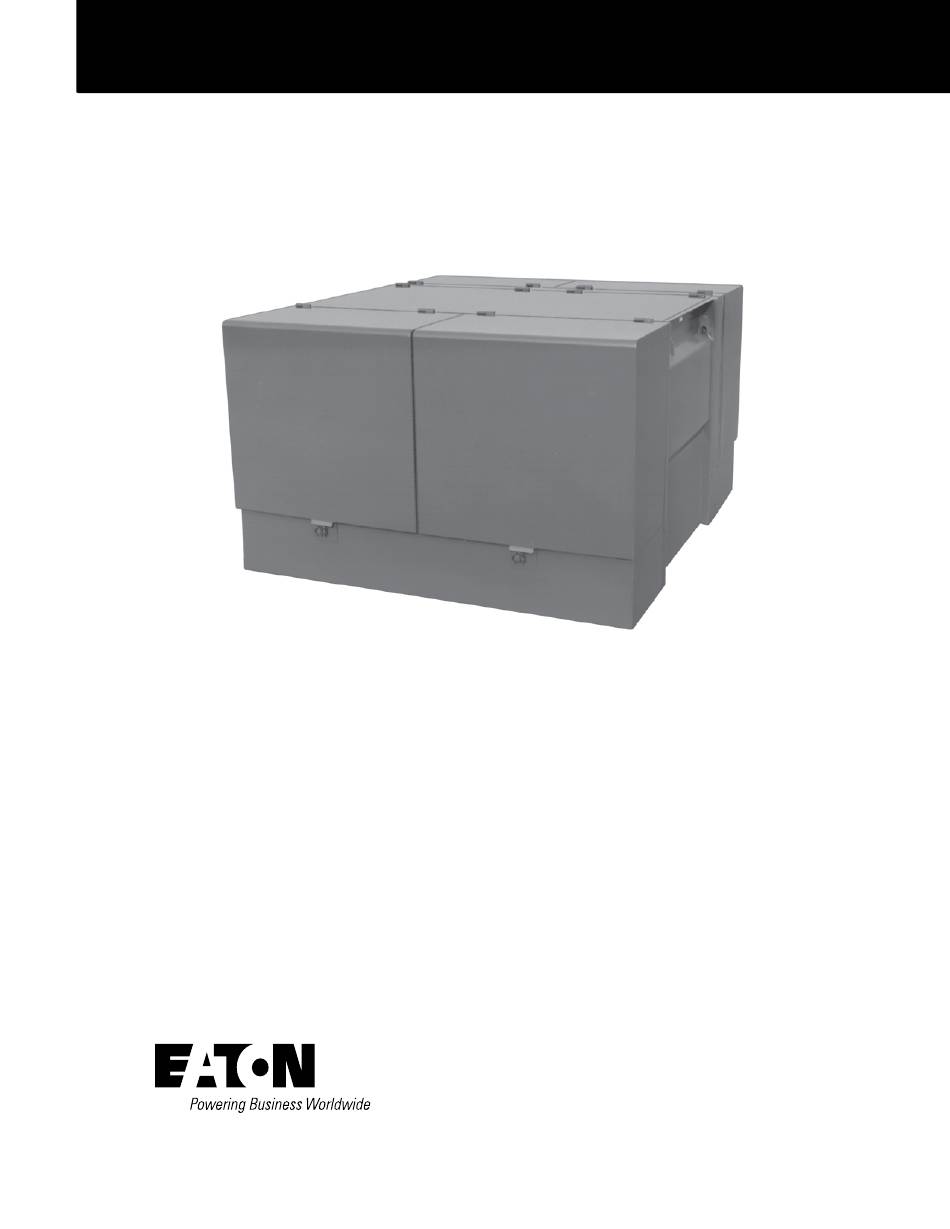

- Page 1 COOPER POWER Pad-mounted Switchgear SERIES Effective September 2015 MN285003EN Supersedes S285-50-2 June 2003 RVAC, SF 6 -insulated, vacuum break switch; installation, operation, and maintenance instructions...
- Page 2 CONTENTS OF THIS DOCUMENT SHALL NOT BECOME PART OF OR MODIFY ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or other- wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to damage or...
-
Page 3: Table Of Contents
Contents SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv Safety instructions . -
Page 4: Safety Information
FOR LIFE FOR LIFE Eaton meets or exceeds all applicable industry standards relating to product safety in its Cooper Power™ series products. We actively promote safe practices in the use and maintenance of our products through our service literature, instructional training programs, and the continuous efforts of all Eaton employees involved in product design, manufacture, marketing, and service. -
Page 5: Product Information
Service Information MN285003EN provides installation RVAC switchgear is designed and tested in accordance with instructions, operation information, maintenance procedures, IEEE Std C37.74™-2003 standard. and testing information for Eaton's Cooper Power™ series RVAC, SF insulated, pad-mounted vacuum switchgear. Quality standards The information contained in this manual is organized into... - Page 6 Bushings If 600 amp deadbreak aluminum type bushings are furnished, they conform to IEEE Std 386™ standard (latest version). 200 amp interfaces are provided with either 200 amp bushing wells or 200 amp one-piece 35 kV bushings; both conform to IEEE Std 386™...
- Page 7 Standard features Switch-operating handles Standard features (refer to Figure 4) include SF 6 pressure WARNING gauge and fill port, operation one-line diagrams on the doors, and a standoff bracket for each bushing. Standard Hazardous voltage . Never rely on the open position of ground provisions include a 1/2-13 UNC stainless steel the operating handle or the contact position indicator;...
-
Page 8: Installation Procedure
Installation procedure CAUTION WARNING Equipment damage . Never place jacks, tackle or other attachments under the unit for the purpose of lifting . This equipment is not intended to protect human Failure to comply will result in damage to the equipment . life . -
Page 9: Operation
Operation DANGER Hazardous voltage . Contact with hazardous voltage will cause death or severe personal injury . Follow all locally approved safety procedures when working around high- and low-voltage lines and equipment . G103 .3 WARNING Hazardous voltage . Never rely on the open position of the operating handle or the contact position indicator;... -
Page 10: Maintenance Information
(SF 6 ) creates toxic by-products . Avoid breathing SF 6 that has been exposed to electrical arcing . Suitable If SF 6 must be added, contact your Eaton representative protective clothing must be worn to avoid contact with... -
Page 11: Sf 6 Gas Analysis
SF 6 gas analysis negligible . However, above these voltages, radiation SF 6 gas analysis is available for Eaton's Cooper Power injurious to personnel can be emitted . See Service series pad-mounted switchgear products. Contact your... - Page 12 Waukesha, WI 53188 Eaton.com/cooperpowerseries © 2015 Eaton All Rights Reserved Eaton is a registered trademark. For Eaton's Cooper Power series Printed in USA RVAC switch product information, Publication No. MN2825003 / September 2015 All trademarks are property call 1-877-277-4636 or visit: KA2048-383 Rev: 02 of their respective owners.
