600 A 35 kV Class T-OP II connector assembly
installation instructions
PROTECTIVE CAP
COMPRESSION
Effective May 2017
Supersedes July 2009 (S600-52-1)
200 A
LRTP
CONNECTOR
TEST POINT
COOPER POWER
T-BODY
CABLE
ADAPTER
SERIES

Advertisement

Table of Contents
loading

Summary of Contents for Eaton Cooper Power Series

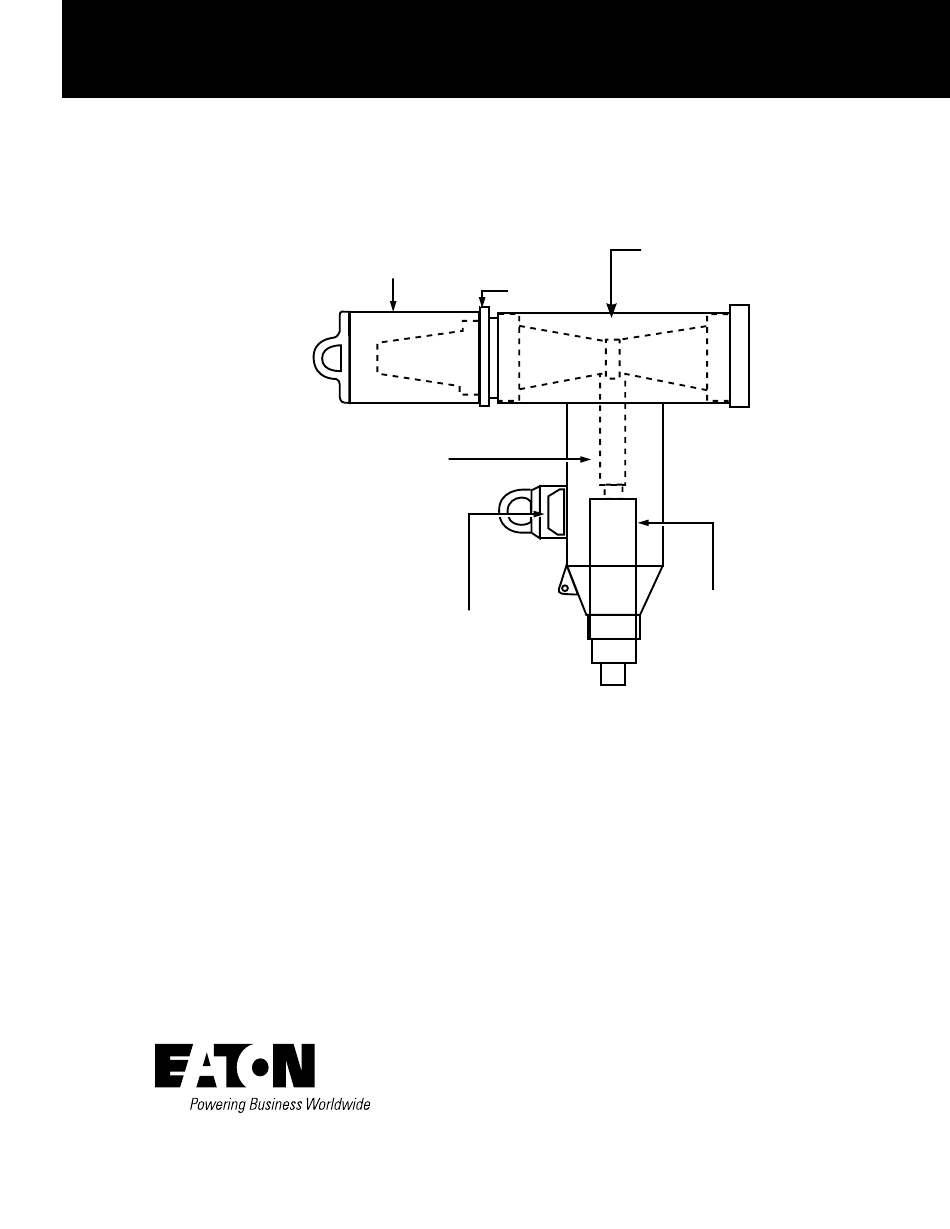

  • Page 1 COOPER POWER Deadbreak Apparatus Connectors SERIES Effective May 2017 MN650051EN Supersedes July 2009 (S600-52-1) 600 A 35 kV Class T-OP II connector assembly installation instructions 200 A T-BODY PROTECTIVE CAP LRTP COMPRESSION CONNECTOR CABLE ADAPTER TEST POINT...
  • Page 2 CONTENTS OF THIS DOCUMENT SHALL NOT BECOME PART OF OR MODIFY ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or other-wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to...
  • Page 3: Table Of Contents

    Contents DISCLAIMER OF WARRANTIES AND LIMITATION OF LIABILITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I SAFETY FOR LIFE .
  • Page 4: Safety For Life

    FOR LIFE FOR LIFE Eaton’s Cooper Power series products meet or exceed all applicable industry standards relating to product safety. We actively promote safe practices in the use and maintenance of our products through our service literature, instructional training programs, and the continuous efforts of all Eaton employees involved in product design, manufacture, marketing and service.
  • Page 5: Product Information

    Introduction death or severe personal injury . All associated apparatus must be de-energized during any hands-on installation The Eaton Cooper Power series 600 A, 35 kV Class T-OP or maintenance . II Deadbreak Connectors are used to terminate high voltage underground cables to deadfront ap pa ra tus such WARNING as transformers, switches, and switchgear.
  • Page 6: Prepare The Cable

    600 A 35 kV Class T-OP II connector assembly installation instructions Tools Pull back concentric neutral wires. Allow enough ● ● ● ● extra concentric neutral wires to connect to ground 1/2” Wrench ● ● after installation and allow movement to insulated Torque Tool (Catalog Number TQHD635) standoff bushing.
  • Page 7 600 A 35 kV Class T-OP II connector assembly installation instructions only positive tolerance CABLE ADAPTER LUBRICATE INSULATION 4 3/8 + 1/4" (111 mm + 7 mm) BARE INSULATION TAPE MARKER TAPE MARKER CONDUCTOR LUBRICATE Figure 5 . Line illustration of bare conductor length Figure 8 .
  • Page 8: Install T-Body And Reducing Tap Plug

    600 A 35 kV Class T-OP II connector assembly installation instructions Step 9 Install T-body and reducing tap plug Install compression connector Step 11 ote: Refer to chart supplied with the crimp connector for tool and die to be used. Install T-body Wire brush conductor, only if it is aluminum.
  • Page 9: Install T-Op Ii Connector Onto Apparatus Bushing

    600 A 35 kV Class T-OP II connector assembly installation instructions Install T-OP II connector onto apparatus bushing T-BODY T-WRENCH Step 13 Install stud into apparatus bushing Ensure unit is de-energized. ote: LRTP CLEAN Thread the shorter threaded end of T-OP II stud into the ●...
  • Page 10 600 A 35 kV Class T-OP II connector assembly installation instructions 600 A LRTP 200 A 200 A PROTECTIVE T-BODY INTERFACES INTERFACE HOTSTICK T-BODY APPARATUS O & T TOOL CLEAN BUSHING LUBRICATE CONCENTRIC NEUTRAL WIRES CONCENTRIC NEUTRAL WIRES Figure 16 . Line illustration of installing T-OP II T-body onto apparatus bushing Option B - Installing t-OP II T-body on apparatus bushing Figure 17 .
  • Page 11 600 A 35 kV Class T-OP II connector assembly installation instructions This page intentionally left blank. INSTALLATION INSTRUCTIONS MN650051EN May 2017...
  • Page 12 2300 Badger Drive Waukesha, WI 53188 United States Eaton.com/cooperpowerseries © 2017 Eaton All Rights Reserved Eaton is a registered trademark. For Eaton’s Cooper Power series product Printed in USA information Publication No. MN650051EN call 1-877-277-4636 or visit: All trademarks are property www.eaton.com/cooperpowerseries.
