Form 6 NX-T/LS microprocessor-based pole-mount recloser control
installation and operation instructions
COOPER POWER
Effective July 2018
Supersedes April 2018
SERIES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COOPER POWER Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton COOPER POWER Series

Summary of Contents for Eaton COOPER POWER Series

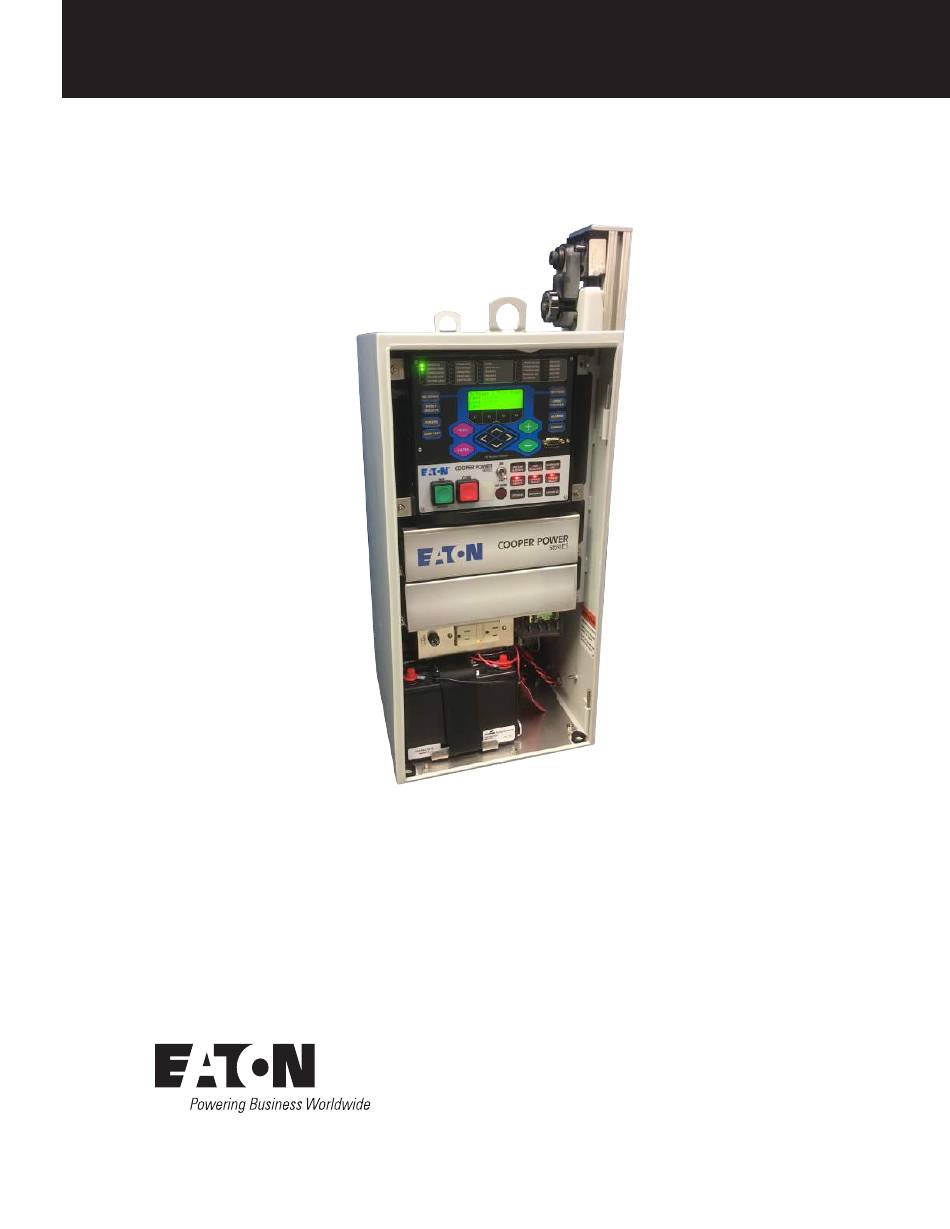

  • Page 1 COOPER POWER Reclosers SERIES Effective July 2018 MN280089EN Supersedes April 2018 Form 6 NX-T/LS microprocessor-based pole-mount recloser control installation and operation instructions...
