Eaton Cooper Power Series Installation Instructions Manual
Deadbreak protective cap, deadbreak apparatus connectors
Hide thumbs
Also See for Cooper Power Series:
- Installation, operation and maintenance manual (189 pages) ,
- Installation, operation and maintenance instructions (128 pages) ,
- Installation and operation instruction manual (52 pages)
Related Manuals for Eaton Cooper Power Series
Summary of Contents for Eaton Cooper Power Series

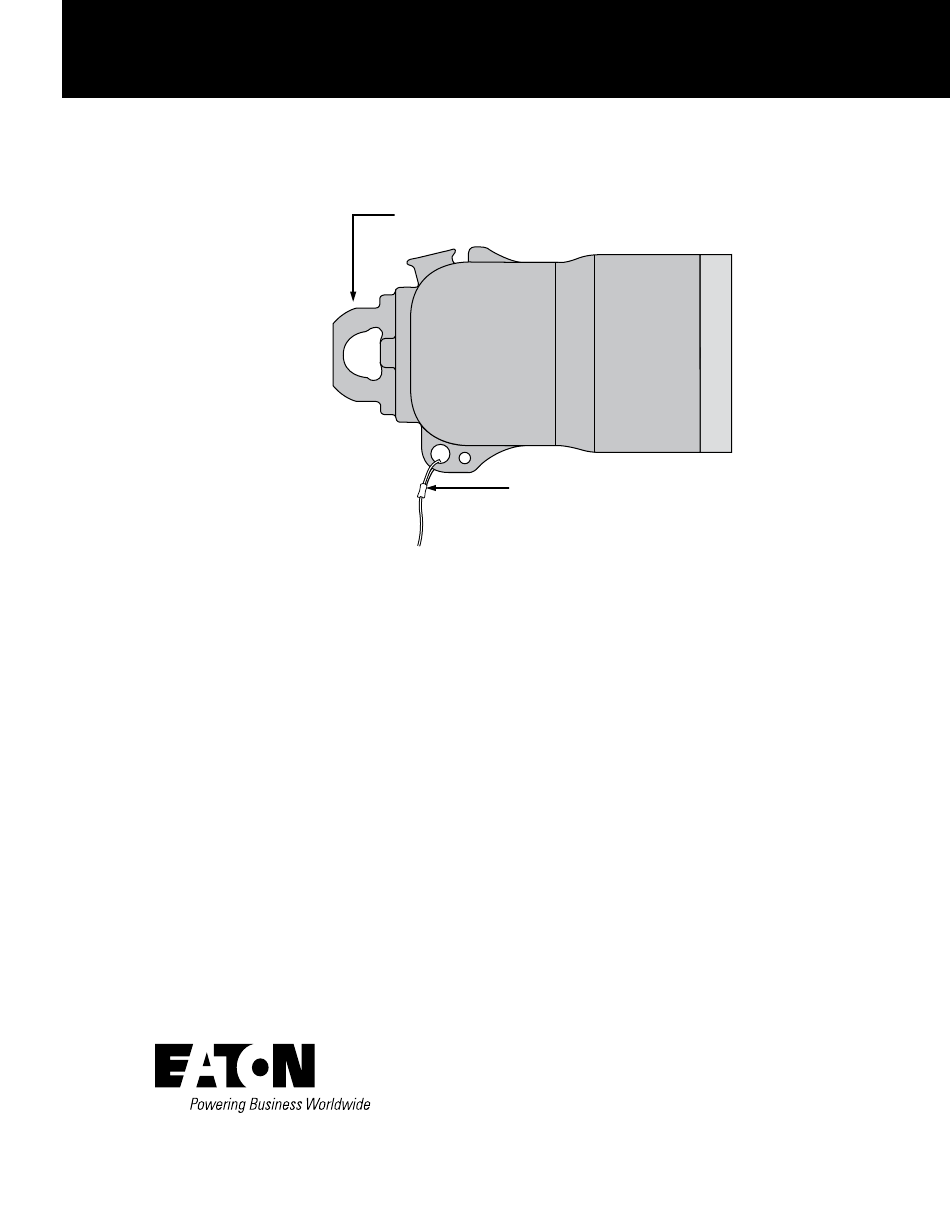

- Page 1 COOPER POWER Deadbreak Apparatus Connectors SERIES Effective May 2017 MN650054EN Supersedes June 2010 (S600-63-1) 600 A 15/25 and 35 kV class deadbreak protective cap installation instructions PULLING EYE DRAIN WIRE...
- Page 2 CONTENTS OF THIS DOCUMENT SHALL NOT BECOME PART OF OR MODIFY ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or other-wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to...
- Page 3 Contents DISCLAIMER OF WARRANTIES AND LIMITATION OF LIABILITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I SAFETY FOR LIFE .
-
Page 4: Safety For Life
FOR LIFE FOR LIFE Eaton’s Cooper Power series products meet or exceed all applicable industry standards relating to product safety. We actively promote safe practices in the use and maintenance of our products through our service literature, instructional training programs, and the continuous efforts of all Eaton employees involved in product design, manufacture, marketing and service. -
Page 5: Product Information
. Failure to comply could result in death, severe personal injury and equipment damage . CAUTION The Eaton Cooper Power series 600 A Deadbreak Protective Cap Assembly is designed to be operated in accordance with normal safe operating procedures . -
Page 6: Installation Procedures
600 A 15/25 and 35 kV class deadbreak protective cap installation instructions Installation procedures Installation instructions No special tools are required. A hotstick tool is used to place the protective cap on a de-energized bushing. Standard insulated protective cap kit Insulated Protective Cap WARNING ●... - Page 7 600 A 15/25 and 35 kV class deadbreak protective cap installation instructions This page intentionally left blank. INSTALLATION INSTRUCTIONS MN650054EN May 2017...
- Page 8 2300 Badger Drive Waukesha, WI 53188 United States Eaton.com/cooperpowerseries © 2017 Eaton All Rights Reserved Eaton is a registered trademark. For Eaton’s Cooper Power series product Printed in USA information Publication No. MN650054EN call 1-877-277-4636 or visit: All trademarks are property www.eaton.com/cooperpowerseries.
