EVAL-M1-IM240-A User Manual
iMOTION™ Modular Application Design Kit
Main features of EVAL-M1-IM240-A
2.1
EVAL-M1-IM240-A board specifications

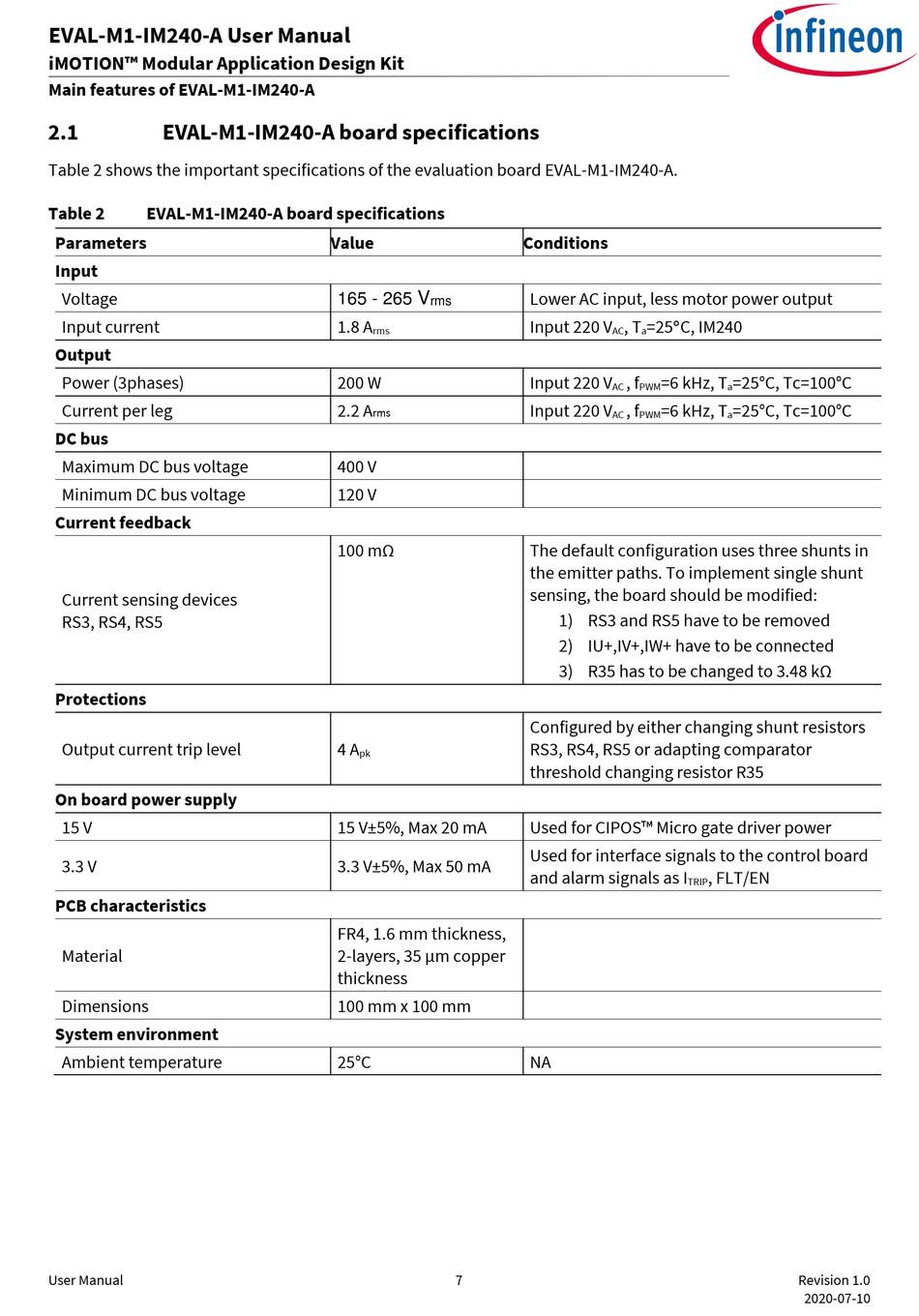

Table 2 shows the important specifications of the evaluation board EVAL-M1-IM240-A.
Table 2
EVAL-M1-IM240-A board specifications
Parameters
Input
Voltage
Input current
Output
Power (3phases)
Current per leg
DC bus
Maximum DC bus voltage
Minimum DC bus voltage
Current feedback
Current sensing devices
RS3, RS4, RS5
Protections
Output current trip level
On board power supply
15 V
3.3 V
PCB characteristics
Material
Dimensions
System environment
Ambient temperature
User Manual
Value
V
165 - 265
rms
1.8 A
rms
200 W
2.2 A
rms
400 V
120 V
100 mΩ
4 A
pk
15 V±5%, Max 20 mA
3.3 V±5%, Max 50 mA
FR4, 1.6 mm thickness,
2-layers, 35 µm copper
thickness
100 mm x 100 mm
25°C
7
Conditions
Lower AC input, less motor power output
Input 220 V
, T
=25C, IM240
AC
a
Input 220 V
, f
=6 kHz, T
AC
PWM
Input 220 V
, f
=6 kHz, T
AC
PWM
The default configuration uses three shunts in
the emitter paths. To implement single shunt
sensing, the board should be modified:
1) RS3 and RS5 have to be removed
2) IU+,IV+,IW+ have to be connected
3) R35 has to be changed to 3.48 kΩ
Configured by either changing shunt resistors
RS3, RS4, RS5 or adapting comparator
threshold changing resistor R35
Used for CIPOS™ Micro gate driver power
Used for interface signals to the control board
and alarm signals as I
TRIP
NA
=25°C, Tc=100°C
a
=25°C, Tc=100°C
a
, FLT/EN
Revision 1.0
2020-07-10
