EVAL-M1-IM240-A User Manual
iMOTION™ Modular Application Design Kit
Schematics and layout

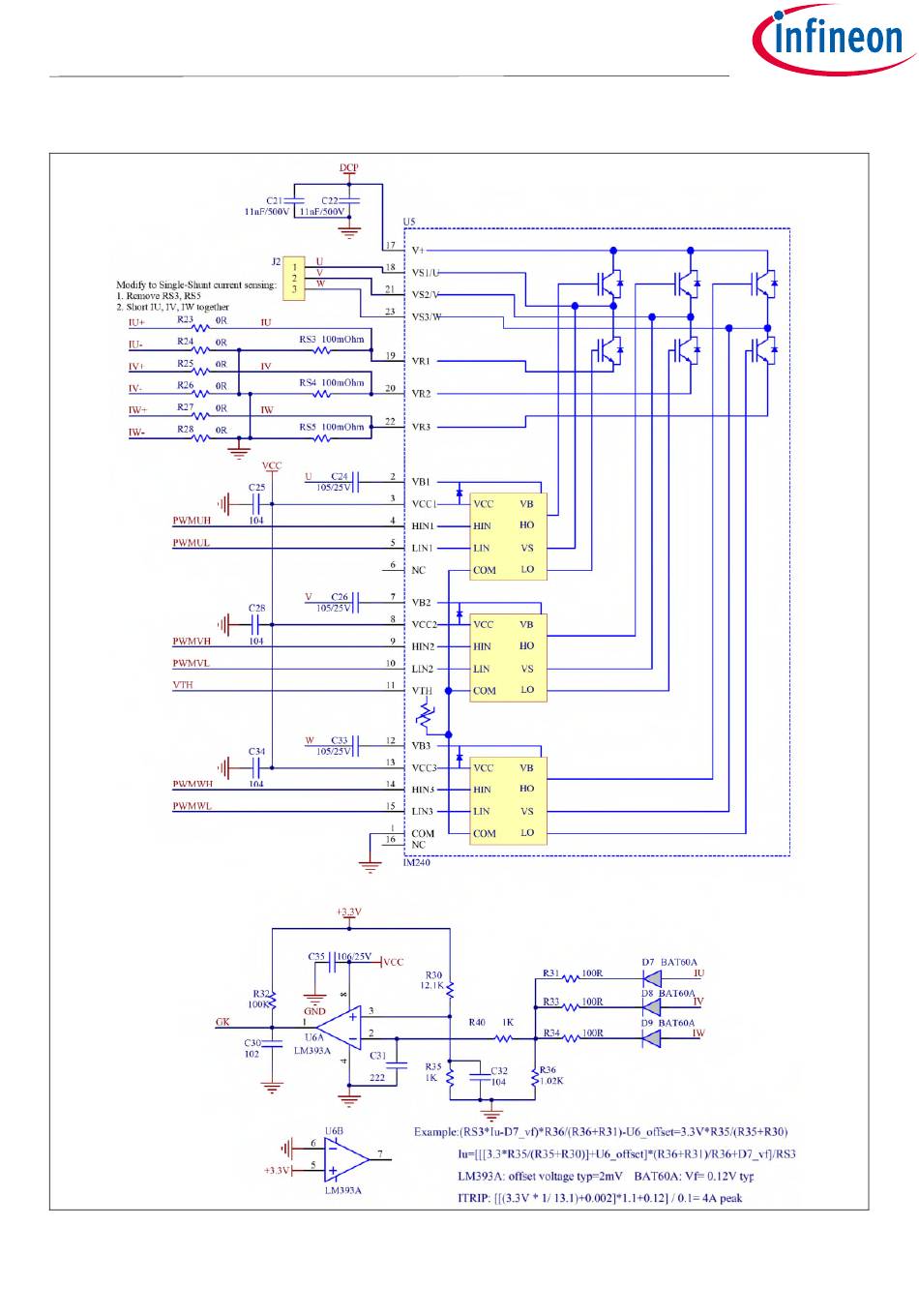

The inverter section schematic for EVAL-M1-IM240-A is provided in Figure 23.
Figure 23
The inverter section schematics for EVAL-M1-IM240-A evaluation board
User Manual
26
Revision 1.0
2020-07-10
