For Use with the Following Commercial and Steelheart Series:
Check to ensure that all parts are included:
Index
No. Description
1
Heated Condensate Pan
2
Condensate Pan Bracket
3
Wire Harness Receptacle
4
Self-Drilling Hex Screw
• Only qualified service technicians should install and service the appliance to reduce the risk of death, electric
shock, serious injury, or fire.
• No installation or service should be undertaken until the technician has thoroughly read these instructions.
Failure to follow these instructions will adversely affect safety, performance, component life and warranty
coverage, and may result in costly water damage.
• See the instruction manual included with the appliance for installation instructions and safety information not
covered in this instruction sheet. If an instruction manual is not available, visit www.hoshizaki.com or contact
your Hoshizaki distributor.
• Appliance is heavy. Use care when lifting or positioning. Work in pairs when needed to prevent injury or
damage.
• To reduce the risk of electric shock, do not touch the plug with damp hands. Unplug the appliance from the
electrical outlet before servicing.
• Protect the floor when moving the appliance to prevent damage to the floor.
• Wear proper personal protection equipment (PPE) when executing these procedures.
A. Installation Instructions for CPT and PR Models
1) On existing models, unplug the appliance from the electrical outlet, then remove all product from the appliance.
2) Move the appliance out to access the rear of the appliance, then lock the casters.
3) On new appliance installation, from the instruction manual, follow and complete all of the installation instructions up to section
"II.E. Door/Drawer Reversal".

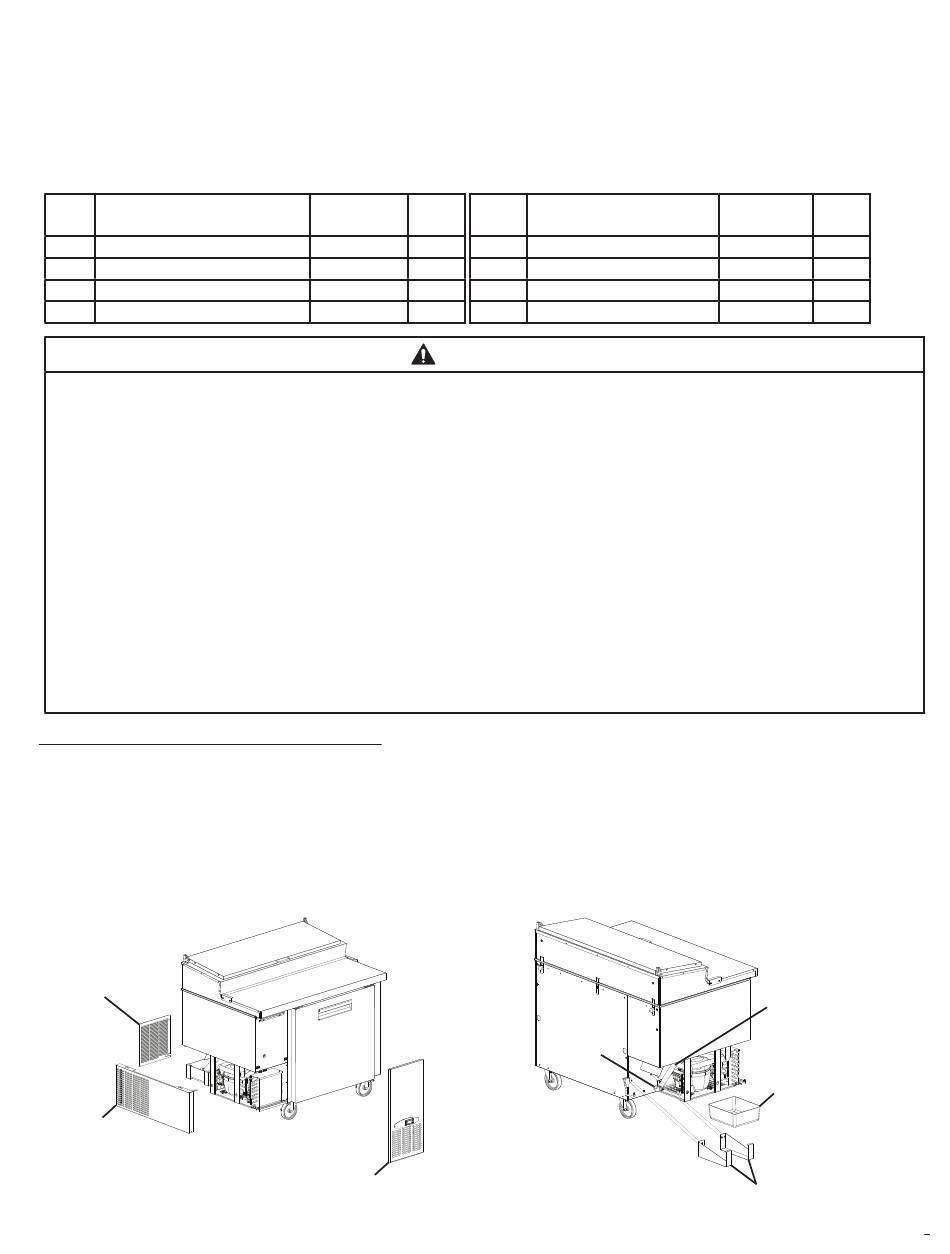

4) Remove the front, left side, and rear louver panels. See Fig. 1. Next, remove the current condensate pan and condensate pan
brackets as shown in Fig. 2 and discard, then remove the condensate drain hose. Note: Remove elbow from condensate drain hose
for re-use, then discard condensate hose.
Rear Louver
Panel
Left Side
Panel
Hoshizaki Heated Condensate Pan Kit
A. CPT and PR Models: 46, 67, and 93
B. Freezer and Prep Table Models: 48, 60, and 72
Part
Number
3B0185-01
2A9087-01
4A6049-01
7B03I1210
Front Panel
Fig. 1
HS-5453
Index
Qty
No.
Description
1
5
Condensate Drain Hose 4A0658L01
1
6
Nylon Ties
1
7
Bell Connector
4
8
Wiring Label
WARNING
Elbow
Model Shown: PR46A
1
Part
Number
8911-0200
8101-14CE
3B0188-01
Condensate
Drain Hose
Current
Condensate Pan
Current Condensate
Fig. 2
Pan Bracket
Qty
1
4
3
1
2A9096-010
