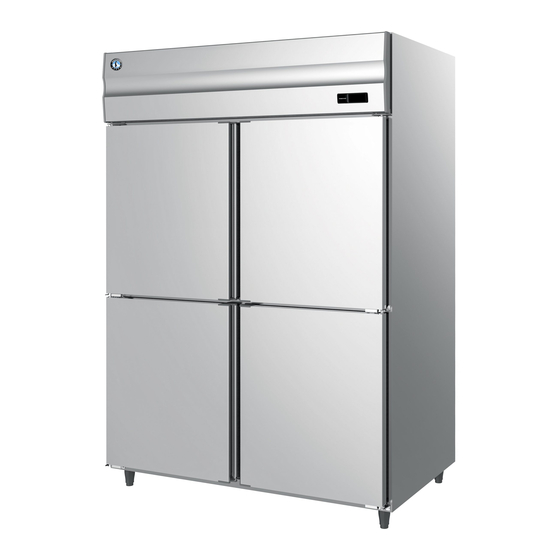

COMMERCIAL REFRIGERATOR/FREEZER
INSTRUCTION MANUAL
● This booklet is an integral and essential part of the product and should be kept
and preserved by the user.
● Please read carefully the guidelines and warnings contained herein as they are
intended to provide the installer/user with essential information for the proper
installation and the continued safe use and maintenance of the product.
● Please preserve this booklet for any further consultation that may be necessary.
Manufacturer:
HR/HF-128MA-A
HR-78MA-A
HR-128MA-A
HR-148MA-A
HR-188MA-A
HF-78MA-A
HF-128MA-A
HF-148MA-A
HF-188MA-A
HRF-78MA-A
HRF-128MA-A
HRF-148MA-A
HRF-188MA-A
L1R590111 (092019)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hoshizaki HR-78MA-A
Summary of Contents for Hoshizaki HR-78MA-A

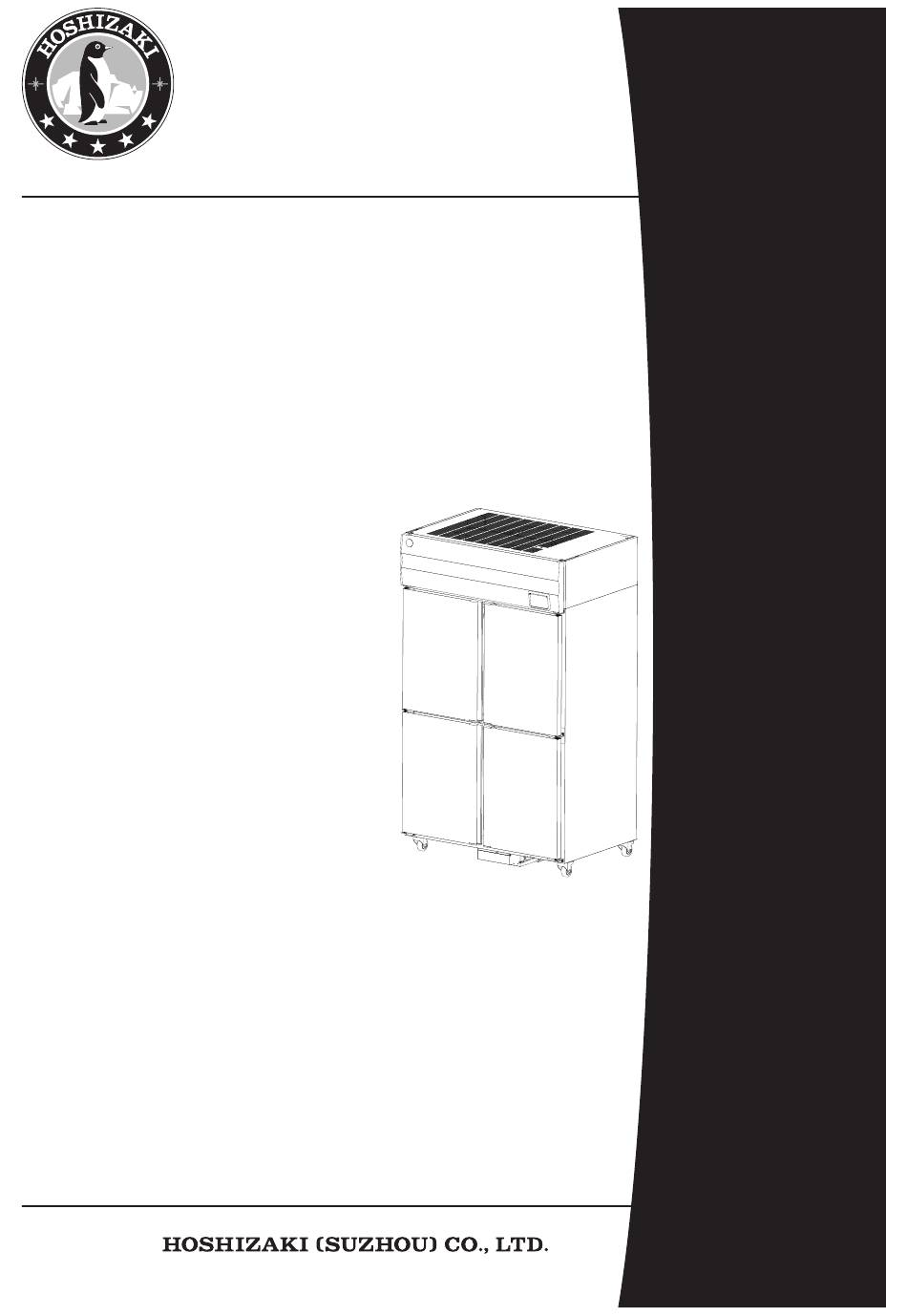

- Page 1 HR-78MA-A COMMERCIAL REFRIGERATOR/FREEZER HR-128MA-A HR-148MA-A HR-188MA-A HF-78MA-A INSTRUCTION MANUAL HF-128MA-A HF-148MA-A HF-188MA-A HRF-78MA-A HRF-128MA-A HRF-148MA-A HRF-188MA-A HR/HF-128MA-A ● This booklet is an integral and essential part of the product and should be kept and preserved by the user. ● Please read carefully the guidelines and warnings contained herein as they are intended to provide the installer/user with essential information for the proper installation and the continued safe use and maintenance of the product.
-
Page 2: Table Of Contents
ENGLISH I. INSTALLATION INSTRUCTIONS ......................1 1. CONSTRUCTION (HR-128MA-A) ....................1 2. ACCESSORIES ..........................1 3. LOCATION ...........................1 4. SET UP ............................2 5. SHELF AND RAIL .........................3 [a] SHELF AND SHELF CLIP (standard) ..................3 [b] RAIL (customized) ........................4 [c] HANGER (customized) ......................4 6. ELECTRICAL CONNECTIONS ....................4 7. -
Page 3: Construction (Hr-128Ma-A)
ENGLISH WARNING I. INSTALLATION INSTRUCTIONS Do not wet this product or use it in potentially wet conditions. This may 1. CONSTRUCTION (HR-128MA-A) cause electric leakage, resulting in electric shock or fire. Keep Dry Machine Compartment IMPORTANT Refrigeration Unit 1. This is a commercial refrigerator/freezer and should be destined only yo be used f o r t h e p u r p o s e f o r w i t c h i t h a s b e e n Front Panel... -
Page 4: Set Up
ENGLISH 3) Fix the two rear shakeproof fittings to the floor. 4) Mount the refrigerator/freezer on the fixed MIN: 30cm shakeproof fittings. 5) Fix the front shakeproof fittings. * Locate and orient the fittings to optimize the function of the anchor bolts. * The shakeproof legs will raise the height by about 5 mm. -
Page 5: Shelf And Rail
ENGLISH 5. SHELF AND RAIL 4) Position the unit in a selected site. [a] SHELF AND SHELF CLIP (standard) 5) Clean the interior with a soft cloth soaked in cold or w arm water containing t he p roper amount of * The shelf is adjustable in 2.5 cm increments. -
Page 6: [B] Rail (Customized)
ENGLISH [b] RAIL (customized) [c] HANGER (customized) * To attach the rail, (1) push the rail hook backwards to fit into the square hole in the rear shelf post, and (2) push the rail hook down to fit into the square hole in the front shelf post. -
Page 7: Operating Instructions
ENGLISH II. OPERATING INSTRUCTIONS 3. When installing more than two units, do not interconnect their drain hoses. If the interconnection is necessary, provide an air IMPORTANT inlet per unit. 1. B e c a r e f u l n o t t o w e t t h e m a c h i n e compartment. -
Page 8: Start Up
ENGLISH 14. Moist or fresh foods and those with a strong smell like seafood should be wrapped up in a plastic film or packed in a container. Otherwise the foods may dry up or give their smells to other foods. 15. -
Page 9: Defrost
ENGLISH 2) Under normal operating conditions, press the set Average Cabinet Temperature key for 3 seconds to enter the user menu. When the screen displays “St”, press the set key again. The screen displays the value of “St”. It could be modified by pressing the up or down key (see IMPORTANT 2). -
Page 10: Maintenance
ENGLISH Immediately stop using such solutions if they cause 3) When preparing the unit for long storage, clean any problems the cabinet interior and door gaskets, dry them thoroughly and store the unit in a dry place. * The door gasket and its contact surface get soiled easily. -
Page 11: Before Calling A Service Agent
3. Do not attempt to repair the unit yourself. 5. WARRANTY [a] TROUBLES WITH ERROR CODE INDICATION Hoshizaki warrants to the original owner/user that all Code Possible Cause Remedy Hoshizaki branded products shall be free of defects Cabinet sensor... - Page 12 5 Toogood Avenue, Beverley SA 5009 Australia Tel: +61 8-8268-1388 Fax: +61 8-8268-1978 info@hoshizaki.com.au http://www.hoshizaki.com.au To register your product for warranty with Hoshizaki, visit http://www.hoshizaki.com.au/warranty-registration Lancer or scan the QR code. Manufacturer: No. 15 Qingqiu Street, Suzhou Industrial Park, Suzhou 215126 China...
