Summary of Contents for Hoshizaki HBB-3-69

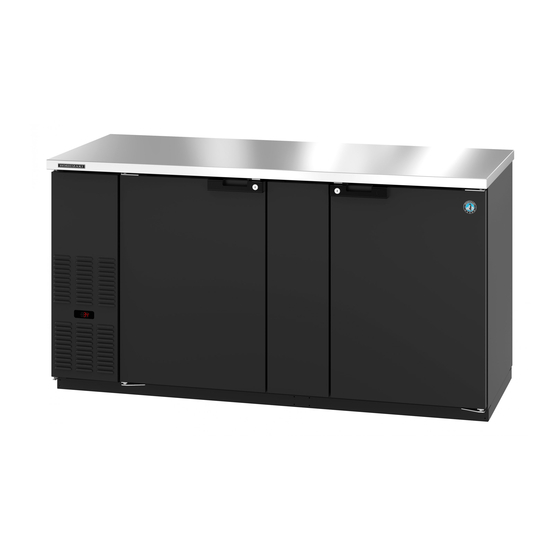

- Page 1 Instruction Manual Back Bar Equipment Models HBB-2-59 (-S) HBB-3-69 (-S) HBB-3-80 (-S) HBB-4-95 (-S) HBB-2G-LD-59 (-S) HBB-3G-LD-69 (-S) HBB-3G-LD-80 (-S) HBB-4G-LD-95 (-S) Issued: 08-04-2018 hoshizakiamerica.com Revised:...
- Page 2 WARNING Only qualified service technicians should install and service the appliance. To obtain the name and phone number of your local Hoshizaki Certified Service Representative, visit www.hoshizaki.com. No installation or service should be undertaken until the technician has thoroughly read this Instruction Manual.
-
Page 3: Table Of Contents
IMPORTANT This manual should be read carefully before the appliance is serviced. Read the warnings and guidelines contained in this manual carefully as they provide essential information for the continued safe use, service, and maintenance of the appliance. Retain this manual for any further reference that may be necessary. CONTENTS IMPORTANT SAFETY INFORMATION .............. -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury, damage to the appliance, or damage to property. WARNING Indicates a hazardous situation which could result in death or serious injury. - Page 5 WARNING, continued • The appliance is designed only for storage and display of non-potentially- hazardous bottled or canned products only. Employ sanitary methods. Use for any other purposes (for example, storage of chemicals or medical supplies such as vaccine and serum) could cause deterioration of stored items. •...
- Page 6 NOTICE • Protect the floor when moving the appliance to prevent damage to the floor. • Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Blockage of airflow could negatively affect performance and damage the appliance. •...
-
Page 7: Installation
INSTALLATION 1.1 General information 1.2 Transport, handling, unpacking, location. 1.3 Intended use and restrictions. 1.4 Manufacturer’s identification label description. 1.5 Installation and assembly. 1.6 Connections (electric, gas, water) 1.1 General information You can find the following symbols, or stickers to identify some type of warnings or useful information about your equipment. -
Page 8: Intended Use And Restrictions
1.3 Intended use and restrictions HOSHIZAKI equipment is not designed for personal, family, or household purposes, and its sale for such purposes is not intended. In the event the equipment is so used, this warranty shall be null and void, and the equipment is so used, this warranty shall be null and void, and the equipment shall be deemed to have been sold “as is-where is”... -
Page 9: Installation And Assembly
1.5 Installation and assembly This appliance is intended for indoor use only. Be sure the location chosen has a floor strong enough to support the total weight of the unit and contents. For the most efficient operation, be sure to provide good air circulation inside and outside of the unit. INSIDE CABINET The first cleaning must be made when you unpack the unit and before switching it on. -
Page 10: Operation
OPERATION 2.1 General information. 2.2 Control panel description. 2.3 Machine settings and programs. 2.1 General Information Good air flow inside the cabinet is critical. Do not block the air outlet or the evaporator fan grill. A minimum of 2 inches of space along the front, back, and sides is required for proper air flow. -
Page 11: Machine Settings And Programs
Verify you don't have any alarms on the controller. If after you turn ON the equipment the controller shows an alarm icon or an error code, please contact your local Hoshizaki certified service representative. They will help you fix the problem. -
Page 12: Maintenance
If you wish to decrease the setpoint, press the “DOWN” arrow button until you reach the desired value. Release the button and then press the SET button to keep, and save, the new value. Note: The minimum value you can set in the controller is: 30°F. Manual Defrost To select manual defrost, press and hold the manual defrost button for 5 seconds. -
Page 13: Cleaning The Condenser Coil
3.2.1 Cleaning the Condenser Coil Move the power switch to the “OFF” position, then unplug appliance, remove front bottom panel and carefully slide out the condensing unit. The condenser coil requires regular cleaning; recommended every 30-60 days, depending of the accumulation of dust and grease. -
Page 14: Troubleshooting Chart
TROUBLESHOOTING CHART 4.1 Troubleshooting chart Follow the next steps before requesting warranty service. Failure to do so may result in service charges for you and may void your warranty: 1) Refrigerator doesn’t work: a. Check power supply on, plugged into electrical outlet, power switch on. b. - Page 15 618 Hwy. 74 South, Peachtree City, GA 30269 USA (P) 770.487.2331 (F) 770.487.3360 hoshizakiamerica.com...
