Summary of Contents for Aimco UBX-T Series

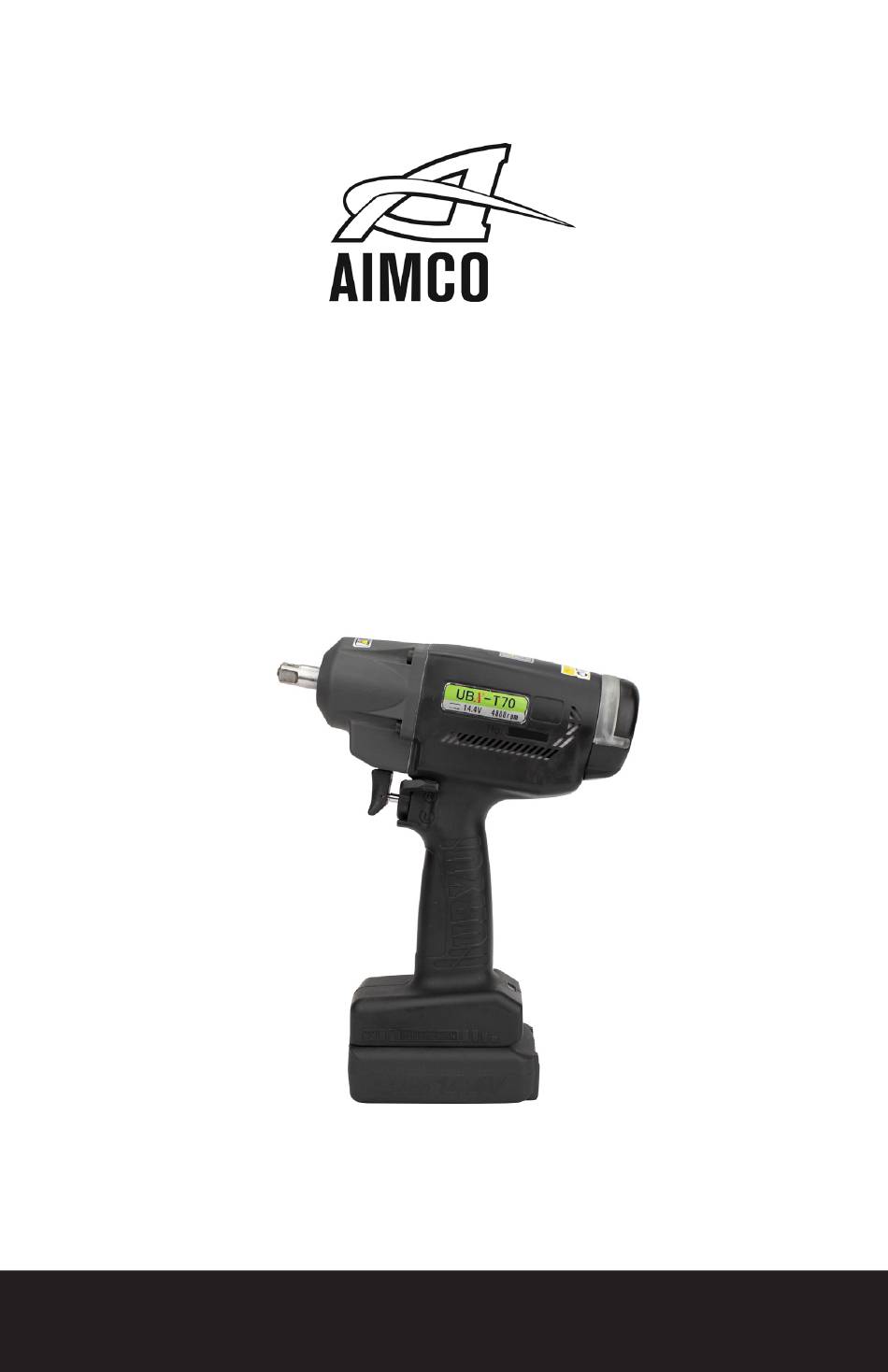

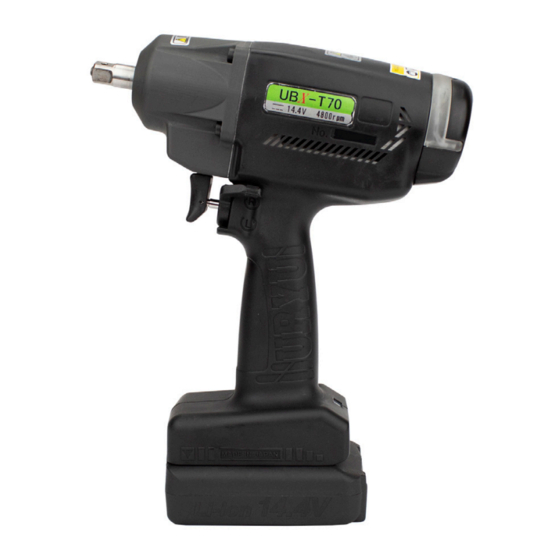

- Page 1 User Manual for UBX-T Auto Shut-Off Battery Pulse Tools 10000 SE Pine St. Portland, Oregon 97216 Phone: 1-800-852-1368 www.aimco-global.com...
-
Page 2: Table Of Contents
Table of Contents Tool Safety General Information Importance of Operating Instructions..... 8 Proper Intended Use....... . 8 Guarantee and Liability . -
Page 3: Tool Safety
1. TOOL SAFETY This manual has divided safety instructions into WARNING and CAUTION. A fatality or severe injury is supposed and urgent warning is highly essential in the event of WARNING mishandling. A dangerous situation can happen, minor to CAUTION moderate injury or only physical damage is supposed in the event of mishandling. - Page 4 2. Use safety protectors. • Wear eye protection always while at work. Wear a dust mask if the working environment is dusty. Wear anti-skid safety shoes, helmet, earplugs, or earmuffs as needed. 3. Avoid unintended start-up. • Switch off UBX-T before loading the battery pack. •...
- Page 5 5. Take good care of the power tool. Check that moving parts work properly and do not jam, that there are no broken or damaged parts, and that the functionality is not hindered. • Insufficient maintenance is the cause of accidents. •...
- Page 6 • Do not make any modifications. Changes to the tool destroys conformity to safety standards. • Send UBX to a qualified AIMCO personnel for repair. Repair by unauthorized persons will result insufficient performance and a risk of accidents or injuries.
- Page 7 • Damaged safety equipment and parts should be properly repaired or replaced by trained and qualified personnel unless otherwise indicated in the operating instructions. • Stop using the tool immediately if it starts operating abnormally or fails. Continuing the operation could cause smoke, fire, shock, or injury.
-
Page 8: General Information
AIMCO’s satisfac- tion to be defective as a result of workmanship or materials. In order to qualify for this warranty, written notice to AIMCO must be given immediately upon discovery of such defect, at which time AIMCO will issue an authorization to return the tool. - Page 9 AIMCO under this Warranty. The warranty provision with respect to each such product may be amended by AIMCO from time to time in its sole discretion. The liability of AIMCO hereunder shall be limited to replacing or repair-...
- Page 10 AIMCO’S LIABILITY PURSUANT TO WARRANTY OF THE PRODUCTS COVERED HEREUNDER IS LIMITED TO REFUND OF THE PURCHASE PRICE. IN NO EVENT SHALL AIMCO BE LIABLE FOR COSTS OF PRO- CUREMENT OF SUBSTITUTE GOODS BY THE BUYER. IN NO EVENT SHALL AIMCO BE LIABLE FOR ANY SPECIAL, CONSEQUENTIAL, IN-...
-
Page 11: Parts Diagram
3. PARTS DIAGRAM Shut-Off Information LED Allen Key for Torque Adjustment Trigger Reverse Lever Battery Pack 4. SPECIFICATIONS • Ambient humidity 0~40° C • Speed change: 3 steps • Slow speed 500 RPM ~ 1,000 RPM for socket bolt entry or temporary tightening. -
Page 12: Tool Operation
5. TOOL OPERATION 5.1 STARTING THE TOOL Trigger Reverse Lever 1. Set reverse lever to R for RIGHT or L for LEFT. 2. Squeeze Trigger • Speed increases in 3 steps as you squeeze trigger (both right and left). • Release finger from trigger, and UBX will brake to stop the operation. -
Page 13: Torque Adjustment For Individual Fasteners
5.2 TORQUE ADJUSTMENT FOR INDIVIDUAL FASTENERS (clockwise operation only) 1. Remove hand from trigger and remove battery pack from tool before adjustment. 2. Press anvil to the opposite side and turn it until the relief valve is visible from the adjusting window. 3. -
Page 14: Shut-Off Information Led
5.3 SHUT-OFF INFORMATION LED LED Color UBX-T State Green Fastening OK Orange Fastening in Progress Incomplete job detection (turned the trigger from ON to OFF before automatic shut-off), or UBX-T was stopped by heat protection function. Red and green Battery level is less than 5% or battery error blink in turns Red and orange Tool is protected from overload, over discharge, or excessive... - Page 15 Incomplete Job Detection (Premature Trigger Off) UBX-T displays an incomplete job error if the tool is switched off before automatic shut-off. 1. Squeeze trigger of UBX, and the LED will light orange. Release the trigger before automatic shut-off, and the LED will light red about 3 sec.
-
Page 16: Change Reverse Lever Direction
5.4 CHANGE REVERSE LEVER DIRECTION Remove roll pin R = Right L = Left Pull in this direction Reverse lever 1. Remove battery pack from UBX-T. 2. Remove roll pin. 3. Pull reverse lever forward to remove it. 4. Change the setting and reattach reverse lever to UBX. 5. -
Page 17: Factors That Can Affect Handling Torque
5.5 FACTORS THAT CAN AFFECT HANDLING TORQUE 1. Working conditions Fastening torque can vary even for bolts of the same diameter. The transmitted torque can change depending on bolt grade, length, coefficient determined by bolt quality/work condition, condition of bolt seating, and distance between fasteners. Torque transmission can also be affected if the bolt and nut rotate together even after fastening. -
Page 18: Battery Pack And Charger
6. BATTERY PACK AND CHARGER UBX runs on a lithium-ion battery pack. Specifications Battery Type (Panasonic) EYFB41 EYFB42 Tool Type UBX-T70 Series Voltage DC14.4V Capacity 2.0Ah 4.0Ah Charging Time Approx. 35 min Approx. 55 min Weight Approx 0.35 kg Approx. 0.58 kg 6.1 INSTALLING AND REMOVING THE BATTERY PACK Installing the Battery Align barbs of tool (3 on each side) to barbs on battery and push... -
Page 19: Charging The Battery Pack
6.2 CHARGING THE BATTERY PACK Alignment mark 1. Plug charger power plug into a socket. The power lamp should AC100V light. 2. Load battery pack into charger. Power • Align battery in charger using lamp alignment marks and place battery onto charger dock. •... -
Page 20: Troubleshooting
7. TROUBLESHOOTING Symptom Possible Cause Remedy Tool does not run Battery level is below 5% Charge battery Tool gets hot Tool has been Allow tool to cool to room overworked temperature. Lessen the load of the job or use a larger BP-T tool. Tool makes Internal magnet This is a normal condition... -
Page 21: Maintenance
8. MAINTENANCE Danger 1. Check for any loose parts, breakage, or wear of all parts prior to each use Warning 1. Tool casing is made of plastic. Wipe it with a soft dry cloth. Do not use volatile liquids or wet cloths because doing so will cause deterioration/discoloration of the materials. -
Page 22: Ubx Exploded View
7. UBX EXPLODED VIEW... - Page 23 Index Part # Description Index Part # Description 10F-025-0 Handle 911-042-0 Motor Assembly (T type) (L=35), Parts #46 & #47 12F-079-0 Connector 863-890-1 Motor (T type) 147-107-2 Trigger 863-891-1 Control Board with LED 09B-212-5 Reverse Lever and Buzzer 12F-012-0 Body Cover 12F-013-0 Top Cover 944-203-0 Supporting Ring...
- Page 24 CORPORATE HEADQUARTERS AIMCO CORPORATION DE MEXICO SA DE CV 10000 SE Pine Street Ave. Cristobal Colon 14529 Portland, Oregon 97216 Chihuahua, Chihuahua. 31125 Phone: (503) 254–6600 Mexico Toll Free: 1-800-852-1368 Phone: (01-614) 380-1010 WWW.AIMCO-GLOBAL.COM Fax: (01-614) 380-1019 LIT-MAN954 Rev. 05/20...
