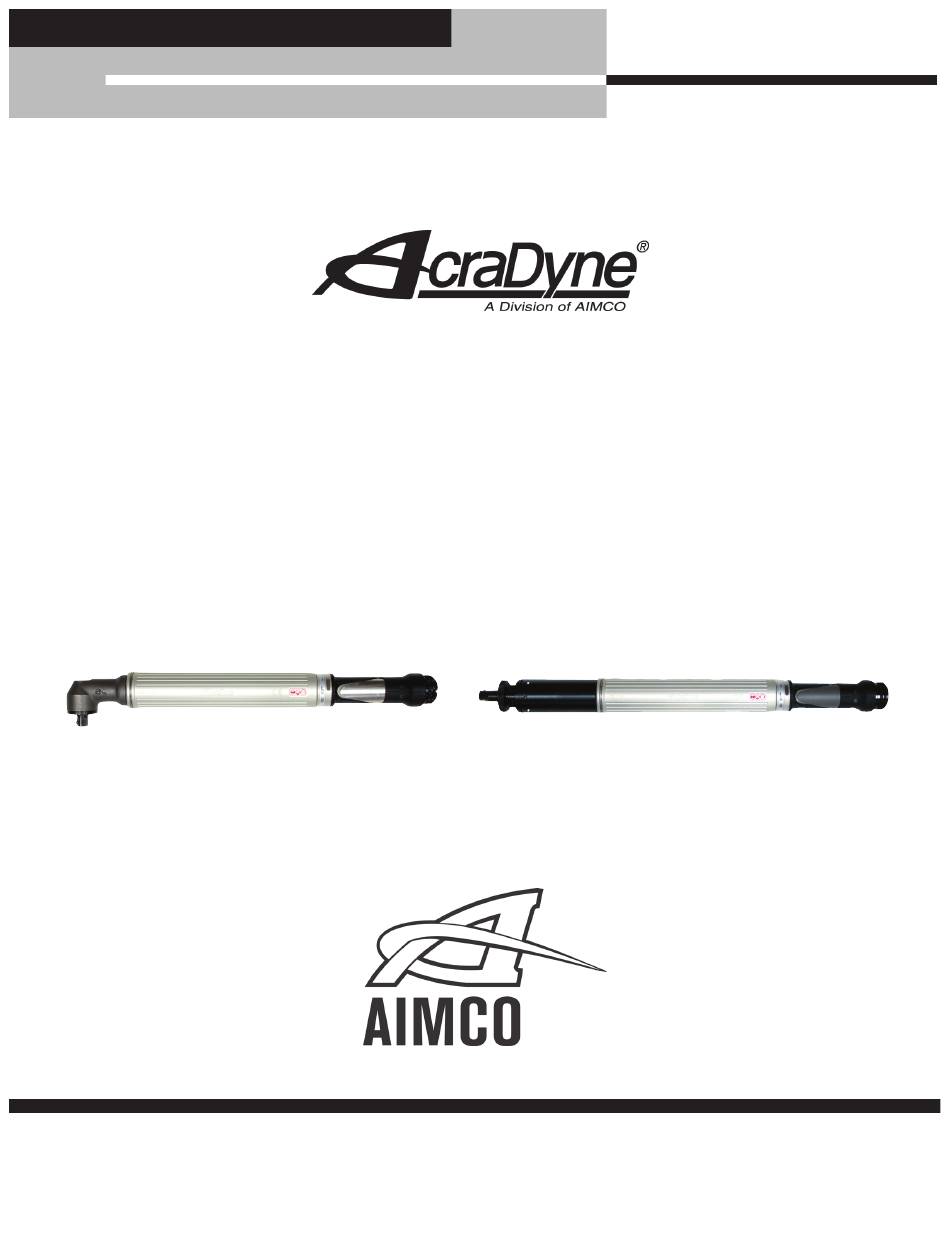

- Page 1 Gen 3 AcraDyne Gen III 3000 Series Nutrunners Operations Manual 10000 SE Pine St., Portland OR 97216 • 503-254-6600 • 800-852-1368 www.aimco-global.com...
- Page 2 Introduction Thank you for purchasing this AcraDyne DC electric assembly tool, one of the lightest and fastest DC electric assembly tools on the market. When used with the AcraDyne iEC tool controller, this tool will provide excellent productivity, ergonomics, reliability and quality on a wide range of industrial assembly applications. SAVE THESE INSTRUCTIONS Safety Information 1) WORK AREA...

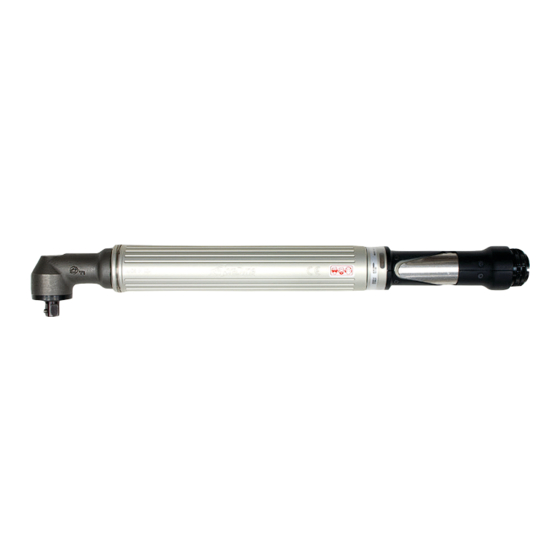

- Page 3 Operation AEN Angle Model AES Straight Model # Part Square/Hex Drive AEH Hold and Drive Model 2 Multi-Function Button LED Status Lights 4 Trigger/Lever Cable Connection Bit Holder and Socket (AEH models only) 1. Connect tool cable to the iEC controller and the tool: AEF fixtured models are not equipped with a multifunction AcraDyne recommends not exceeding 20m length of button.
- Page 4 ◦ Torque range: 8 - 600 NM ◦ Speed Range: 82 - 1,314 RPM Note: Full speed 50% of rated for 3000 tools @ 120VAC. CORPORATE HEADQUARTERS AIMCO CORPORATION DE MEXICO SA DE CV 10000 SE Pine Street Ave. Cristobal Colon 14529 Portland, Oregon 97216 Chihuahua, Chihuahua.
