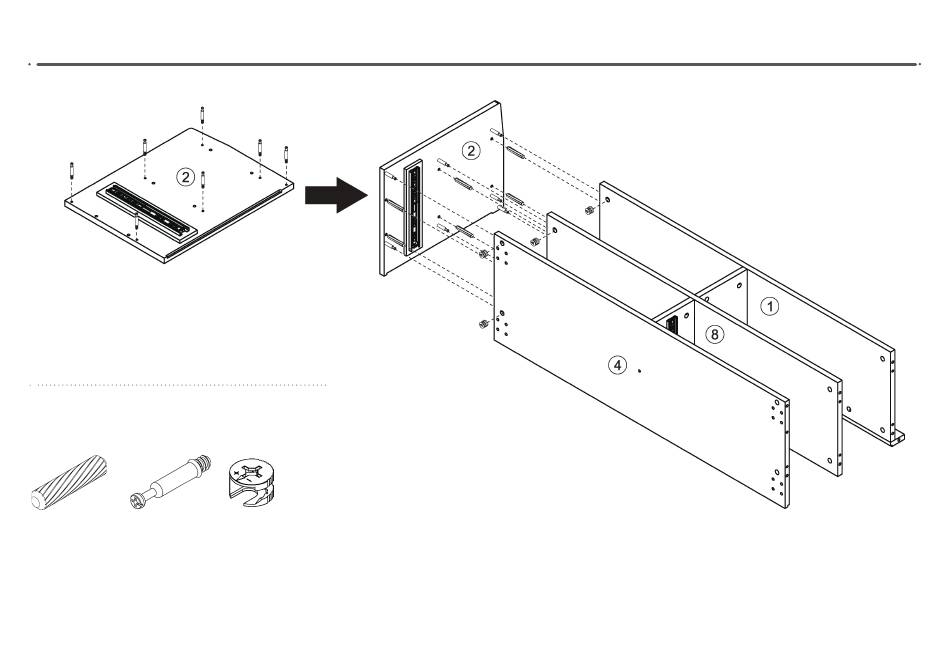

step 4: attach left side panel
(H1) x 6 (H1) x 6 (H2) x 7 (H2) x 7
wooden dowel wooden dowel cam bolt cam bolt
4.1. Carefully tap small wooden dowels into place in left side panel. Leave 1/2" of the dowels sticking out.
4.2. Screw-In cam bolts must be screwed down flush in left side panel.
4.3. Refer to page 7 for instructions on how to use the cam lock system.
4.4. Do not over tighten bolts.
(H3) x 6 (H3) x 6
cam cam
