Target Windham Assembly Instructions Manual

Target Windham Assembly Instructions Manual

Kitchen island
Hide thumbs Also See for Windham:

Advertisement

Quick Links

Download this manual

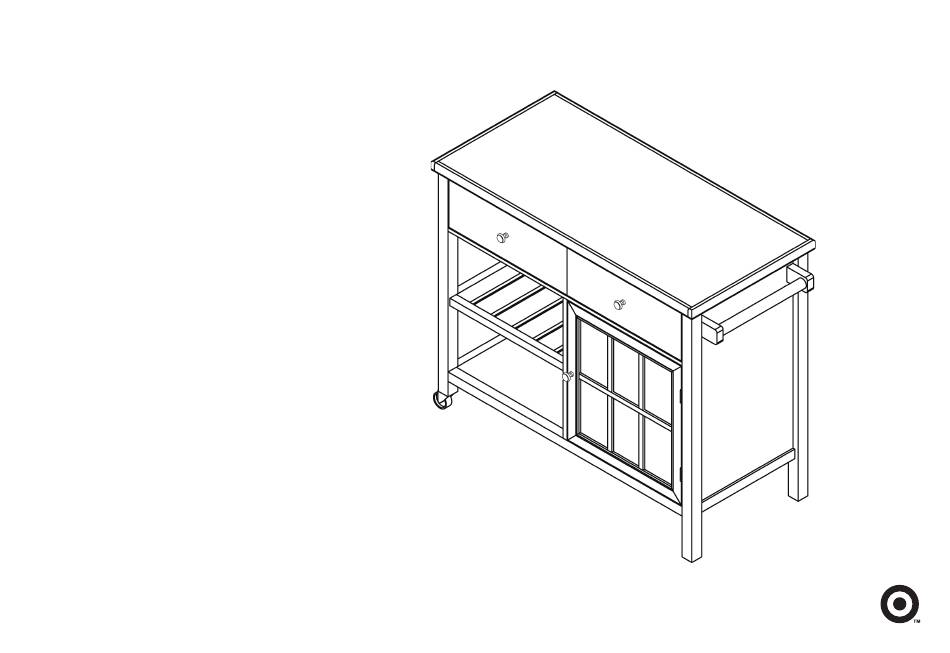

windham
kitchen island
style # WNKTNILDBL (teal)
dpci # 249-04-2290
tcin # 50760400
style # WNKTNILDGY (gray)
dpci # 249-04-2291
tcin # 50760401
style # WNKTNILDRD (red)
dpci # 249-04-2292
tcin # 50760403
style # WNKTNILDBK (black)
dpci # 249-04-2293
tcin # 50760405
style # WNKTNILDWH (shell)
dpci # 249-04-2294
tcin # 50760407
style # WNKTNILDOV (overcast)
dpci # 249-04-4741
tcin # 53321673
>>
assembly instructions
© 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Windham and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Target Windham

Summary of Contents for Target Windham

  • Page 1 # 50760405 style # WNKTNILDWH (shell) dpci # 249-04-2294 tcin # 50760407 style # WNKTNILDOV (overcast) dpci # 249-04-4741 tcin # 53321673 >> assembly instructions © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
  • Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
  • Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-19 how to adjust door alignment QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
  • Page 4 hardware (H1) x 36 (H2) x 35 (H3) x 34 (H4) x 2 (H5) x 9 (H6) x 10 wooden dowel cam bolt pan head screw 1” flat head screw flat head screw (H7) x 4 (H8) x 3 (H9) x 1 (H10) x 1 (H11) x 4 (H12) x 1...
  • Page 5 exploded diagram ITEM DESCRIPTION QUANTITY top panel left side frame right side frame bottom panel upper back panel lower back panel fixed panel towel arm towel bar partition panel slat panel left drawer side right drawer side drawer face adjustable shelf door drawer back drawer bottom...
  • Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cam(s) Push cam into panel - arrow feature and insert all the way into on cam top points to panel edge cross-bored hole(s) Rotate cam(s) clockwise 180° to Panels should be tight against each lock panels together other and connection should be rigid...
  • Page 7 step 1: attach lower back panel, partition panel and slat panel (H1) x 4 (H2) x 4 (H3) x 4 wooden dowel cam bolt 1.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 1.2. Screw-In cam bolts must be screwed down flush. 1.3.
  • Page 8 step 2: attach bottom panel (H1) x 4 (H2) x 4 (H3) x 4 wooden dowel cam bolt 2.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2.2. Screw-In cam bolts must be screwed down flush. 2.3.
  • Page 9 step 3: attach fixed panel finished edge (H1) x 2 (H2) x 2 (H3) x 2 (H10) x 1 (H4) x 2 wooden dowel cam bolt magnet pan head screw pan head screw 3.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 3.2.
  • Page 10 step 4: attach upper back panel (H1) x 2 (H2) x 2 (H3) x 2 wooden dowel cam bolt 4.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 4.2. Screw-In cam bolts must be screwed down flush. 4.3.
  • Page 11 step 5: prepare left side frame (H8) x 3 (H6) x 6 (H6) x 6 (H17) x 1 (H17) x 1 (H18) x 1 (H18) x 1 hook flat head screw flat head screw locking caster locking caster caster caster 5.1.
  • Page 12 step 6: attach left side frame (H1) x 7 (H2) x 8 (H3) x 8 wooden dowel cam bolt 6.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 6.2.
  • Page 13 step 7: prepare right side frame (H2) x 8 (H7) x 4 (H12) x 1 cam bolt bolt allen wrench 7.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 7.2. Screw-In cam bolts must be screwed down flush. 7.3.
  • Page 14 step 8: attach right side frame (H1) x 7 (H3) x 8 wooden dowel 8.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 8.2. Refer to page 6 for instructions on how to use the cam lock system.
  • Page 15 step 9: attach top panel (H1) x 6 (H2) x 6 wooden dowel cam bolt (H3) x 6 (H13) x 3 (H16) x 4 small wooden 7/8” flat head dowel screw 9.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 9.2.
  • Page 16 step 10: attach door and knob (H14) x 1 (H15) x 1 (H6) x 4 knob knob bolt small flat head screw 10.1. Align bolts with pre-drilled holes. 10.2. Align screws with pre-drilled holes. 10.3. Do not over tighten bolts. 10.4.
  • Page 17 step 11: install adjustable shelf (H11) x 4 shelf support 11.1. Insert shelf supports into desired hole. Different holes accommodate different shelf heights. Insert shelf supports into desired hole. Different holes accommodate different shelf heights. 11.2. Angle shelf to fit between the rails and set on top of shelf supports.
  • Page 18 step 12: attach drawer face, left/right sides, support, bottom and back (H1) x 4 (H2) x 1 (H9) x 1 (H5) x 9 wooden dowel cam bolt small cam 1” flat head screw 12.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 12.2.
  • Page 19 step 13: attach knobs and install drawer (H14) x 2 (H15) x 2 knob knob bolt 13.1. Align bolt with pre-drilled hole. 13.2. Do not over tighten bolt.
  • Page 20 how to adjust door alignment Tips for proper door alignment: -Adjustable levelers will reduce minor door mis-alignments caused by an uneven floor. -Use a level to determine if the cabinet top is level. If not, start with the levelers retracted and adjust them as needed.To retract the levelers turn them counterclockwise.
  • Page 21 l b s d r a l b s e l f 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2.
  • Page 22 © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
