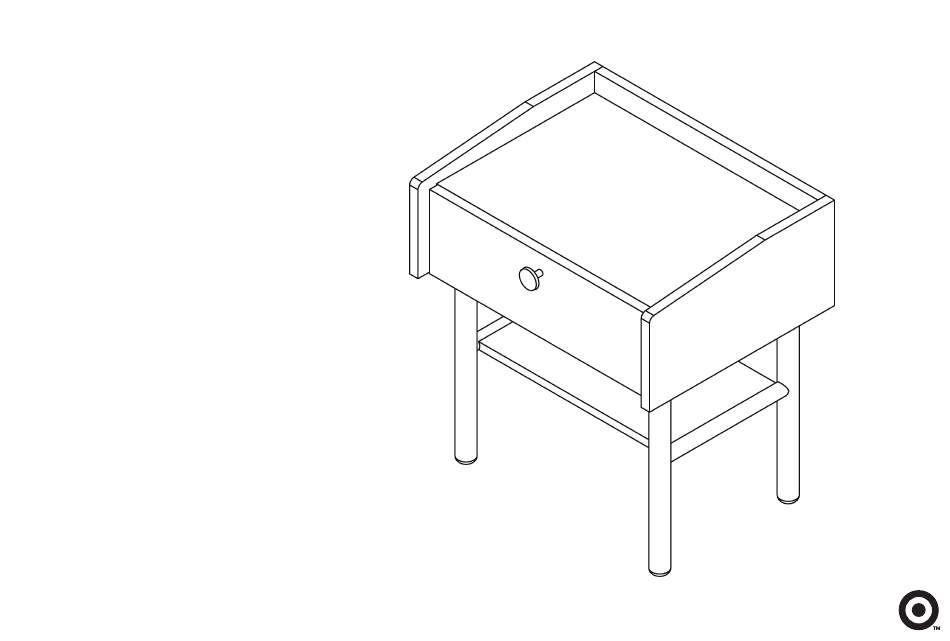

- Page 1 wiley side table style # TGZLTBKDWH (true white) dpci # 249-17-0585 tcin # 53546345 style # TGZLTBKDBL (orion blue) dpci # 249-17-0496 tcin # 53546346 style # TGZLTBKDGY (gray) dpci # 249-17-0497 tcin # 53546341 >> assembly instructions...
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-18 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 20 (H2) x 14 (H3) x 14 (H4) x 4 (H5) x 8 (H6) x 2 wooden dowel cam bolt long flat head screw short flat head screw corner block (H7) x 1 (H8) x 1 (H9) x 8 (H10) x 8 (H11) x 8 (H12) x 1...
- Page 5 exploded diagram ITEM DESCRIPTION QUANTITY top panel left side panel right side panel bottom panel back panel drawer face left drawer side right drawer side drawer back drawer bottom fixed shelf foot...
- Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cross-bored Push cam into panel - arrow feature hole(s) and insert all the way until on cam top points to panel edge panels are flush Rotate cam(s) clockwise 180°...
- Page 7 step 1: attach top panel and back panel. (H1) x 2 (H2) x 2 (H3) x 2 wooden dowel cam bolt 1.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 1.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 1.2.
- Page 8 step 2: attach bottom panel. (H1) x 2 (H2) x 2 (H3) x 2 wooden dowel cam bolt 2.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2.2.
- Page 9 step 3: attach left side panel. (H1) x 6 (H1) x 6 (H2) x 5 (H2) x 5 (H3) x 5 (H3) x 5 (H16) x 1 (H16) x 1 wooden dowel wooden dowel cam bolt cam bolt flat head wrench flat head wrench 3.1.
- Page 10 step 4: attach right side panel. (H1) x 6 (H2) x 5 wooden dowel cam bolt (H3) x 5 (H16) x 1 flat head wrench 4.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 4.1.
- Page 11 step 5: attach left and right drawer sides to drawer face. (H1) x 4 (H1) x 4 (H5) x 8 (H5) x 8 (H6) x 2 (H6) x 2 wooden dowel wooden dowel short flat head short flat head corner block corner block screw screw...
- Page 12 step 6: install drawer bottom and attach drawer back. (H4) x 4 long flat head screw 6.1. Align screws with pre-drilled holes. 6.2. Do not over tighten screws.
- Page 13 step 7: install drawer into case. (H7) x 1 (H8) x 1 knob knob bolt 7.1. Do not over tighten bolts.
- Page 14 step 8: attach mounting plate to foot. (H13) x 4 (H14) x 8 mounting plate confirmat screw 8.1. Align screws with pre-drilled holes. 8.2. Do not over tighten screws.
- Page 15 step 9: install x2 feet to bottom of case. (H9) x 4 (H10) x 4 bolt lock washer (H11) x 4 (H12) x 1 washer allen wrench 9.1. Align bolts with pre-drilled holes. 9.2. Do not over tighten bolts.
- Page 16 step 10: attach fixed shelf to feet and align remaining feet.
- Page 17 step 11: install remaining feet to bottom of case. (H9) x 4 (H10) x 4 bolt lock washer (H11) x 4 (H12) x 1 washer allen wrench 11.1. Align bolts with pre-drilled holes. 11.2. Do not over tighten bolts.
- Page 18 step 12: secure fixed shelf to feet. (H15) x 4 pan head screw 12.1. Align screws with pre-drilled holes. 12.2. Do not over tighten screws.
- Page 19 l b s 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2. Furniture Care Instructions: Dust with a clean, lint-free cloth. Use a spray furniture polish as needed. QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service.
- Page 20 © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
