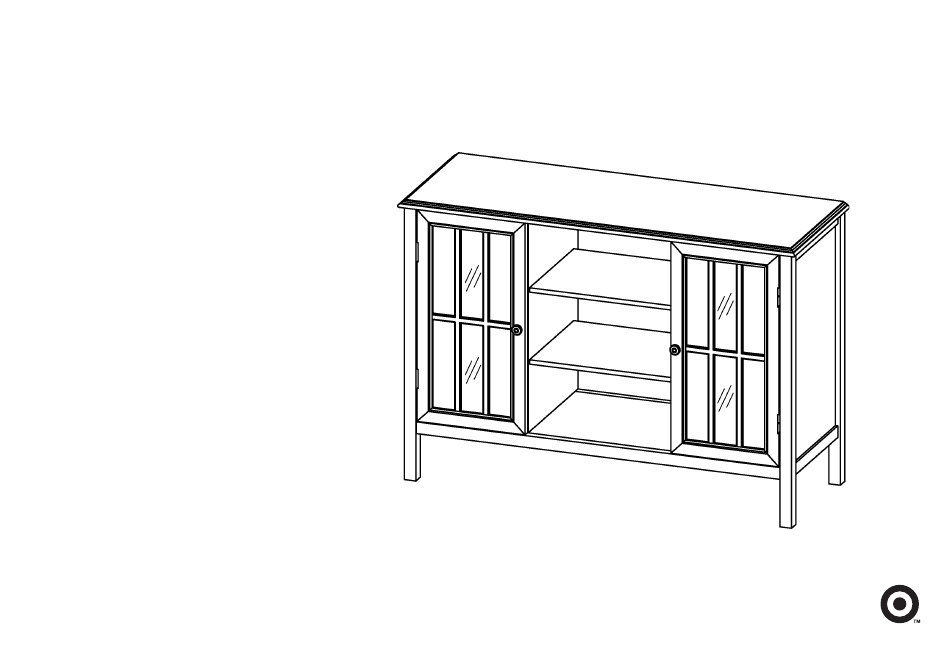

windham
accent cabinet
style # WNCBSHGY (grey)
dpci # 249-16-0012
tcin # 14646619
style # WNCBSHRD (red)
dpci # 249-16-0014
tcin # 14646618
style # WNCBSHBK (black)
dpci # 249-16-0015
tcin # 14646617
style # WNCBSHBL (teal)
dpci # 249-16-0024
tcin # 14646616
style # WNCBSHWH (shell)
dpci # 249-16-0025
tcin # 14646615
style # WNCBSH2DOV (overcast)
dpci # 249-16-4303
tcin # 50077424
>>
assembly instructions
© 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Windham Accent cabinet WNCBSHGY and is the answer not in the manual?

Questions and answers

Summary of Contents for Target Windham Accent cabinet WNCBSHGY

  • Page 1 # 14646616 style # WNCBSHWH (shell) dpci # 249-16-0025 tcin # 14646615 style # WNCBSH2DOV (overcast) dpci # 249-16-4303 tcin # 50077424 >> assembly instructions © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
  • Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
  • Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-16 how to adjust door alignment QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
  • Page 4: Table Of Contents

    hardware (H1) x 16 (H2) x12 (H3) x 12 (H4) x 27 (H5) x 8 (H6) x 16 wooden dowel cam bolt short pan-head screw short flat-head screw shelf support (H7) x 2 (H8) x 2 (H9) x 2 (H10) x 4 (H11) x 4 (H12) x 6 knob...
  • Page 5 exploded diagram ITEM DESCRIPTION QUANTITY top panel left side frame right side frame bottom panel partition panel back panel left door right door side adjustable shelf center adjustable shelf...
  • Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cam(s) Push cam into panel - arrow feature and insert all the way into on cam top points to panel edge cross-bored hole(s) Rotate cam(s) clockwise 180° to Panels should be tight against each lock panels together other and connection should be rigid...
  • Page 7: Wooden Dowel Cam Bolt

    step 1: attach partition panels to bottom panel finished edge finished edge position cams outside position cams outside (H1) x 4 (H2) x 4 (H3) x 4 wooden dowel cam bolt 1.1. Carefully tap small wooden dowels into place. Leave 12mm of the dowels sticking out. 1.2.
  • Page 8 step 2: attach right side frame (H1) x 2 (H2) x 2 (H3) x 2 wooden dowel cam bolt 2.1. Carefully tap small wooden dowels into place. Leave 12mm of the dowels sticking out. 2.2. Screw-In cam bolts must be screwed down flush. 2.3.
  • Page 9 step 3: attach left side frame (H1) x 2 (H2) x 2 (H3) x 2 wooden dowel cam bolt 3.1. Carefully tap small wooden dowels into place. Leave 12mm of the dowels sticking out. 3.2. Screw-In cam bolts must be screwed down flush. 3.3.
  • Page 10: (H9) X 2

    step 4: prepare top panel (H2) x 4 (H9) x 2 (H4) x 4 (H4) x 4 cam bolt magnet short pan short pan head screw head screw 4.1. Screw-In cam bolts must be screwed down flush. 4.2. Do not over tighten screws.
  • Page 11 step 5: attach top panel (H1) x 8 (H3) x 4 (H13) x 1 wooden dowel allen wrench (H10) x 4 (H11) x 4 (H12) x 4 allen head bolt lock washer washer 5.1. Carefully tap small wooden dowels into place. Leave 12mm of the dowels sticking out. 5.2.
  • Page 12 step 6: attach back panel **FAILURE TO FOLLOW ALL DIRECTIONS ON THIS PAGE MAY RESULT IN UNEVEN DOOR ALIGNMENT** hole for anti-tip kit Begin by installing all of the screws along one edge of the back panel. Next, using a square or tape measure, make sure that the cabinet is square.
  • Page 13 step 7: attach knobs to left and right doors (H7) x 2 (H8) x 2 knob knob bolt 7.1. Do not over tighten bolts.
  • Page 14: (H5) X 8

    step 8: attach doors (H5) x 8 short flat head screw 8.1. Do not over tighten screws. 8.1. Do not over tighten screws.
  • Page 15 step 9: install side and center adjustable shelves (H6) x 16 shelf support 9.1. Insert shelf supports into desired hole. Different holes accommodate different shelf heights. 9.2. Angle shelf to fit between vertical panels and set on top of shelf supports.
  • Page 16: (H16) X 1

    step 10: install anti-tip kit (H15) (H12) (H16) Position against wall (H14) Mark position of strap hole on wall Drill 7mm hole Tap in wall anchor Fasten anti-tip strap with wall screw provided (H17) (H14) x 1 (H15) x 1 (H16) x 1 (H17 ) x 1 (H12) x 2...
  • Page 17 how to adjust door alignment Tips for proper door alignment: -Adjustable levelers will reduce minor door mis-alignments caused by an uneven floor. -Use a level to determine if the cabinet top is level. If not, start with the levelers retracted and adjust them as needed.To retract the levelers turn them counterclockwise.
  • Page 18 c e n t e r s h e l f w e i g h t l i m i t i s 2 5 l b s . 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging”...
