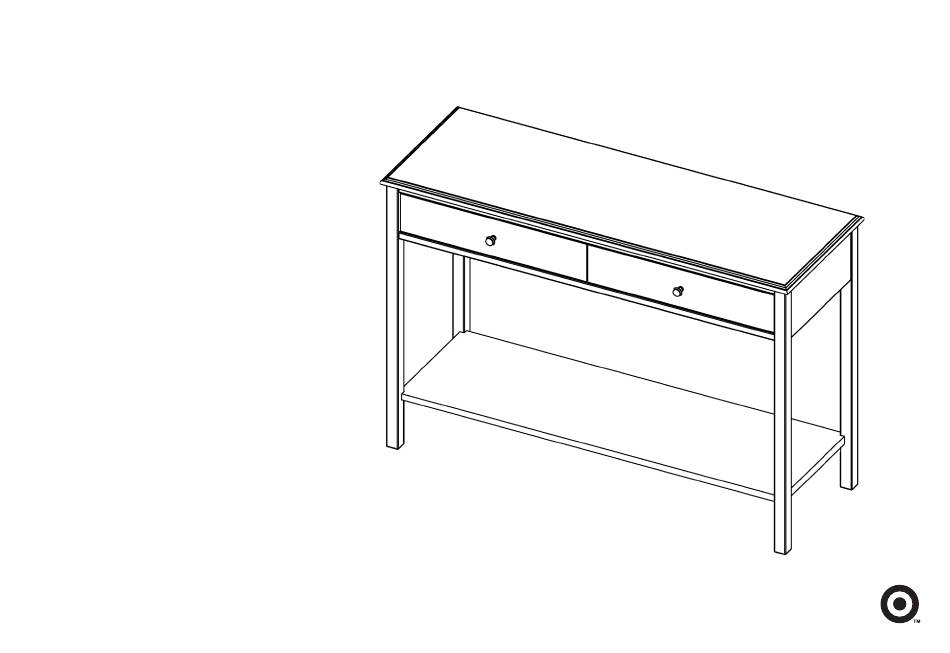

windham
console table
style # WNCNSLTBBK (black)
dpci # 249-16-0818
tcin # 14122480
style # WNCNSLTBRD (red)
dpci # 249-16-0819
tcin # 14122481
style # WNCNSLTBGY (gray)
dpci # 249-16-0816
tcin # 14373228
style # WNCNSLTBWH (shell)
dpci # 249-16-0815
tcin # 14372248
style # WNCNSLTBBL (teal)
dpci # 249-16-0817
tcin # 14373265
>>
assembly instructions
© 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
Advertisement
Related Manuals for Target windham
Summary of Contents for Target windham
- Page 1 # 14373228 style # WNCNSLTBWH (shell) dpci # 249-16-0815 tcin # 14372248 style # WNCNSLTBBL (teal) dpci # 249-16-0817 tcin # 14373265 >> assembly instructions © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-15 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 16 (H2) x 18 (H3) x 18 (H4) x 12 (H5) x 2 wooden dowel cam bolt flat-head screw knob bolt (H6) x 2 (H7) x 1 (H8) x 1 (H9) x 1 (H10) x 1 knob wall strap 38mm wall screw wall anchor...
- Page 5 exploded diagram ITEM DESCRIPTION QUANTITY top panel right side panel left side panel back panel shelf drawer face drawer bottom top trim drawer back drawer right side drawer left side drawer support bottom trim...
- Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cam(s) Push cam into panel - arrow feature and insert all the way into on cam top points to panel edge cross-bored hole(s) Rotate cam(s) clockwise 180° to Panels should be tight against each lock panels together other and connection should be rigid...
- Page 7 step 1: attach shelf/back panel/top and bottom trim to left side panel (H1) x 3 (H2) x 5 (H3) x 5 wooden dowel cam bolt 1.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. Carefully tap small wooden dowels into place.
- Page 8 step 2: attach right side panel (H1) x 3 (H2) x 5 (H3) x 5 wooden dowel cam bolt 2.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2.2.
- Page 9 step 3: attach top panel (H1) x 4 (H2) x 6 (H3) x 6 (H4) x 2 wooden dowel cam bolt flat-head screw 3.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 3.2.
- Page 10 step 4: attach drawer left and right sides/drawer supports to drawer face (H1) x 2 (H2) x 2 (H3) x 2 (H3) x 2 (H4) x 4 (H4) x 4 wooden dowel cam bolt flat-head screw flat-head screw 4.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 4.2.
- Page 11 step 5: install drawer bottom and position drawer back (H1) x 4 wooden dowel 5.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 5.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out.
- Page 12 step 6: attach drawer back (H4) x 6 flat-head screw 6.1. Do not over tighten screws.
- Page 13 step 7: attach knobs (H5) x 2 (H6) x 2 knob bolt knob 7.1. Align knob bolts with pre-drilled holes to attach knobs to drawer. Do not over tighten bolts.
- Page 14 step 8: install drawer...
- Page 15 step 9: install anti-tip kit (H7) (H11) (H9) Position against wall (H10) Mark position of strap hole on wall Mark position of strap hole on wall Drill 1/4” hole Tap in wall anchor (H11) (H8) Fasten anti-tip strap with wall screw Fasten anti-tip strap with wall screw provided provided...
- Page 16 1 5 l b 1 5 l b 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2.
- Page 17 © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
