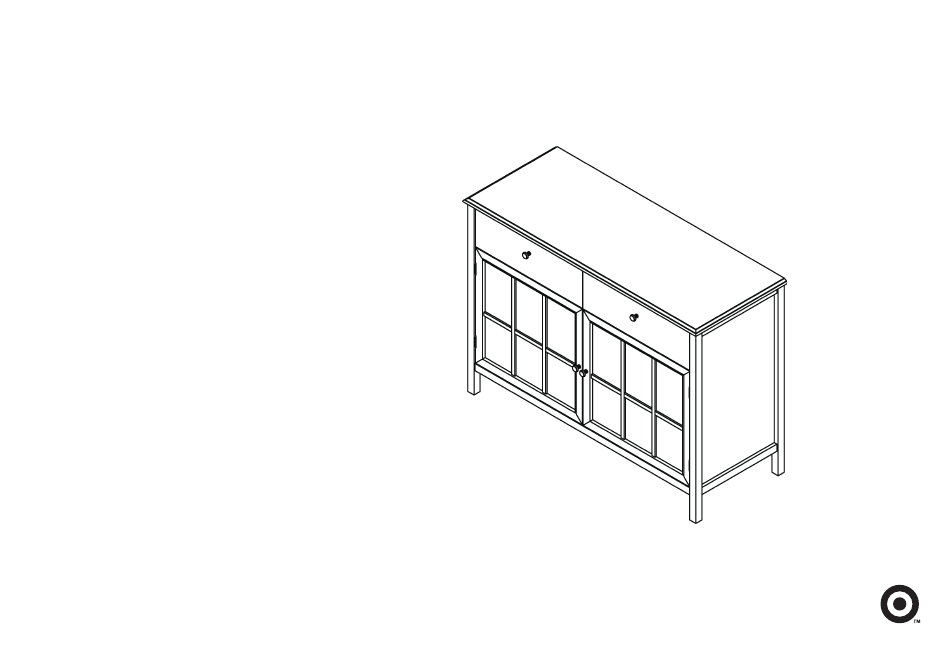

windham
buffet
style # WNBUFFETBL (teal)
dpci # 249-04-2372
tcin # 50760877
style # WNBUFFETGY (gray)
dpci # 249-04-2373
tcin # 50760878
style # WNBUFFETBK (black)
dpci # 249-04-2375
tcin # 50760880
style # WNBUFFETWH (shell)
dpci # 249-04-2376
tcin # 50760881
style # WNBUFFETOV (overcast)
dpci # 249-04-4742
tcin # 53321691
>>
assembly instructions
© 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
Advertisement
Related Manuals for Target Windham WNBUFFETBL
Summary of Contents for Target Windham WNBUFFETBL
- Page 1 # 50760880 style # WNBUFFETWH (shell) dpci # 249-04-2376 tcin # 50760881 style # WNBUFFETOV (overcast) dpci # 249-04-4742 tcin # 53321691 >> assembly instructions © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-18 how to adjust door alignment QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and DPCI number ready when calling.
- Page 4 hardware (H1) x 34 (H2) x 16 (H3) x 16 (H4) x 27 (H5) x 8 (H6) x 10 large wooden dowel cam bolt small pan head screw small flat head screw large flat head screw (H7) x 2 (H8) x 4 (H9) x 4 (H10) x 4 (H11) x 4...
- Page 5 exploded diagram ITEM DESCRIPTION QUANTITY top panel left side panel right side panel bottom panel back panel partition adjustable shelf front rail left door right door drawer face left drawer side right drawer side drawer back drawer bottom drawer support rear rail rear upper rail center foot...
- Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cross-bored Push cam into panel - arrow feature hole(s) and insert all the way until on cam top points to panel edge panels are flush Rotate cam(s) clockwise 180°...
- Page 7 step 1: attach partition to bottom panel finished edge front (H1) x 2 (H2) x 2 (H3) x 2 wooden dowel cam bolt 1.1. Carefully tap small wooden dowels into place in bottom panel. Leave 1/2” of the dowels sticking out. 1.2.
- Page 8 step 2: attach center foot to bottom panel 2.1. Align center foot with pre-drilled hole to attach to bottom panel.
- Page 9 step 3: attach front rail and rear rail to partition finished edge finished edge (H1) x 2 (H1) x 2 (H2) x 2 (H2) x 2 (H3) x 2 (H3) x 2 (H4) x 4 (H4) x 4 (H7) x 2 (H7) x 2 wooden dowel wooden dowel...
- Page 10 step 4: attach left side panel finished edge (H1) x 8 (H2) x 5 (H3) x 5 wooden dowel cam bolt finished edge 4.1. Carefully tap small wooden dowels into place in left side panel. Leave 1/2” of the dowels sticking out. 4.2.
- Page 11 step 5: attach right side panel (H1) x 8 (H2) x 5 (H3) x 5 wooden dowel cam bolt 5.1. Carefully tap small wooden dowels into place in right side panel. Leave 1/2” of the dowels sticking out. 5.2. Screw-In cam bolts must be screwed down flush in right side panel. 5.3.
- Page 12 step 6: attach top panel (H8) x 4 (H9) x 4 (H16) x 4 bolt lock washer washer (H1) x 6 (H2) x 2 (H3) x 2 (H19) x 1 wooden dowel cam bolt allen wrench 6.1. Carefully tap small wooden dowels into place in side panels and rear upper rail. Leave 1/2” of the dowels sticking out. 6.1.
- Page 13 step 7: attach back panel FAILURE TO FOLLOW ALL DIRECTIONS ON THIS PAGE MAY RESULT IN UNEVEN DOOR ALIGNMENT hole for anti-tip strap Begin by installing all of the screws along one pre-drilled holes edge of the back panel. Next, using a square or tape measure, make sure that the cabinet is square.
- Page 14 step 8: attach doors and knobs (H5) x 8 (H10) x 2 (H11) x 2 small flat knob knob bolt head screw 8.1 Align flat head screws with pre-drilled holes to attach doors to cabinet. Do not over tighten screws. 8.2 Align knob bolts with pre-drilled holes to attach knobs to doors.
- Page 15 step 9: install adjustable shelves (H12) x 8 shelf support 9.1. Insert shelf supports into desired hole. Different holes accommodate different shelf heights. 9.2. Angle shelf to fit between the rails and set on top of shelf supports.
- Page 16 step 10: assemble drawer box (H1) x 8 (H13) x 2 (H14) x 2 (H6) x 10 (H6) x 10 wooden dowel small cam bolt small cam large flat head large flat head screw screw 10.1. Align flat head screws with pre-drilled holes to attach drawer sides to drawer face. Do not over tighten screws. 10.1.
- Page 17 step 11: install drawer and knob (H10) x 2 (H11) x 2 knob knob bolt 11.1 Align knob bolts with pre-drilled holes to attach knobs to drawer. Do not over tighten bolts. 11.2 Align tracks on drawer box with tracks on left side panel and right side panel.
- Page 18 step 12: install anti-tip kit (H18) (H17) Position against wall Position against wall (H20) Mark position of strap hole on Mark position of strap hole on wall wall (H16) Drill 1/4’’ hole Drill 1/4’’ hole Tap in wall anchor Tap in wall anchor Fasten anti-tip strap Fasten anti-tip strap with flat-head screw provided...
- Page 19 how to adjust door alignment Tips for proper door alignment: -Adjustable levelers will reduce minor door mis-alignments caused by an uneven floor. -Use a level to determine if the cabinet top is level. If not, start with the levelers retracted and adjust them as needed.To retract the levelers turn them counterclockwise.
- Page 20 d r a c a p a c i l b s i n t e r i c a p a c i e l f l b s 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging”...
- Page 21 © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
