IO - T O 16
I / O E x p a n s i o n M o d u l e

Mounting the Module

Mounting Considerations
DIN-rail mounting

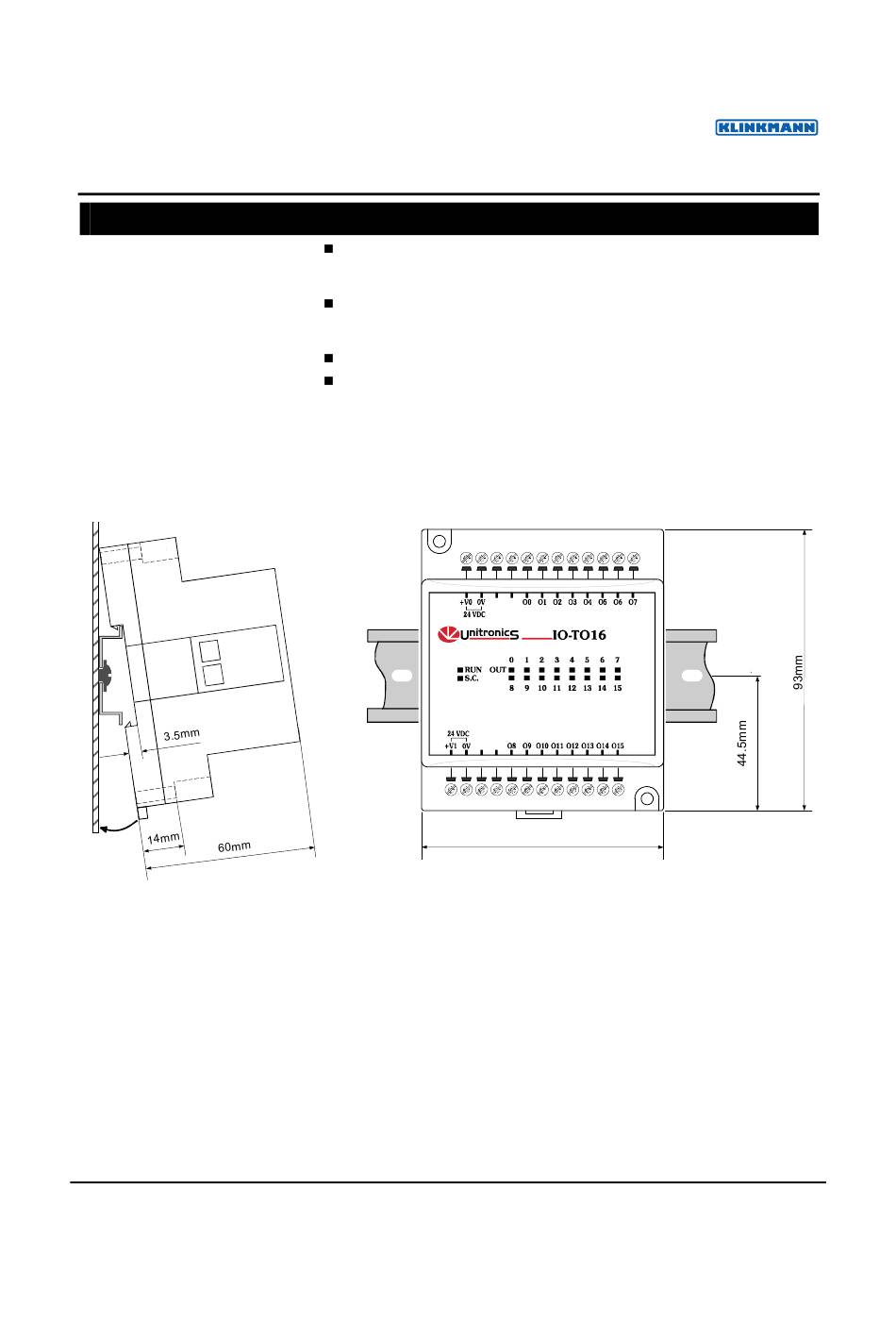

Snap the device onto the DIN rail as shown below; the module will be squarely situated on the DIN rail.
Screw-Mounting
The figure on the next page is drawn to scale. It may be used as a guide for screw-mounting the module.
Mounting screw type: either M3 or NC6-32.
2
Do not install in areas with: excessive or conductive dust, corrosive or
flammable gas, moisture or rain, excessive heat, regular impact
shocks or excessive vibration.
Provide proper ventilation by leaving a minimum space of 10mm
between the top and bottom edges of the device and the enclosure
walls.
Do not place in water or let water leak onto the unit.
Do not allow debris to fall inside the unit during installation.
Unitronics Industrial Automation Systems
5 / 2011
www.klinkmann.com
80mm
