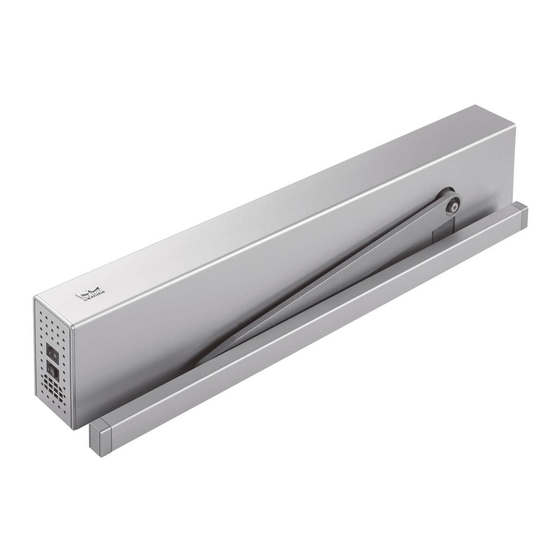

ED50
Low Energy Swing Door Operator
(Fine cover)
Owner's Manual
DL4615-008 – 01-2020
| EN |

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ED50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dormakaba ED50

Summary of Contents for Dormakaba ED50

  • Page 1 ED50 Low Energy Swing Door Operator (Fine cover) Owner's Manual DL4615-008 – 01-2020 | EN |...

  • Page 2: Table Of Contents

    ED50 (Fine Cover) Owner's Manual Table of Contents Table of contents Table of contents General information To our customers What you should know Distributor information Knowing act Program switch panel Optional key switch panels AAADM Safety information labels Safety information labels, low energy...

  • Page 3: General Information

    Chapter 1 1 General information 1.1 Owner's Manual 1.7 ANSI/BHMA A156.19, American National This Owner's Manual applies to the dormakaba ED50 Standard for Power Assist and Low Energy Power low energy swing door system. Operated Doors. 1.2 Manual storage 1.7.1 Low energy power operated door definition.

  • Page 4: To Our Customers

    ED50 (Fine Cover) Owner's Manual Chapter 2 2 To our customers We are pleased that a dormakaba ED50 low energy swing door system has been selected for this installation. dormakaba designed, tested and built the system to provide many years of service.

  • Page 5: What You Should Know

    3.1.1 dormakaba USA, Inc. distributor information. 3.3.1 Program switch door control modes. Be sure that the dormakaba USA, Inc. distributor has 1. Auto, door opens automatically when actuated by: provided the following information for each door • Knowing act device (Para. 3.2). Door will remain at installation: full open position for not less than 5 seconds.

  • Page 6: Aaadm Safety Information Labels

    Low energy swing door safety information label. Fig. 4.1.1 Safety Information and Annual Compliance This AAADM label outlines safety checks that should be Inspection labels performed daily on swing door controlled by an ED50 low energy operator. ANNUAL COMPLIANCE SAFETY INFORMATION INSPECTION 4.1.2...

  • Page 7: Daily Safety Check Procedures

    2. Check all doors for damage. be in good condition. 3. Force 5. Have door inspected by a dormakaba USA Inc. • Force to prevent the door from closing should not AAADM certified technician annually, at a minimum.

  • Page 8: Ed50 Door Signage

    ED50 (Fine Cover) Owner's Manual Chapter 6 6 ED50 door signage 6.1 Low energy operator 6.2 Door signage, low energy single swing door 6.1.1 Overview Signage and warnings are specified in ANSI /BHMA Fig. 6.2.1 Knowing act device initiation of door operation A156.19, American National Standard for Power Assist...

  • Page 9: Door Signage, Low Energy Double Swing Doors

    ED50 (Fine Cover) Owner's Manual Chapter 6 6.3 Door signage, low energy double swing doors Fig. 6.3.4 Knowing act, non-hinge side Fig. 6.3.1 Knowing act, non-hinge side AUTOMATIC AUTOMATIC CAUTION CAUTION AUTOMATIC AUTOMATIC CAUTION CAUTION DOOR DOOR DOOR DOOR...

  • Page 10: Ed50 Header Cleaning

    7.1 ED50 environment and cleaning 7.1.1 ED50 environmental requirements. Table 7.1.1 Operator environmental requirements. ED50 with fine cover is designed to operate on an Ambient temperature 5 to 122 °F interior building surface under the specifications shown in Table 7.1.1.
  • Page 11 ED50 (Fine Cover) Owner's Manual Blank page This page left intentionally blank. ED50 DL4615-008 01-2020...
  • Page 12 USA, Inc. 1 Dorma Drive, Drawer AC Reamstown, PA 17567 T: 717-336-3881 www.dormakaba.com F: 717-336-2106...
