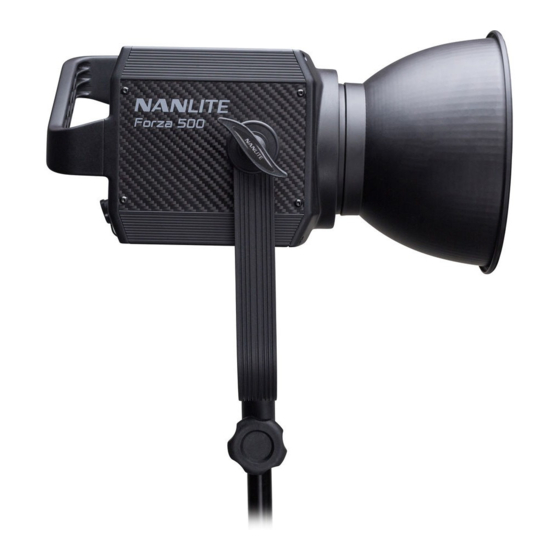

- Page 1 USER MANUAL Forza 500 LED SPOT LIGHT Guangdong NanGuang Photo&Video Systems Co., Ltd...
- Page 2 Forza 500 LED Spot Light Product Show Technical Data LED Power: 500W Power Input: 48V Power adapter 2 PCS 26V/12A Sony V-mount Batteries(Not Included) Color Temperature: 5600K CRI(Ra): 98...
- Page 3 Connection Way of the Power 1. Connection between light fixture and power adapter. INPUT: AC100-240V 50/60Hz 8A MAX OUTPUT: 48V12.5A PIN1- PIN1+ ta 45℃ IP20 MADE IN CHINA...
- Page 4 2. Connection between light fixture and batteries. Battery Battery...
- Page 5 Product Details 2. Control panel 11. Host output socket 3. Handle 4. LED indicator 12. Angle fixing knob 16. Lamp body handle 5. Power switch 1. Battery 13. Lock catch holder 6. DMX OUT 7. DMX IN 8. DC power socket 9.
- Page 6 Detailed description 1. Battery holder: For installing two 26V/12A Sony V-Mount batteries or power adapter. 2. Control panel: For displaying various function operations and data. 3. Handle: It is convenient for users to carry the host. 4. LED indicator: For determining the status of power input. Being on, power supply is normal. Flashing or being off, power supply is abnormal or no power input.
- Page 7 (1) When connect the power supply, please make sure the power , voltage and frequency should be consistent with the provided power supply. (2) When use the V mount batteries, please make sure turn off the fixture and then plug in or pull out the batteries or DC cable.
- Page 8 Forza 500 comes with 3 control channels inlcuding" “Brightness Control”, “Special Effects Mode ” and “Flash Time Setting ”. 5. 2.4G Remote Control ·Forza 500 is designed to work with 2.4G remote control or NANLITE Wi-Fi app via Wi-Fi transfer device to control the light freely. NOTE :...
- Page 9 6. Installation Instruction of Reflector When installing the reflector, make sure its mount When removing the reflector, Push the release button to points line up with the slots on the light fixture . push and hold on release button remove the reflector. When the mount points and slot are lined up push until rotating the reflector and the reflector in place rotate reflector in the locking...
- Page 10 (being on) Item No Address Code Battery Power "off " position. Now it is safe to Capacity Forza 500 CH:512 connect the ballast adapter or batteries and power the unit on. Brightness Effects modes If the power indicator is on that...
- Page 11 ④Forza 500 provides 9 different light modes, turn on the fixture to enter the main interface and rotate the "Function Knob" clockwise, the order on the display is"FLASH 1(0.25 seconds)/FLASH 2(1 seconds)/FLASH 3(0.1-6 seconds)/ STORM 1(flash for 7 times continuously) /STORM 2(flash for 7 times continuously)/STROM 3(10-15 seconds in random variations)/TV/Bad Bulb.
- Page 12 CH:512 MENU CH:512 MENU ROTATE SCREEN Do you want to ROTATE SCREEN ADDRESS/DMX ADDRESS/DMX ADDRESS/DMX rotate screen SCREEN BRIGHTNESS SCREEN BRIGHTNESS BOTTON BACKLIGHT BOTTON BACKLIGHT PRESS“MENU”TO RETURN PRESS“MENU”TO RETURN Press the Function Knob to release the corresponding address code. LOCK CH:512 MENU ROTATE SCREEN...
- Page 13 4. When cleaning the fixture, please wipe off debris or dirt using a clothes and only dampen with water or a light cleanser. 5. The Forza 500 should be safely operated where it won’t be at risk of getting wet or under extreme temperatures.
- Page 14 Safety Precautions 1. Please open the package to check if it is damaged due to transportation after receiving the light. In case of damage caused by transportation, please do not use this light and contact the dealer or manufacturer as soon as possible. 2.
- Page 15 Version:V4 2019-11-15 +86-754-85751187 +86-754-85300887 service@nanlite.com Zhanglin,324,Dongli Chenghai Shantou Guangdong China www.nanlite.com...
