- Page 1 Compac 24B USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd...
-
Page 2: Product Diagram

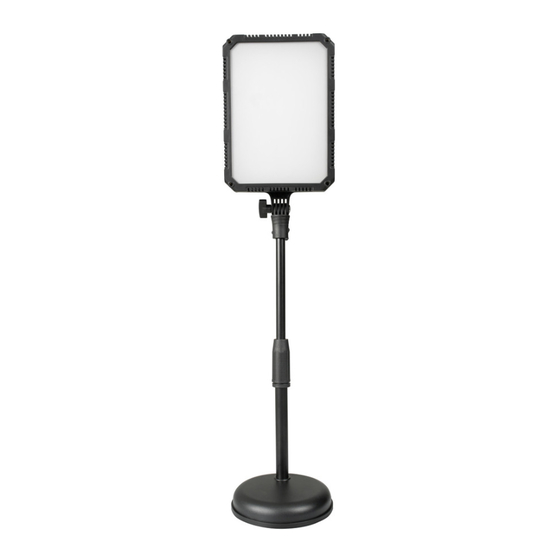

Compac 24B LED Studio Light Includes Desktop Stand Product Diagram Technical Data LED Power: 24W Voltage: 100V-240V AC Color Temperature: 3200K-5600K CRI(Ra): 95... - Page 3 Compac 24B x2 LED Studio Lights Includes x2 Desktop Stands Product Diagram Technical Data LED Power: 24W Voltage: 100V-240V AC Color Temperature: 3200K-5600K CRI(Ra): 95...
-
Page 4: Product Details
Product details 1. Color temperature knob 4. Dimmer knob 2. Power switch 5. AC power socket 6. Angle fixing knob 3. Bracket fixing knob Detailed description 1. Color temperature knob: For adjusting the color temperature. 2. Power switch: Turn on/off the fixture. 3. - Page 5 Usage 1. Please install the fixture on the light stand, then adjust the fixture to the desired position. 2. Please switch off the power then connect to AC 100-240V power. 3. Press the power switch to turn on the fixture. 4.
-
Page 6: Troubleshooting List
Troubleshooting List Diagnosis Potential Malfunction 1. Please check if the fixture is in the "off" position. The light can not light up. 2. Please check whether the connection between power cord plug and fixture is loose. 1. Please check whether the voltage value is within specified parameters. - Page 7 Desktop Stand x 1 User Manual x 1 Compac 24B USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd Compac 24B Desktop 2 Kit Compac 24B x 2 Power Cord x 2 Desktop Stand x 2 User Manual x 1 Compac 24B USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd...
- Page 8 Version: V1 2021-04-19 +86-754-85751187 +86-754-85300887 service@nanlite.com Zhanglin,324,Dongli Chenghai Shantou Guangdong China www.nanlite.com...
