- Page 1 PavoTube $ 15C PavoTube $ 30C USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd.
-
Page 2: Product Diagram

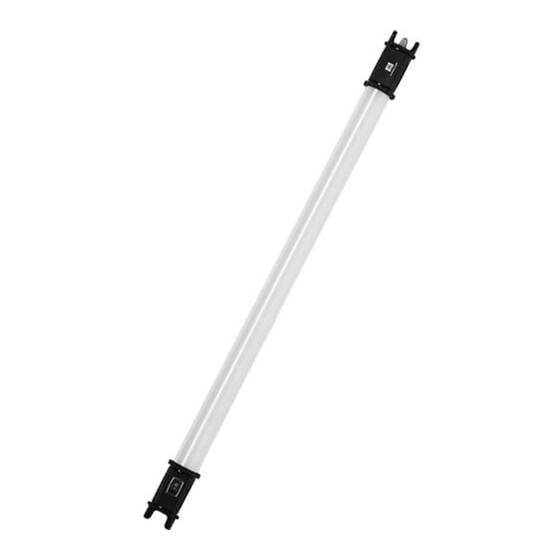

PavoTube $ 15C/30C RGBWW LED Tube Light Product Diagram PavoTube $ 15C PavoTube $ 30C Technical Data Model No: PavoTube II 15C Model No: PavoTube II 30C Rated Power: 30W Rated Power: 60W Input: DC15V/2A Max Input: DC15V/4A Max AC100-240V 50/60Hz AC100-240V 50/60Hz PD3.0 (9V-20V) 20W Min... -
Page 3: Product Details
1. Power Switch: Turn on/off the fixture. 2. Display: To display data. 3. USB Type-C Port: For updating the firmware and power input. (Note:PavoTube II 15C is compatible with power adapter with PD3.0/20W and above, PavoTube II 30C is compatible with power adapter with PD3.0/30W and above.) - Page 4 6. Lock Button: Long press the LOCK button to lock all functions, any operation won't change the current settings. Long press the LOCK button again to unlock. 7. Fixing Hole: For hanging the fixture with steel wire rope. 8. Function Knob: For selecting among functions. 9.
- Page 5 2. Light Fixture Installation ① Horizontal & vertical standing options. Upward in 90° Upward in 60° Upward in 60° Upward in 0°...
-
Page 6: Remote Control
(There are two 1/4-20" screw holes on the clip), or attached with a ball head, then mounted on the light stand. Remote Control PavoTube II 15C/30C support remote control via DMX/RDM and 2.4G, and include built-in Bluetooth module as well. ·... -
Page 7: Dmx Mode
MENU MENU BT: RESET BT: RESET Rotate the "dimmer knob" to set the channel code. ② DMX MODE MENU MODE BT: RESET LOCK Press the MODE button to access options. MENU DMX MODE: CCT 8bit DMX REDUCED: OFF Rotate the "function knob" to DMX MODE. MENU MENU DMX MODE:... - Page 8 ③ DMX REDUCED CHANNELS MENU MODE BT: RESET LOCK Press the MODE button to access options. MENU DMX MODE: CCT 16bit DMX REDUCED: Rotate the "function knob" to DMX REDUCED CHANNELS. MENU MENU DMX MODE: CCT 16bit DMX MODE: CCT 16bit DMX REDUCED: DMX REDUCED: Rotate the "dimmer knob"...
- Page 9 MENU DMX DIM: LINEAR DMX SMOOTHTN: OFF Rotate the "function knob" to DMX DIMMING CURVE. MENU MENU DMX DIM: LINEAR DMX DIM: EXPONENT DMX SMOOTHTN: OFF DMX SMOOTHTN: OFF Rotate the "dimmer knob" to select LINEAR, EXPONENT, LOGARITHM, S CURVE or GAMMA 2.2. ⑤...
- Page 10 MENU MENU DMX DIM: LINEAR DMX DIM: LINEAR DMX SMOOTHTN: DMX SMOOTHTN: Rotate the "dimmer knob" to select ON or OFF. 2. DMX Remote Control ① Connect the light fixture to the DMX/RDM console with a DMX connection cable. Connect the DMX connection cable to the console as shown below: DMX IN DMX OUT 1 GND...
- Page 11 Refer to the DMX reference guide and control the fixture via DMX/RDM console. (For detailed operation, please refer to the DMX/RDM console operation manual.) Note: DMX reference guide《PavoTube_II_15C_30C_DMX_REFERENCE_GUIDE_EN》is downloadable from www.nanlite.com or from the QR code as below. Please scan the QR code to check or download the latest DMX reference guide. 3. RDM Romote Control ①...
- Page 12 Manufacturer: Nanguang 4. 2.4G Remote Control PavoTube II 15C/30C can be remotely controlled by 2.4G remote controller and by NANLINK APP via the · WS-TB-1 transmitter box. PavoTube II 15C/30C also has built-in bluetooth and can be controlled via bluetooth.
- Page 13 Rotate the "dimmer knob" to select V1.0 or 2.0. Operating Instructions 1. Toggle the power switch to turn on the fixture, "NANLITE" logo will be displayed, that means the fixture starts up normally. 2. MODE button: Press the MODE button to switch among CCT, HSI, EFFECT and MENU.
- Page 14 MODE DIM: 100% CCT: 5600K G/M: 0 LOCK Press the MODE button to CCT. DIM: 100% CCT: 5600K G/M: 0 Rotate the "function knob" to select DIM, CCT or G/M. DIM: 100% DIM: 099% CCT: 5600K G/M: 0 CCT: 5600K G/M: 0 Rotate the "dimmer knob"...
- Page 15 ② HSI mode: Press the MODE button to HSI, rotate the "function knob" to select DIM, HUE or SAT, rotate the "dimmer knob" to set the parameters of DIM, HUE and SAT. DIM range: 000% --- 100%, HUE range: 000 --- 360, the HUE is with a loop regulation, SAT range: 000 --- 100. MODE DIM: 100% HUE: 000 SAT: 100...
- Page 16 ③ EFFECT mode, press the MODE button to EFFECT, rotate the "dimmer knob", PavoTube II 15C/30C have built-in effects including HUE LOOP, CCT LOOP, INT LOOP, CCT FLASH, HUE FLASH, CCT PULSE, HUE PULSE, STORM AUTO, POLICE CAR, TV, PAPARAZZl, CANDLE/FIRE, DISCO, BAD BULB, FIREWORK, EXPLOSION AUTO and WELDING.
- Page 17 (1) HUE LOOP HUE LOOP setting, rotate the "function knob" to select DIM, HUE or SPEED (range from: 2s -30s), and rotate the "dimmer knob" to set the parameters. EFFECT EFFECT HUE LOOP FX: HUE LOOP DIM: 100% DIM: 100% Rotate the "function knob"...
- Page 18 EFFECT EFFECT FX: CCT LOOP FX: CCT LOOP DIM: 100% DIM: 099% Rotate the "dimmer knob" to set the parameters. (3) INT LOOP INT LOOP setting, rotate the "function knob" to select DIM, SPEED (range from: 2s -30s) or COLOR (including CCT and HUE), and rotate the "dimmer knob"...
- Page 19 When COLOR setting is in CCT, rotate the "function knob" to CCT, and rotate the "dimmer knob" to set the CCT · parameters. EFFECT EFFECT FX: INT LOOP SPD: 08S DIM: 000% - 099% CLR: CCT CCT: 5600K Rotate the "function knob" to CCT. EFFECT EFFECT SPD: 08S...
- Page 20 (4) CCT FLASH CCT FLASH setting, rotate the "function knob" to select DIM, CCT, G/M or INTERVALS (range from: 0.1s -10.0s), and rotate the "dimmer knob" to set the parameters. EFFECT EFFECT CCT FLASH FX: CCT FLASH DIM: 100% DIM: 100% Rotate the "function knob"...
- Page 21 EFFECT EFFECT FX: HUE FLASH FX: HUE FLASH DIM: 100% DIM: 099% Rotate the "dimmer knob" to set the parameters. (6) CCT PULSE CCT PULSE setting, rotate the "function knob" to select DIM, CCT, G/M or PULSES/MIN (range from: 001-240), and rotate the "dimmer knob" to set the parameters. EFFECT EFFECT CCT PULSE...
- Page 22 (7) HUE PULSE HUE PULSE setting, rotate the "function knob" to select DIM, HUE, SAT or PULSES/MIN (range from: 001-240), and rotate the "dimmer knob" to set the parameters. EFFECT EFFECT HUE PULSE FX: HUE PULSE DIM: 100% DIM: 100% Rotate the "function knob"...
- Page 23 EFFECT EFFECT FX: STORM AUTO FX: STORM AUTO DIM: 100% DIM: 099% Rotate the "dimmer knob" to set the parameters. (9) POLICE CAR POLICE CAR setting, rotate the "function knob" to select DIM, COLOR (including blue, red/blue, blue/white, red/blue/white) or SPEED (range from: 1 -100), and rotate the "dimmer knob" to set the parameters. EFFECT EFFECT POLICE CAR...
- Page 24 (10) TV TV setting, rotate the "function knob" to select DIM, CCT, G/M or SPEED (range from: 001 -100), and rotate the "dimmer knob" to set the parameters. EFFECT EFFECT FX: TV DIM: 000% - 100% DIM: 000% - 100% Rotate the "function knob"...
- Page 25 EFFECT EFFECT FX: PAPARAZZI FX: PAPARAZZI DIM: 100% DIM: 099% Rotate the "dimmer knob" to set the parameters. (12) CANDLE/FIRE CANDLE/FIRE setting, rotate the "function knob" to select DIM, CCT, G/M or SPEED (range from: 001 -100), and rotate the "dimmer knob" to set the parameters. EFFECT EFFECT CANDLE/FIRE...
- Page 26 (13) DISCO DISCO setting, rotate the "function knob" to select DIM, COLOR (color range:03, 06, 09, 12, 15, 18, 21, 24) or SPEED (range from: 001 -100) and rotate the "dimmer knob" to set the parameters. EFFECT EFFECT DISCO FX: DISCO DIM: 100% DIM: 100% Rotate the "function knob"...
- Page 27 EFFECT EFFECT FX: BAD BULB FX: BAD BULB DIM: 100% DIM: 099% Rotate the "dimmer knob" to set the parameters. (15) FIREWORK FIREWORK setting, rotate the "function knob" to select DIM, COLOR (color range:03, 06, 09, 12, 15, 18, 21, 24), SPEED (range from: 1 -100) or DECAY, and rotate the "dimmer knob" to set the parameters. EFFECT EFFECT FIREWORK...
- Page 28 (16) EXPLOSION AUTO EXPLOSION AUTO setting, rotate the "function knob" to select DIM, CCT, G/M, SPEED (range from: 001 -100) or DECAY, and rotate the "dimmer knob" to set the parameters. EFFECT EFFECT EXPLOSION AUTO FX: EXPLOSION AUTO DIM: 100% DIM: 100% Rotate the "function knob"...
- Page 29 EFFECT EFFECT FX: WELDING FX: WELDING DIM: 000% - 100% DIM: 000% - 099% Rotate the "dimmer knob" to set the parameters. Lighting effects and additional functionality will be probably updated with later firmware version. · Detailed information is subject to the instruction of firmware function. ④...
- Page 30 MENU BT RESET CH: 512 BAKC RESET RESET Press the "function knob" to BLUETOOTH RESET. BT RESET BT RESET BAKC RESET BAKC RESET Rotate the "function knob" to RESET. MENU BT RESET CH: 512 BAKC RESET RESET Press the "function knob" to reset bluetooth, the screen will appear SET, and switch to the menu interface. (3) DMX MODE For detailed operations please refer to P6.
-
Page 31: Firmware Update
(6) DMX SMOOTHING For detailed operations please refer to P8. (7) WIRELESS PROTOCOL For detailed operations please refer to P11. (8) FIRMWARE UPDATE Plug in USB drive that has the latest firmware file. MENU MODE BT: RESET LOCK Press the MODE button to MENU. MENU WIRELESS PRO: V1.0 FW UPDATE:... - Page 32 FOUND FIRMWARE FOUND FIRMWARE _V1.02.08 _V1.02.08 BACK UPDATE BACK UPDATE Rotate the "function knob" to select UPDATE. FOUND FIRMWARE _V1.02.08 FIRMWARE UPDATED BACK UPDATE Press the "function knob", the screen will prompt "FIRMWARE UPDATED" after the update is finished. (9) LANGUAGE MENU MODE BT: RESET...
- Page 33 MENU 菜单 LANGUAGE: ENGLISH 语言：中文 VERSION: V1.00.02 固件版本：V1.00.02 Rotate the "dimmer knob" to select ENGLISH or 中文 (10) VERSION MENU MODE BT: RESET LOCK Press the MODE button to MENU. MENU LANGUAGE: ENGLISH VERSION: V1.00.02 Rotate the "function knob" to VERSION to check the version of the fixture. 3.
-
Page 34: Safety Precautions
4. Please set up the fixture in a dry and well-ventilated place. Please do not use it in any humid, dusty or overheated environment. The temperature of the environment for the PavoTube II 15C should not be higher than 45℃, while the temperature for PavoTube II 30C should not be higher than 40℃. - Page 35 What's in the box? Please kindly check. PavoTube II 15C 1KIT PavoTube II 15Cx1 Power Adapter×1 Clip×1 User Manual×1 PavoTube $ 15C PavoTube $ 30C USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd. Carrying Bag×1 Power Cable×1 Steel Wire Rope×2 PavoTube II 15C 2KIT PavoTube II 15C×2...
- Page 36 PavoTube II 30C 1KIT PavoTube II 30Cx1 Power Adapter×1 Clip×1 User Manual x1 PavoTube $ 15C PavoTube $ 30C USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd. Carrying Bag×1 Power Cable×1 Steel Wire Rope×2 PavoTube II 30C 2KIT Power Adapter×2 Clip×2 User Manual×1 PavoTube II 30Cx2...
- Page 37 If the failure is not resolved after troubleshooting, please contact place of purchase. This manual has been compiled according to the rigorous testing of NANLITE products. Product designs are subject to change without prior notice. You can download the latest version of the manual for this particular product from...
- Page 38 Version: V3 2022-11-14 +86-754-85751187 +86-754-85300887 service@nanlite.com Zhanglin,324,Dongli Chenghai Shantou Guangdong China www.nanlite.com...
