- Page 1 PavoTube $ 15X PavoTube $ 30X PavoTube $ 60X USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd...
-
Page 2: Technical Data
RGBWW LED Pixel Tube Light Product Diagram PavoTube $ 15X PavoTube $ 30X PavoTube $ 60X Technical Data Model No.: PavoTube II 15X Model No.: PavoTube II 30X Model No.: PavoTube II 60X Rated Power: 35W Rated Power: 70W Rated Power: 106W... -
Page 3: Product Details
Product Details 7 8 9 Detailed Description 1. 1/4-20 Mount Receiver: To match the accessories with 1/4-20 mount. 2. Display: Menu and option display. 3. MODE Button: Switch between modes CCT, HSI, EFFECT, PIXEL FX and MENU. 4. " " & " ": Increase or decrease settings, supports long/short press. - Page 4 Usage 1. Power Connection ① Connecting the fixture with power adapter. ② Built in battery automatically powers unit once charged and unplugged from a power source. 2. Eyebolts Installation...
-
Page 5: Remote Control
Remote Control · PavoTube II 15X/30X/60X supports remote control via 2.4G, DMX, RDM, and has built-in Bluetooth. ▲The channel needs to be set before operating the remote control via 2.4G, DMX, RDM. 1. Channel Setting PIXEL FX 6.0h MENU 6.0h... - Page 6 (2) The connection between the DMX adapter cable and console is as follows: DMX IN DMX OUT GND 1 1 GND DATA - 2 2 DATA - DATA + 3 3 DATA + · The connection between the light fixture and DMX/RDM console, light fixture and light fixture should use DMX adapter cable.
- Page 7 3. 2.4G Remote Control Set the channel of the 2.4G remote controller to be consistent with the light fixture, enabling the PavoTube II 15X/30X/60X to be remotely controlled by 2.4G remote controller or by APP via the transmitter box. ①...
- Page 8 Control the fixture via a console with RDM function. (For specific operation methods, please refer to the RDM console operation manual.) Note: The UID format of the fixture is as follows: 0008 XXXX XXXX Serial number 0401：PavoTube II 15X 0402：PavoTube II 30X 0403：PavoTube II 60X Manufacture: Nanguang...
- Page 9 Operating Instructions 1. Toggle the power switch to turn on the light, "NANLITE" logo will be displayed on start up. 2. MODE button: Press MODE button to switch between modes - CCT, HSI, EFFECT, PIXEL FX and MENU. Battery indicator...
- Page 10 6.0h 6.0h 2700K DIM: 100% DIM: 100% CCT: 05600 G/M:0 CCT: 05700 G/M:0 12000K Pres " " and " " to set the corresponding parameters. Note: In EFFECT mode, the adjustable range of DIM, CCT and G/M are the same as CCT mode. ②...
- Page 11 FX: HUE LOOP FX: HUE LOOP DIM: 100% DIM: 099% ④ In PIXEL FX mode, PavoTube II 15X/30X/60X has built-in effects including HUE LOOP, CCT LOOP, INT LOOP, MULTICOLOR, FADE, SCROLL, RAINBOW. The setting method is the same as Effect mode.
- Page 12 ⑤ MENU Press MODE button to switch to MENU, then press SWITCH button to switch between CH, LANGUAGE, DMX MODE, DMX PIXEL, WIRELESS PR, BLUETOOTH RESET and VERSION. Channel setting, please refer to P4 for channel settings. Language setting MENU 6.0h MENU 6.0h...
- Page 13 DMX MODE setting MENU MENU 6.0h 6.0h CH: 512 DMX MODE: CCT 8bit LANGUAGE: DMX PIXEL: 8 Press SWITCH button to DMX MODE. MENU 6.0h MENU 6.0h DMX MODE: CCT 8bit DMX MODE: CCT 16bit DMX PIXEL: 8 DMX PIXEL: 8 Press "...
- Page 14 Wireless protocol, please refer to P6 for wireless protocol settings. Bluetooth reset MENU 6.0h MENU 6.0h WIRELESS PR: V2.0 WIRELESS PR: V2.0 BT: RESET RESET Press SWITCH buton to BT. MENU 6.0h Reset bluetooth WIRELESS PR: V2.0 Back Reset RESET Press "...
-
Page 15: Safety Precautions
Press SWITCH button to VERSION to check the current version of the fixture. · Lighting effects and additional functionality maybe added with future firmware releases, for details of these please see www.nanlite.com. 3. Toggle the power switch to turn off the light. - Page 16 4. The light should be operated safely where it won't be at risk of getting wet or under extreme temperature. The operating temperature of PavoTube II 15X and PavoTube II 30X should not be higher than 45°C, and the operating temperature of PavoTube II 60X should not be higher than 40°C. Do not use or store the fixture around objects with high heat.
- Page 17 What’s in the box? Please kindly check. PavoTube II 15X 1KIT PavoTube II 15X × 1 15V2A Power Adapter × 1 Clip × 1 User Manual × 1 PavoTube $ 15X PavoTube $ 30X PavoTube $ 60X USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd Carrying Bag ×...

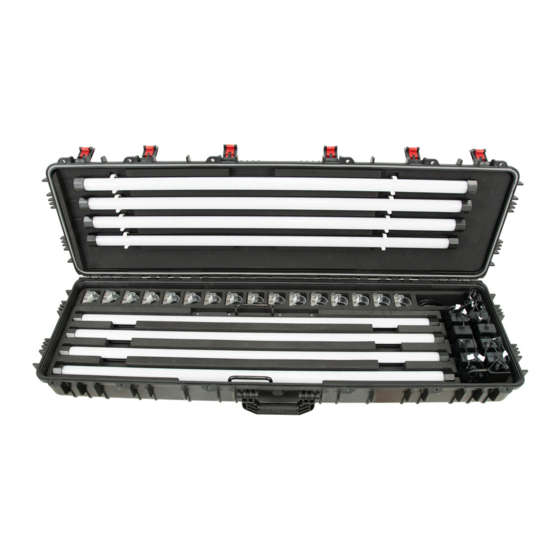

- Page 18 PavoTube ll 15X 8KIT PavoTube II 15X × 8 15V/2A Power Adapter × 8 Clip × 16 User Manual × 1 PavoTube $ 15X PavoTube $ 30X PavoTube $ 60X USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd Hard Case × 1 Floor Stand ×...
- Page 19 PavoTube II 30X 1KIT PavoTube II 30X × 1 15V4A Power Adapter × 1 Clip × 1 User Manual × 1 PavoTube $ 15X PavoTube $ 30X PavoTube $ 60X USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd Carrying Bag × 1 Power Adapter Rubber Strap ×...
- Page 20 PavoTube ll 30X 8KIT PavoTube II 30X × 8 15V/4A Power Adapter × 8 Clip × 16 User Manual × 1 PavoTube $ 15X PavoTube $ 30X PavoTube $ 60X USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd Hard Case × 1 Floor Stand ×...
- Page 21 PavoTube II 60X 2KIT PavoTube II 60X × 2 15V6.5A Power Adapter × 2 Clip × 4 User Manual × 1 PavoTube $ 15X PavoTube $ 30X PavoTube $ 60X USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd Power Cable 3M × 2 Power Adapter Rubber Strap ×...
- Page 22 If the failure is not resolved after troubleshooting, please contact place of purchase. This manual and all stats within it were produced under controlled conditions, and are accurate at time of print. Any future changes to design/technical data can be found at www.nanlite.com.
- Page 23 Version: V4 2021-10-21 +86-754-85751187 +86-754-85300887 service@nanlite.com Zhanglin,324,Dongli Chenghai Shantou Guangdong China www.nanlite.com...
