Forza 60B $
USER MANUAL
Guangdong NanGuang Photo&Video Systems Co., Ltd

Advertisement

Table of Contents
loading

Related Manuals for NANLITE Forza 60B II

Summary of Contents for NANLITE Forza 60B II

  • Page 1 Forza 60B $ USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd...

  • Page 2: Product Diagram

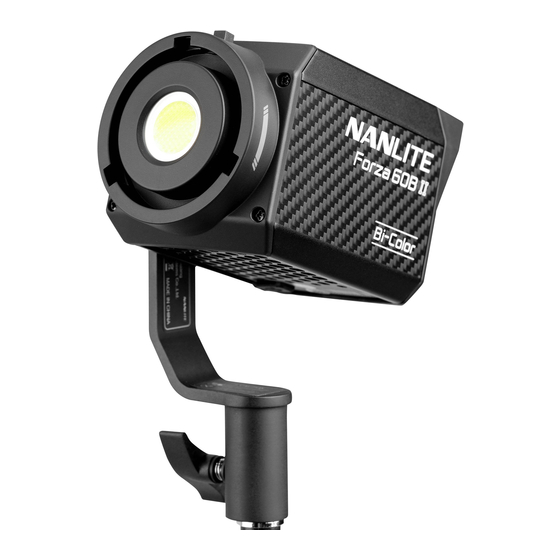

    Forza 60B $ LED Bi-color Spot Light Product Diagram Technical Data Rated Power: 72W Input voltage/current: DC 15V/6A Max AC100-240V 50/60Hz Color Temperature: 2700K-6500K CRI: Average 96 TLCI: Average 98...

  • Page 3: Product Details

    Product Details 1. Angle Fixing Knob 4. Lock Catch 6. Display 11. Right Knob 7. Left Knob 12. MODE Button 8. DC Power Socket 9. Power Switch 2. L Shaped Bracket 10. DMX In/Out 5. Reflector 3. Bracket Fixing Knob 13.

  • Page 4: Detailed Description

    Detailed Description 1. Angle Fixing Knob: For adjusting and fixing the tilt direction of fixture. 2. L Shaped Bracket: Designed for connecting the light to the light stand and adjusting the direction of illumination. 3. Bracket Fixing Knob: For locking the light fixture on the stand, and for pan adjustment of fixture. 4.
  • Page 5 Usage 1. Installation and Detachment of Reflector ① When installing the reflector, align the reflector to the fixture's FM mount, rotate the reflector in the direction shown on the fixture until it clicks into place. Note: This light is with FM mount, so please use accessories with FM mount, if the accessories with Bowens mount are needed, pls mount after installing the Bowens mount adapter.
  • Page 6 2. Installation and Detachment of Bowens Mount Adapter ① ② Adjust the L shaped bracket to the top position When installing the adapter, ensure its mounting before installation. points align with the slots on the light fixture, rotate it according to the direction shown on the fixture until the adapter is put into place.
  • Page 7 ⑤ ⑥ When removing the accessory, push and hold the When removing the adapter, push and hold the release button and rotate according to the direction release button and rotate according to the direction shown on the adapter until the accessory is free to shown on the light until the adapter is free to be be removed from the adapter.

  • Page 8: Remote Control

    Remote Control Forza 60B II supports 2.4G remote control, DMX/RDM control, and includes a built-in Bluetooth module as well. · ▲ The channel needs to be set before operating the remote control via 2.4G and DMX/RDM. 1. CHANNEL and DMX Mode Setting, including CHANNEL, DMX MODE, DMX REDUCED CHANNELS, DMX DIMMING CURVE and DMX SMOOTHING settings.
  • Page 9 ② DMX Mode Setting MENU MODE OUTPUT MODE: MAX Press the MODE button to enter the menu. MENU MENU BT: RESET OUTPUT MODE: MAX DMX MODE: ULTIMATE Rotate the “right knob” to DMX MODE. MENU MENU BT: RESET BT: RESET DMX MODE: ULTIMATE DMX MODE:...
  • Page 10 MENU MENU DMX REDUCED: OUTPUT MODE: MAX DMX DIM: LINEAR Rotate the “right knob” to DMX REDUCED CHANNEL . MENU MENU DMX REDUCED: DMX REDUCED: DMX DIM: LINEAR DMX DIM: LINEAR Rotate the “left knob” to select ON or OFF. ④...
  • Page 11 MENU MENU DMX REDUCED: OFF DMX REDUCED: OFF DMX DIM: LINEAR DMX DIM: EXPONENT Rotate the “left knob” to select LINEAR, EXPONENT, LOGARITHM, S CURVE or GAMMA 2.2. ⑤ DMX SMOOTHING MENU MODE OUTPUT MODE: MAX Press the MODE button to enter the MENU. MENU MENU DMX SMOOTHING:...
  • Page 12 2. DMX Control ① Connect the fixture to the DMX/RDM consoles via DMX cable as shown below: DMX IN DMX OUT GND 1 1 GND DATA- 2 2 DATA- DATA+ 3 3 DATA+ ② DMX Terminator ln DMX control mode, the DMX output of the last light fixture should be connected with a DMX terminator (not included).
  • Page 13 Refer to the DMX reference guide and control the light via DMX/RDM console. (For detailed operation please refer to the DMX/RDM console operation manual.) Note: DMX reference guide "Forza_60B II_REFERENCE_GUIDE_EN" is downloadable from www.nanlite.com. Please scan the QR to check and download the latest DMX reference guide.
  • Page 14 4. 2.4G Remote Control Forza 60B II can be remotely controlled by 2.4G remote controller and by NANLINK APP via Bluetooth directly · or via the WS-TB-1 transmitter box. ① Note: 2.4G remote controller and WS-TB-1 transmitter box are sold separately.
  • Page 15 Operating Instructions 1. Connection between fixture and power adapter. ① First ensure that the power switch is off. Now turn on the light, the screen will display all the relevant information for the fixture. EFFECT CH: 512 CCT LOOP DIM: 100%...
  • Page 16 2. CCT Mode setting Press MODE button to CCT mode, Rotate the “left knob” to adjust the DIM (DIM range: 000%…100%), rotate "right Knob" to adjust the color temperature (CCT range: 2700K…6500K) CH: 512 000% 6500K MODE Press MODE button to CCT mode. CH: 512 CH: 512 000% 6500K...
  • Page 17 Press continuously to switch the fixture betweeen on and off. 3. EFFECT Mode setting Press MODE button to EFFECT mode. The Forza 60B II has built-in effects including CCT LOOP, INT LOOP, FLASH, PULSE, STORM, TV, PAPARAZZI, CANDLE/FIRE, BAD BULB, FIREWORK, EXPLOSION and WELDING.
  • Page 18 ① CCT LOOP CCT LOOP setting: Rotate the “right knob” to select from DIM, CCT and SPD (Range: 02S…30S), then rotate the “left knob” to set the parameters. EFFECT CH: 512 EFFECT CH: 512 CCT LOOP FX: CCT LOOP DIM: 100% DIM: 100% Rotate the “right knob”...
  • Page 19 EFFECT CH: 512 EFFECT CH: 512 FX: INT LOOP FX: INT LOOP DIM: 000%-100% DIM: 001%-100% Rotate the “left knob” to set the parameters. ③ FLASH FLASH setting: Rotate the “right knob” to select from DIM, CCT and INTVL (INTVL: 0.1S…10S), then rotate the “left knob”...
  • Page 20 ④ PULSE PULSE setting: Rotate the “right knob” to select from DIM, CCT and PULSES/MIN (Range: 001…240), then rotate the “left knob” to set the parameters. EFFECT CH: 512 EFFECT CH: 512 FULSE FX: FULSE DIM: 100% DIM: 100% Rotate the “right knob” to select from DIM, CCT and PULSES/MIN. EFFECT CH: 512 EFFECT...
  • Page 21 EFFECT CH: 512 EFFECT CH: 512 FX: STORM FX: STORM DIM: 100% DIM: 099% Rotate the “left knob” to set the parameters. ⑥ TV setting: Rotate the “right knob” to select from DIM, CCT and SPD (Range: 001…100), then rotate the “left knob” to set the parameters. EFFECT EFFECT CH: 512...
  • Page 22 ⑦ PAPARAZZI PAPARAZZI setting: Rotate the “right knob” to select from DIM, CCT and SPD (Range: 001…100), then rotate the “left knob” to set the parameters. EFFECT CH: 512 EFFECT CH: 512 PAPARAZZI FX: PAPARAZZI DIM: 100% DIM: 100% Rotate the “right knob” to select from DIM, CCT and SPD. EFFECT CH: 512 EFFECT...
  • Page 23 EFFECT CH: 512 EFFECT CH: 512 FX: CANDLE/FIRE FX: CANDLE/FIRE DIM: 000%-100% DIM: 001%-100% Rotate the “left knob” to set the parameters. ⑨ BAD BULB BAD BULB setting: Rotate the “right knob” to select from DIM, CCT and SPD (Range: 001…100), then rotate the “left knob”...
  • Page 24 ⑩ FIREWORK RIREWORK setting: Rotate the “right knob” to select from DIM ,CCT, SPD (Range: 001…100) and DECAY (Range: 001…100), then rotate the “left knob” to set the parameters. EFFECT CH: 512 EFFECT CH: 512 FIREWORK FX: FIREWORK DIM: 100% DIM: 100% Rotate the “right knob”...
  • Page 25 EFFECT CH: 512 EFFECT CH: 512 FX: EXPLOSION FX: EXPLOSION DIM: 100% DIM: 099% Rotate the “left knob” to set the parameters. ⑫ WELDING WELDING setting: Rotate the “right knob” to select from DIM, CCT, SPD (Range: 001…100) and PAUSE (ON/OFF), then rotate the “left knob”...

  • Page 26: Output Mode

    4. MENU setting MENU MODE OUTPUT MODE: MAX Press MODE button to MENU. MENU MENU CH: 512 OUTPUT MODE: MAX OUTPUT MODE: Press "right Knob" to select from CHANNEL, OUTPUT MODE, BLUETOOTH, DMX MODE, DMX REDUCED CHANNELS, DMX DIMMING CURVE, DMX SMOOTHING, WIRELESS PROTOCOL, FAN, FIRMWARE UPDATE, LANGUAGE and FIRMWARE VERSION.

  • Page 27: Bluetooth Reset

    MENU MENU CH: 512 OUTPUT MODE: MAX OUTPUT MODE: Rotate the “right knob” to OUTPUT MODE. MENU MENU CH: 512 CH: 512 OUTPUT MODE: OUTPUT MODE: CONST Rotate the “left knob” to select MAX or CONSTANT. ③ BLUETOOTH RESET MENU MODE OUTPUT MODE: MAX Press MODE button to switch to the MENU.

  • Page 28: Dmx Mode

    MENU BT RESET RESET BACK RESET DMX MODE: ULTIMATE Press the “right knob” to enter the interface of BLUETOOTH RESET. BT RESET BT RESET BACK RESET BACK RESET Rotate the “right knob” to select RESET. MENU BT RESET BACK RESET OUTPUT MODE: MAX Press "right Knob"...

  • Page 29: Wireless Protocol

    ⑦ DMX SMOOTHING For DMX smoothing setting, please refer to P9 for detailed operations. ⑧ WIRELESS PROTOCOL For wireless protocol setting, please refer to P12 for detailed operations. ⑨ MENU MODE OUTPUT MODE: MAX Press MODE button to MENU. MENU MENU FAN: OUTPUT MODE: MAX...

  • Page 30: Firmware Update

    ⑩ FIRMWARE UPDATE Insert the USB flash drive with the latest firmware into the light fixture. MENU MODE OUTPUT MODE: MAX Press MODE button to MENU. MENU MENU FAN: OFF OUTPUT MODE: MAX FW UPDATE: UPDATE Rotate the “right knob” to FW UPDATE. MENU FOUND FIRMWARE _V1.02.08...
  • Page 31 FOUND FIRMWARE _V1.02.08 FIRMWARE UPDATED BACK UPDATE Press "right Knob" to start the update, it will show "FIRMWARE UPDATED" after the firmware update is completed. ⑪ LANGUAGE MENU MODE OUTPUT MODE: MAX Press MODE button to MENU. MENU MENU LANGUAGE: ENGLISH OUTPUT MODE: MAX VERSION: V1.02.02...
  • Page 32 ⑫ VERSION MENU MODE OUTPUT MODE: MAX Press MODE button to MENU. MENU MENU LANGUAGE: ENGLISH OUTPUT MODE: MAX VERSION: V1.02.02 Rotate the “right knob” to VERSION to check the current firmware version. 5. Lock or Unlock Settings: long press the "right knob" to lock the light status. The current light status cannot be changed by pressing the button or rotating the knobs.

  • Page 33: Safety Precautions

    6. When the fixture is not in use, please turn it off. Safety Precautions 1. Please check for possible damage caused in transit after opening the package. Please do not use if damage is found. And contact with the distributor or manufacturer as soon as possible. 2.
  • Page 34 What's in the box? Please kindly check. Forza 60B II ×1 Power Adapter ×1 Power Cable 3M ×1 User Manual × 1 Forza 60B $ USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd Carrying Bag ×1 Bowens Mount Adapter ×1 COB Protective Cap ×1 DMX Reference Guide ×1...
  • Page 35 If the failure is not resolved after troubleshooting, please contact place of purchase. This manual has been compiled according to the rigorous testing of our company's products. Product designs are subject to change without prior notice. You can download the latest version of the manual for this particular product from www.nanlite.com.
  • Page 36 Version: V1 2022-08-19 +86-754-85751187 +86-754-85300887 service@nanlite.com Zhanglin,324,Dongli Chenghai Shantou Guangdong China www.nanlite.com...
