Position Main Slide Frame Assembly; Install Front Mount Bracket - Steelcase Empath Quick Start Manual

Standard or Trendelenburg
Foot Tray Installation
3.

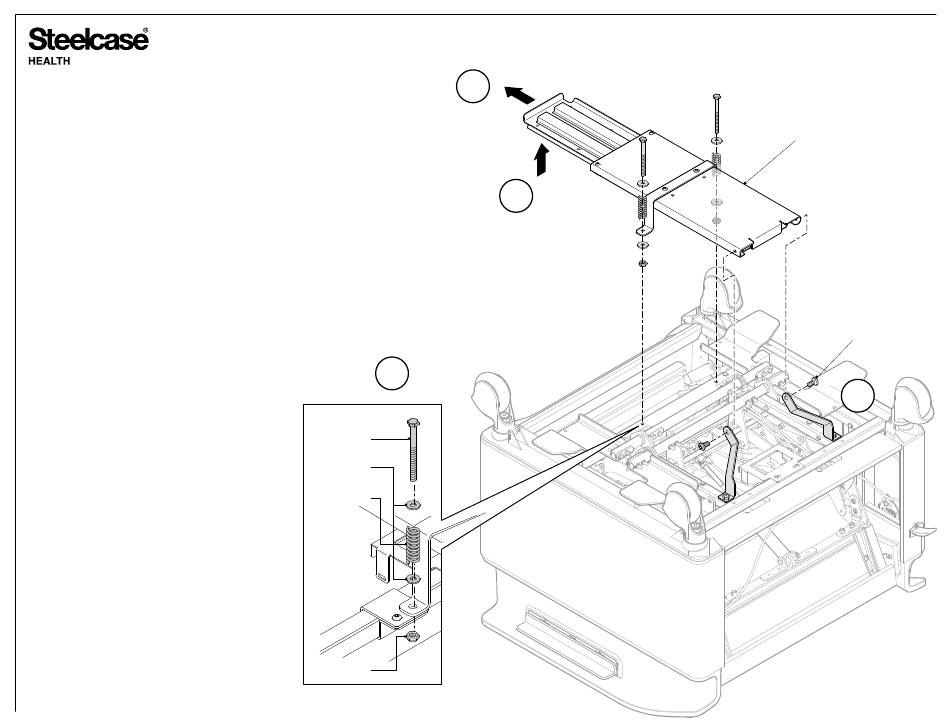

Position main slide frame assembly in the center of
the chair frame.
4.
Fasten main slide frame to left and right hand rear
mount brackets with 1/2-20 x 1/2 button head cap screws.
5.
Install front mount bracket with 1/4-20 x 3" hex bolt,
spring, two (2) washers and nut as shown. Tighten bolt
until the threads bottom out inside the nut. Tighten
1/4-20 x 1/2" button head cap screw after adjusting
position. Repeat for the opposite side. Make sure all
mounting brackets installed in step 1 are secured.
6.
Slide out tray (6a) and press in
the direction of the arrow (6b). To
ensure quiet operation, make sure
hex bolts are tightened securely.
6a
5
1/4-20 x 3"
HEX BOLT
WASHERS
SPRING
CAP NUT
6b
MAIN SLIDE
FRAME ASSEMBLY
CAP SCREW
4
Page 3 of 4
939502131 Rev C
