Empath

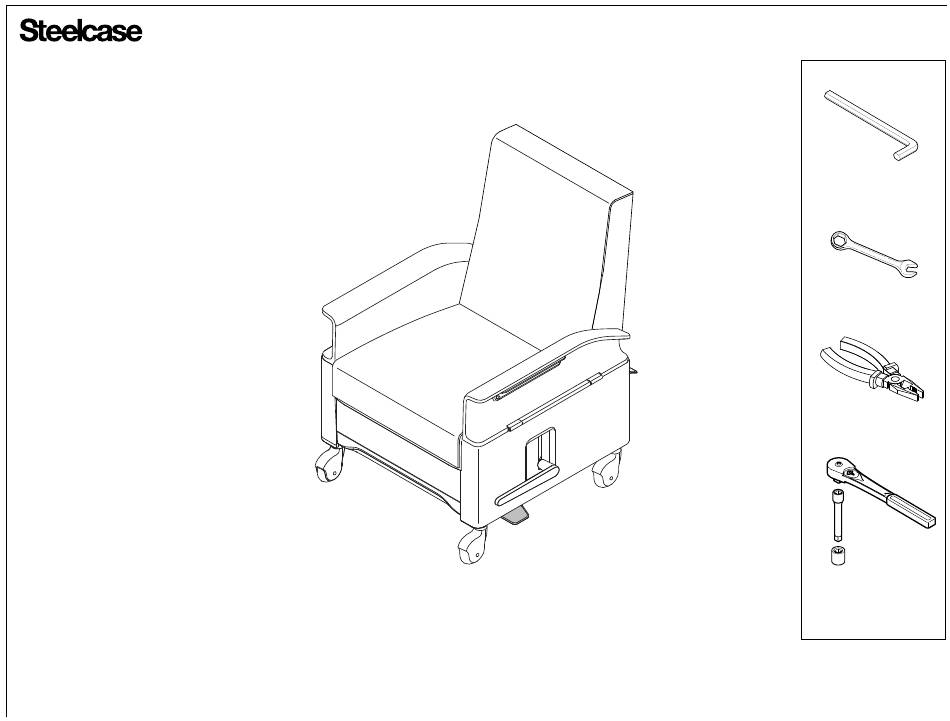

Central Lock Replacement

™

HEALTH

1/8" Allen Wrench

7/16" (.438") Wrench

Pliers

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

7/16" (.438") Hex Socket

888.STEELCASE (888.783.3522)

w/Extension & Ratchet

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

English - Pages 1 to 6 of 18

2016 Steelcase Inc.

Spanish - Pages 7 to 12 of 18

Grand Rapids, MI 49501

Arabic - Pages 13 to 18 of 18

U.S.A.

75745 Rev C

Printed in U.S.A.

Need help?

Do you have a question about the Empath and is the answer not in the manual?

Questions and answers

Summary of Contents for Steelcase Empath

Page 1 1/8” Allen Wrench 7/16” (.438”) Wrench Pliers If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 7/16” (.438”) Hex Socket 888.STEELCASE (888.783.3522) w/Extension & Ratchet for immediate action by people who want to help you.
Page 2 ® HEALTH NOTE: Simplified views of this service procedure are provided to show the required steps for the replacement of the central lock mechanism. Any product disassembly for access to the central lock NOTE: Some detail mechanism is at the discretion of the installer removed for clarity.
Page 3 ® HEALTH NOTE: Some detail removed for clarity. Using a 1/8” Allen wrench, remove the shoulder screw that retains the lock mechanism cover and attached mechanism components. Discard these items. Using ratchet, 7/16” socket and wrench, remove and RIGHT FOOT PEDAL save the two (2) 1/4-20 bolts and nuts securing the brake latch actuator to the foot control bar.
Page 4 ® HEALTH CABLE ANCHOR Remove and discard the old bushing from the cable BRACKET anchor bracket (8a).Install the supplied bushing into the cable anchor bracket as shown, making sure it is fully SUPPLIED BUSHING seated in the bracket (8b). Install the replacement mechanism mounting plate and secure it to the frame using the 1/4-20 bolts and nuts removed NOTE: Some detail from the old mechanism in step 7.
Page 5 ® HEALTH NOTE: Some detail removed for clarity. Reinstall the left foot pedal and bar assembly (12a). Reinstall the right foot pedal and secure it with the 1/4-20 bolts removed in step 6 (12b). Be careful not to overtighten bolts. RIGHT FOOT PEDAL Align the brake toggle actuator over the mounting holes in the foot control bar and secure it with the 1/4-20 bolts...
Page 6 ® HEALTH Install the left hand lock guide onto the top of the mechanism cover plate, as shown, making sure it is fully seated. Align the actuator spring, as shown (16a). Slide the spring over the outside of the housing on the rear mounting hole of the lock guide (16b).
Page 7 Llave mixta de 7/16 pulgadas (0,438 pulgadas) Alicates Si tiene un problema, pregunta o inquietud, llame a su distribuidor local, o a Steelcase línea 1 al 888.STEELCASE (888.783.3522) para obtener una acción inmediata de las personas Llave tubo hexagonal de que quieren ayudarle.
Page 8 ® HEALTH NOTA: Las vistas simplificadas de este procedimiento de servicio se proveen para mostrar los pasos requeridos para el reemplazo del mecanismo de bloqueo central. Cualquier desmontaje del producto para acceder al NOTA: Algún detalle retirado mecanismo central de bloqueo es a voluntad del instalador que ejecuta el servicio, pero debe estar para mayor claridad.
Page 9 ® HEALTH NOTA: Algún detalle retirado Con una llave Allen de 1/8 pulgada, retire el tornillo de para mayor claridad. resalto que retiene a la tapa del mecanismo de bloqueo y a los componentes sujetos al mecanismo. Deseche estos elementos. PEDAL DERECHO Con una llave de trinquete, una llave de tubo y una llave mixta de 7/16 pulgadas, retire y guarde de dos (2)
Page 10 ® HEALTH SOPORTE DE ANCLAJE DEL CABLE Retire el manguito aislador viejo del soporte de anclaje del cable y deséchelo (8a). Instale el manguito aislador provisto en el soporte de anclaje del cable como se muestra, MANGUITO AISLADOR PROVISTO asegurándose que quede completamente asentado en el soporte (8b).
Page 11 ® HEALTH NOTA: Algún detalle retirado para mayor claridad. Vuelva a instalar el pedal izquierdo y el ensamble barra (12a). Vuelva a instalar el pedal derecho y asegúrelo con los pernos de ¼-20 retirados en el paso 6 (12b). Tenga cuidado de no apretar en exceso los pernos.
