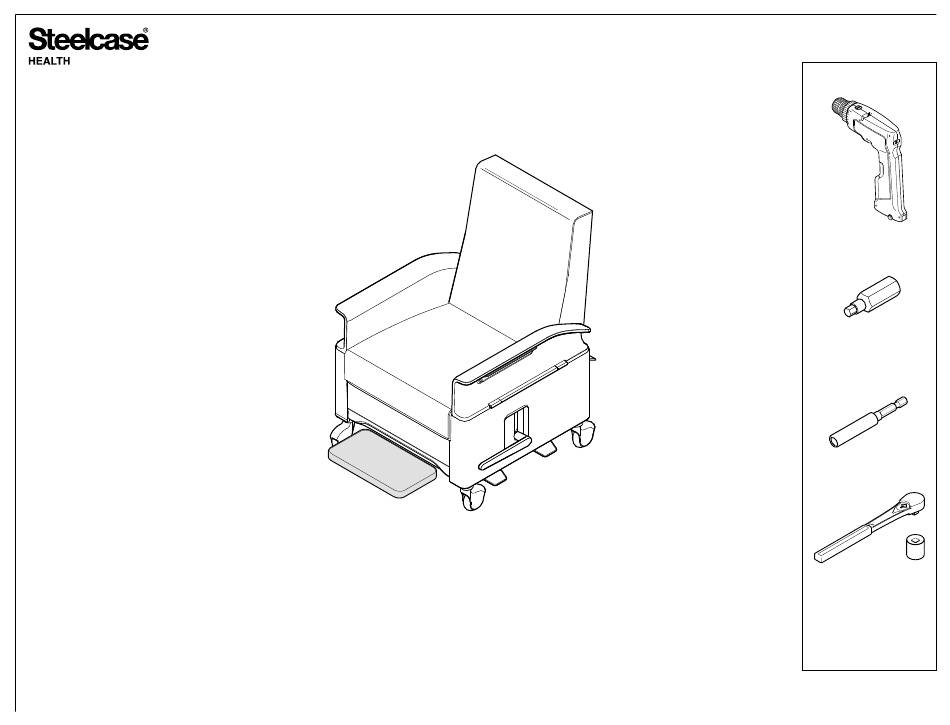

Empath™ Recliner Footrest Installation

HEX DRIVE

(Footrest shown in the fully extended position)

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

Grand Rapids, MI 49501

Page 1 of 4

U.S.A.

Printed in U.S.A.

939502131 Rev C

Table of Contents

Need help?

Do you have a question about the Empath and is the answer not in the manual?

Page 1 HEX DRIVE (Footrest shown in the fully extended position) If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
Page 2 Standard or Trendelenburg REAR MOUNT BRACKET Foot Tray Installation REAR MOUNT BRACKET Attach rear brackets to chassis. Install front bracket to main slide frame with 1/4-20 x 1/2" button head cap screws. 1/4-20 x 1/2" BUTTON HEAD CAP SCREW FRONT BRACKET 1/4-20 x 1/2"...
Page 3 MAIN SLIDE Standard or Trendelenburg FRAME ASSEMBLY Foot Tray Installation Position main slide frame assembly in the center of the chair frame. Fasten main slide frame to left and right hand rear mount brackets with 1/2-20 x 1/2 button head cap screws. Install front mount bracket with 1/4-20 x 3"...
Page 4 Position footrest, as shown, onto the slide frame assembly and install with four (4) 1/4-20 x 3/4" button head cap screws and four (4) spacers. TEST FOOTREST Check the tightness of the foot tray to ensure that the slide frame assembly is not loose when a person is in the standing or seated position.
