Standard or Trendelenburg

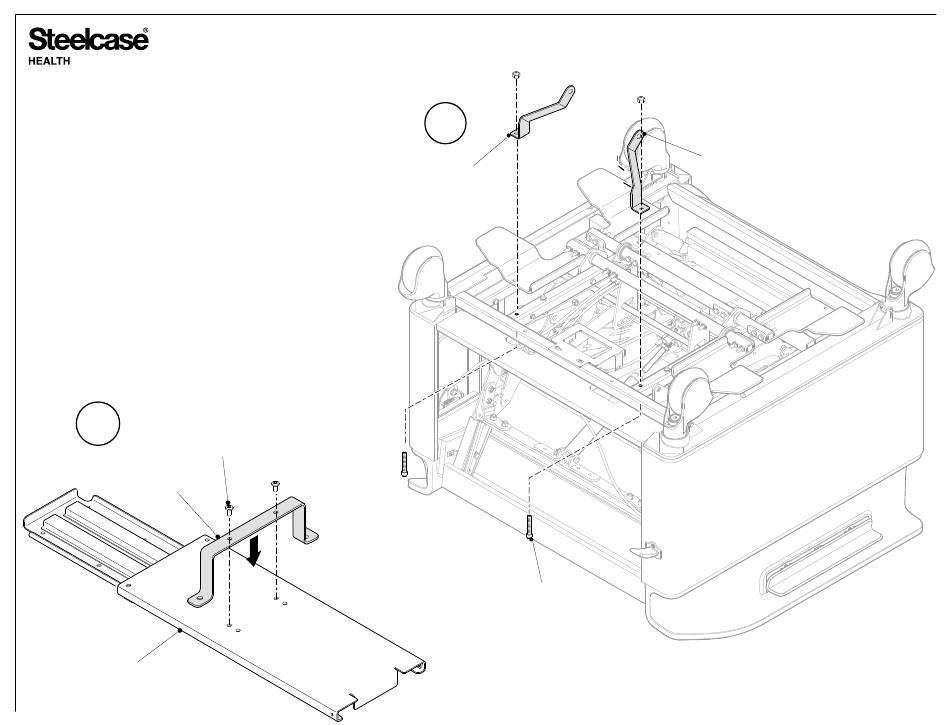

Foot Tray Installation
1.
Attach rear brackets to chassis.
2.
Install front bracket to main slide
frame with 1/4-20 x 1/2" button head
cap screws.
2
1/4-20 x 1/2" BUTTON
HEAD CAP SCREW
FRONT
BRACKET
MAIN SLIDE
1
REAR MOUNT
BRACKET
1/4-20 x 1/2" BUTTON
HEAD CAP SCREW
REAR MOUNT
BRACKET
Page 2 of 4
939502131 Rev C
