Sun Oracle Netra SPARC T5-1B Installation Manual page 30

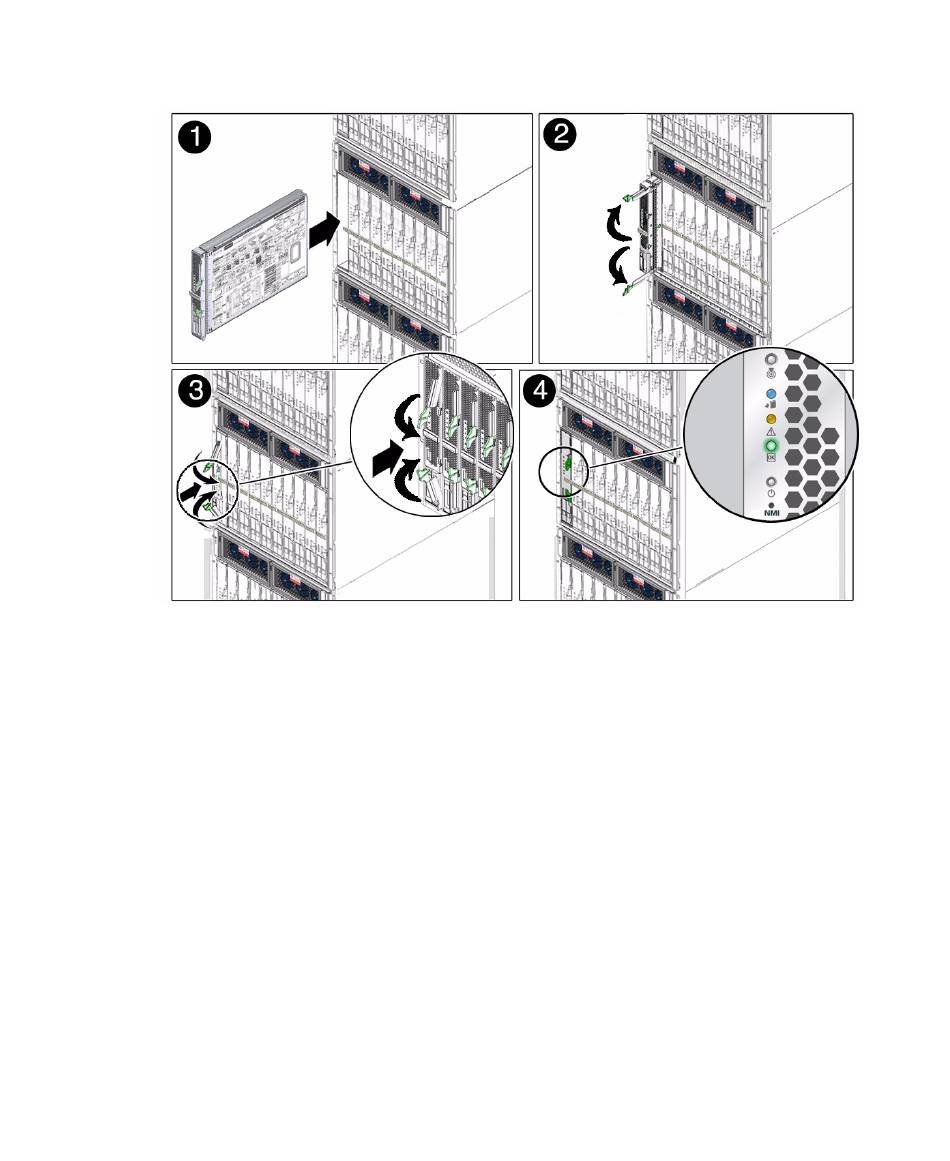

7. Use both hands to position the server module vertically with the ejector arms on
the right (panel 1).
8. Push the server module into the empty slot until the module extends about 0.5
inch (1.5 cm) from the chassis front (panel 2).
9. Pinch the ejector levers to open them (panel 2).
10. Push the server module into the chassis and close the ejector levers (panels 2
and 3).
11. Monitor status messages when power is applied to the server module (panel 4).
When the server module is plugged in, standby power is supplied to the SP. After
about 10 seconds, the front panel LEDs blink three times, then the green OK LED
blinks for a few minutes. The server module SP generates messages as soon as the
server module is connected to a powered modular system. See
Panel Components" on page
12. Power on the server module.
See
Related Information
"Prepare the Modular System and Server Module" on page 21
■
"Install Optional Components" on page 22
■
24 Netra SPARC T5-1B Server Module Installation Guide • October 2013
"Powering On the Server Module for the First Time" on page
4.
"Front and Rear
27.
