The Desk You Deserve
ASSEMBLY MANUAL

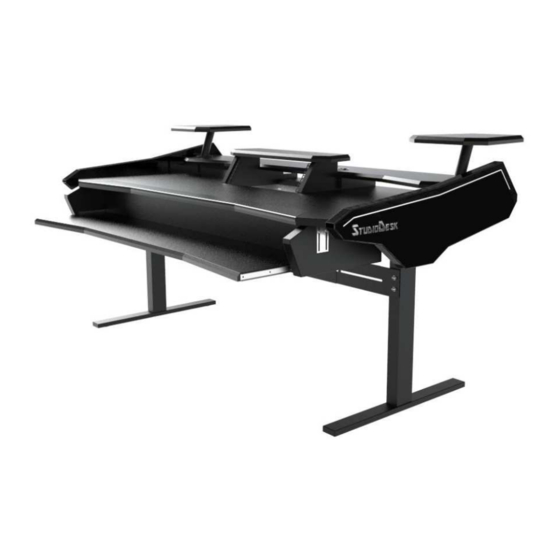

Enterprise Electric Series and Keyboard pull out option
Video Assembly manual is also available.
Search for Enterprise Electric desk - Video assembly manual on the YouTube.
!
NOTE: In order to avoid injury or damages,
please do not try to assemble your desk alone.
The Beat is massive and heavy desk and requires
at least two people to carry out assembly.
Please assemble on soft surface to avoid
scratches to the lacquer.
www.studiodesk.net
Advertisement
Related Manuals for StudioDesk Enterprise Electric Series
Summary of Contents for StudioDesk Enterprise Electric Series
- Page 1 The Desk You Deserve www.studiodesk.net ASSEMBLY MANUAL Enterprise Electric Series and Keyboard pull out option Video Assembly manual is also available. Search for Enterprise Electric desk - Video assembly manual on the YouTube. NOTE: In order to avoid injury or damages, please do not try to assemble your desk alone.
- Page 2 The Desk You Deserve Thank you for making StudioDesk your desk of choice! Before beginning assembly of your desk, let’s get familiar with the parts you have received in your package. Please match the corresponding numbers on this page with the drawings.
- Page 3 Step One Place desk top to the soft surface and install desk base as Shown on the picture below. Please note that large holes in the Middle has to be turned out. Step Two Fix the metal bridge to the base as shown on the right.
- Page 4 Step Five Install the cable management using Washers and M6 with cross head screws. Step Six Install the stabilizing bridge as shown on the picture on the left. Step Seven Install desk glides as shown on the picture. Step Eight Install the LED controller into the carved space as shown left.
- Page 5 OPTIONAL If you purchased optional Keyboard tray follow this step. Install limiter belt as shown below. The belt has function of Step Nine Limiting the keyboard pull out farther than you need. Step Ten Turn desk to the standing position. Minimum 2 people is needed to do this step.
- Page 6 Step Twelve Install metal brackets to the top shelf as shown on the right, using M6 screws with cross head. If you ordered optional rack rails for another 2U rack’s Install them now using M6 Screws. Step Thirteen Carefully place top shelf on the rack dividers and fix it to the dividers with previously Installed metal brackets Step Fourteen...
- Page 7 Step Sixteen Fix sides to the desk surface with M6 screws With cross head as shown on the right. Step Seventeen Fix sides to the desk surface with M6 screws Also from the bottom side as shown on the left. Step Eighteen Inside rack shelf by pushing it on The wooden dowels.
- Page 8 Step Twenty one Install cable inlay on the top Shelf. Use rubber hammer if needed. Step Twenty one Install Shelf holder to the speaker shelf using screws for wood 4x20. Step Twenty two Fix top shelf holder over metal plate by screwing screw with the plastic head into the holder.
- Page 9 Step Twenty four Screw vertical board to the keyboard Desk board using Confirmat screws. Leave middle screws unscrewed. Step Twenty five Install adjustable brackets to the sides as shown on the right on the both sides. Measure your keyboard height before fixing It to the desk. Fix all brackets on the same level according to your needs.
